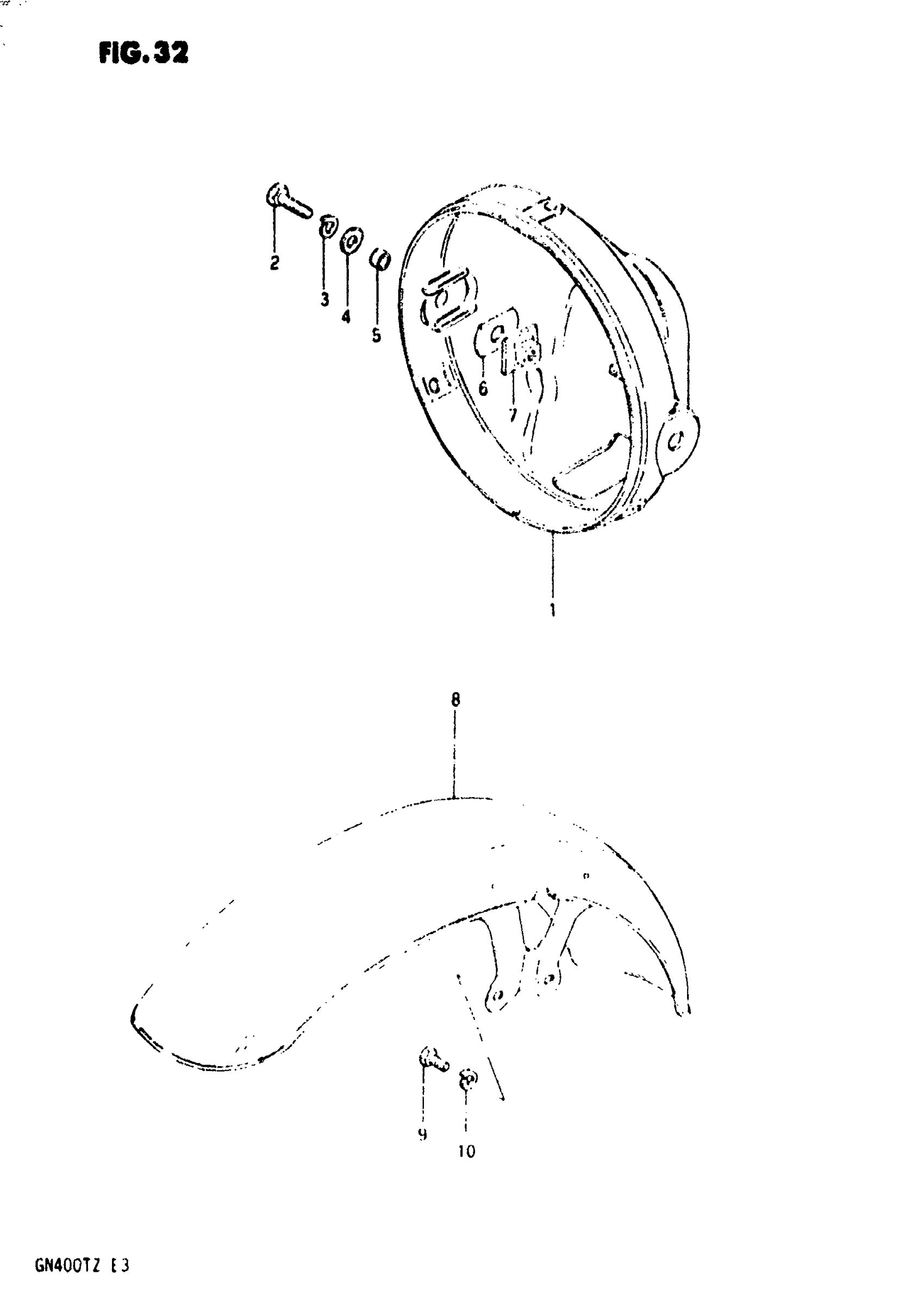

Suzuki GN400T (1982) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description

Price

1

HOUSING, HEAD L This part replaces 51811-33200.

51811-15E01

Unavailable

2

BOLT

01204-08257

$1.98

3

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

4

WASHER This part replaces 08322-11088.

08322-01087

$1.86

5

SPACER This part replaces 09180-08030.

09180-08187

$2.67

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.52

7

PLATE

51860-45000

$5.00

8

FENDER, FRONT This part replaces 53110-49112.

53110-45311

Unavailable

9

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83
