Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 7 This part replaces 44300-37271.

44300-22D03

$79.33

2

O RING, LEVER This part replaces 44353-32470.

44353-12C01

$7.44

3

O-RING This part replaces 44346-28070.

44346-28071

$2.40

4

SCREW

44343-32470

Unavailable

5

CUP

44347-28071

$8.98

6

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$5.05

7

SPRING

44357-32470

$2.21

8

BOLT This part replaces 09128-06006.

09128-06057

$1.65

9

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

10

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$15.32

11

CLIP

09401-10401

$1.49

12

SPRING This part replaces 09440-13018.

09440-13043

$6.04

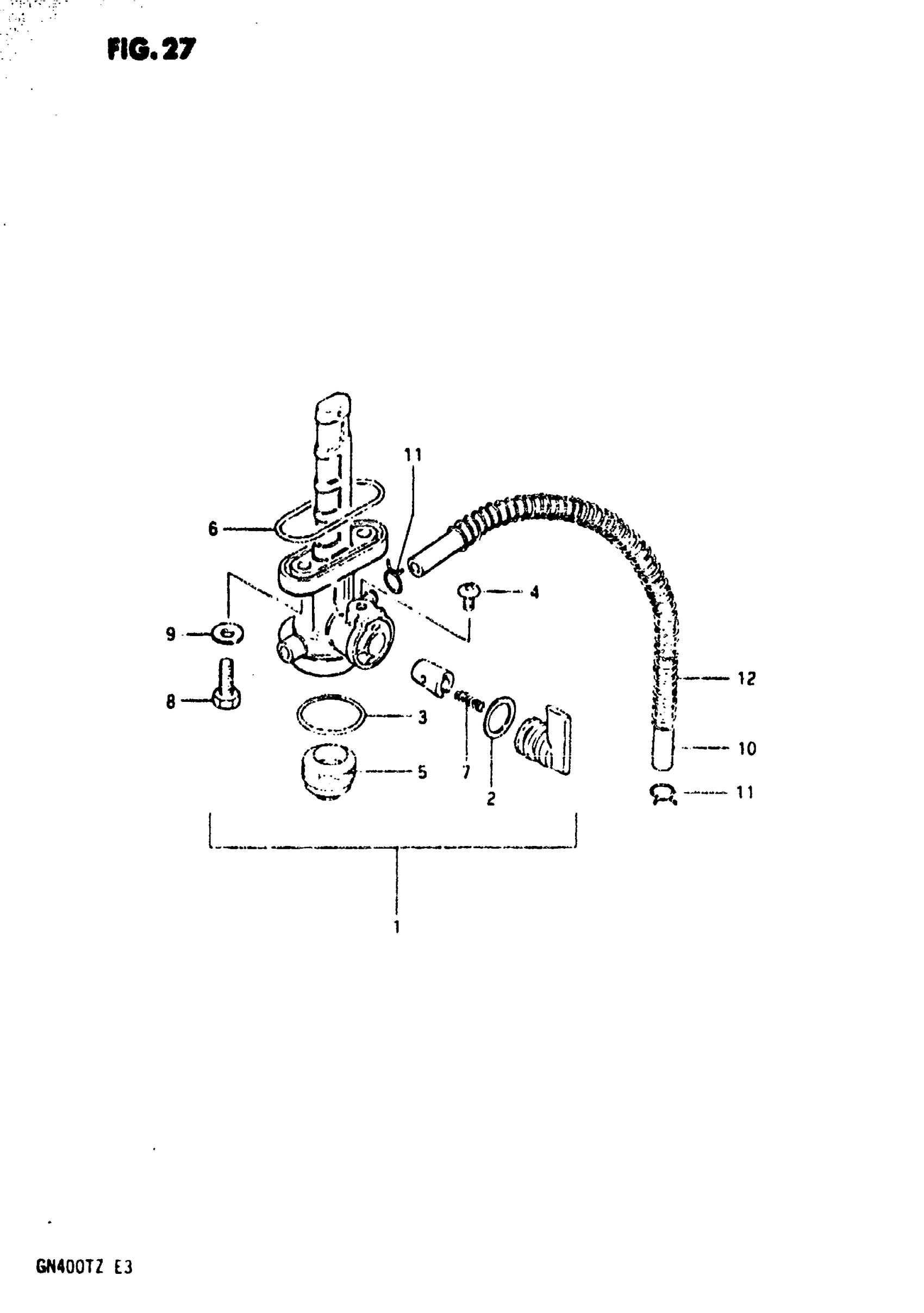

Suzuki GN400T (1982) FUEL COCK Diagram
