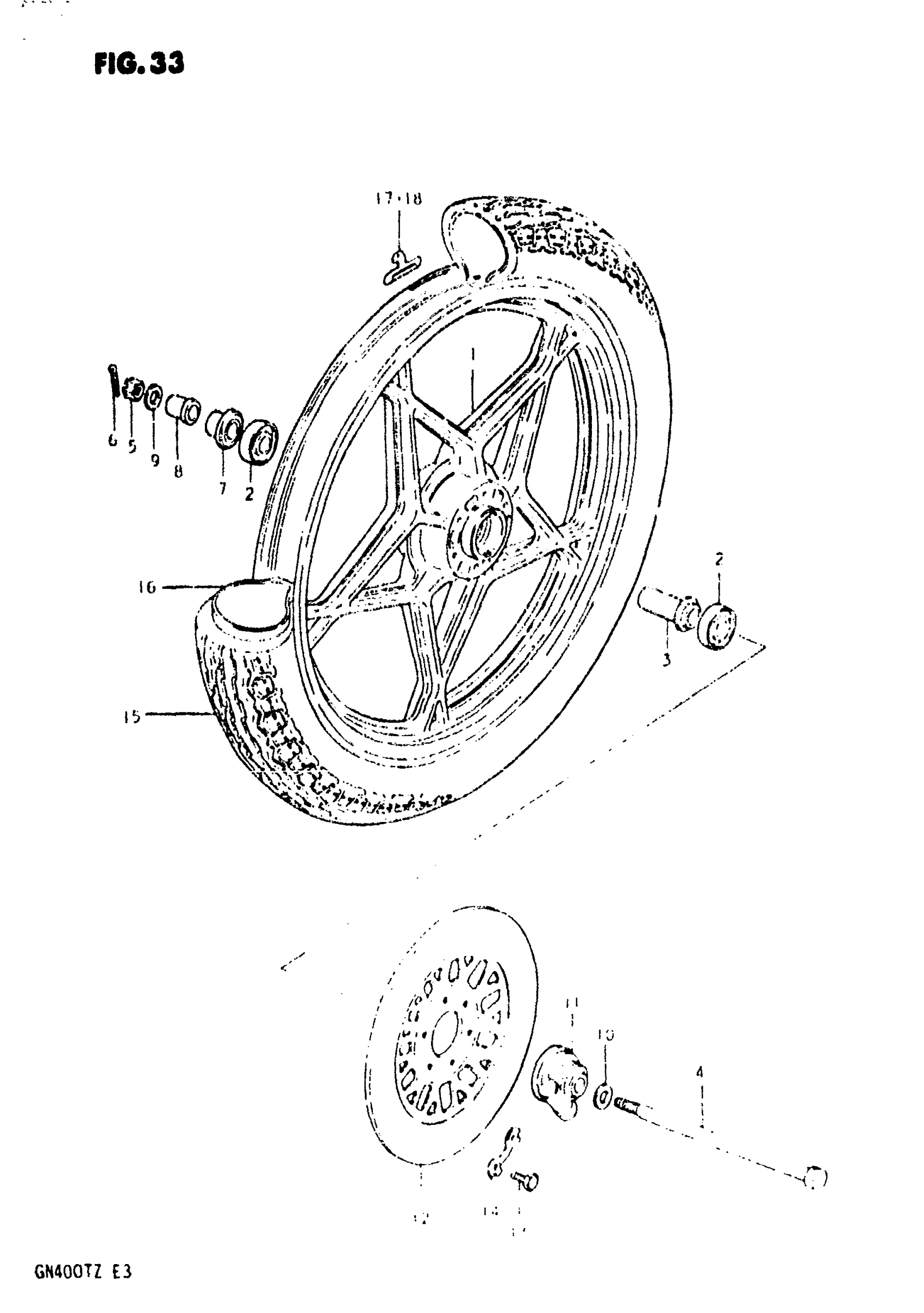

Suzuki GN400T (1982) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (185-19)

54111-37350-13T

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-18400

$20.45

4

AXLE, FRONT

54711-49000

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18402

Unavailable

8

SPACER, FRONT AXLE RH

54741-49101

Unavailable

9

WASHER This part replaces 08322-21128.

08322-01127

$1.84

10

WASHER

09160-15002

$1.91

11

BOX ASSY,SPEEDO This part replaces 54600-37311.

54600-49101

$105.57

12

DISK, FRONT BRAKE

59211-45200

Unavailable

13

BOLT, DISK

09100-08140

$2.10

14

WASHER

09169-08016

$2.41

15

TIRE, FRONT (3.60S19) | IRC This part replaces 55100-44215.

55100-44210

Unavailable

15

TIRE, FRONT (3.60S-19) | BS

55100-44230

Unavailable

16

TUBE, INNER (3.60-19)

55200-44220

Unavailable

17

BALANCER, WHEEL NO.2 | (0~3) This part replaces 55411-45100.

55412-17G00

$7.05

18

BALANCER (30G) | (0~3)

55412-45100

Unavailable
