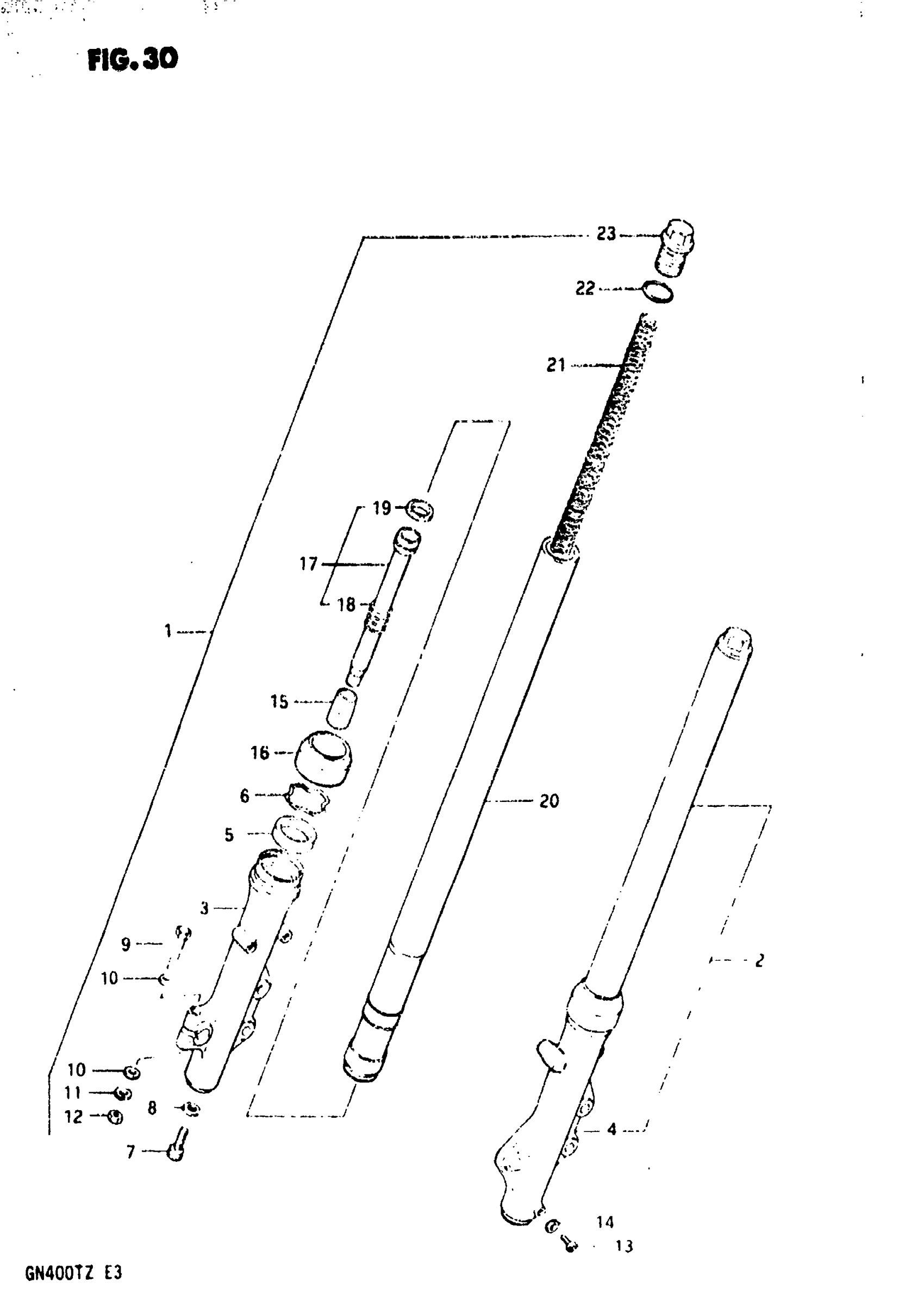

Suzuki GN400T (1982) FRONT FORK Diagram

#

Description
Price

1

DUMPER ASSY, RH

51103-37320

Unavailable

2

DUMPER ASSY, LH | Includes Item(s) 3 - 23

51104-37320

Unavailable

3

OUTER TUBE, RH

51130-37300

Unavailable

4

OUTER TUBE, LH

51140-37300

Unavailable

5

SEAL, OIL This part replaces 51153-45420.

51153-40A00

Unavailable

6

RING, OIL SEAL STOPPER

51156-30400

Unavailable

7

BOLT

51147-16510

$4.34

8

GASKET

51148-41310

$2.26

9

BOLT This part replaces 01107-08508.

01500-08507

$3.05

10

WASHER This part replaces 08322-21088.

08322-01087

$2.13

11

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

12

NUT This part replaces 08310-12088.

08310-00087

$2.13

13

SCREW This part replaces 02112-04088.

02112-04087

$1.49

14

GASKET

51183-03010

$2.07

15

PIECE, OIL LOCK

51195-49071

$21.43

16

DUST SEAL

51173-45420

Unavailable

17

CYLINDER

51146-37300

Unavailable

18

SPRING

51177-37300

Unavailable

19

RING, PISTON

51196-37300

Unavailable

20

INNER TUBE

51110-37320

Unavailable

21

SPRING

51171-37320

Unavailable

22

O RING

51181-18510

Unavailable

23

CAP

51351-45420

Unavailable
