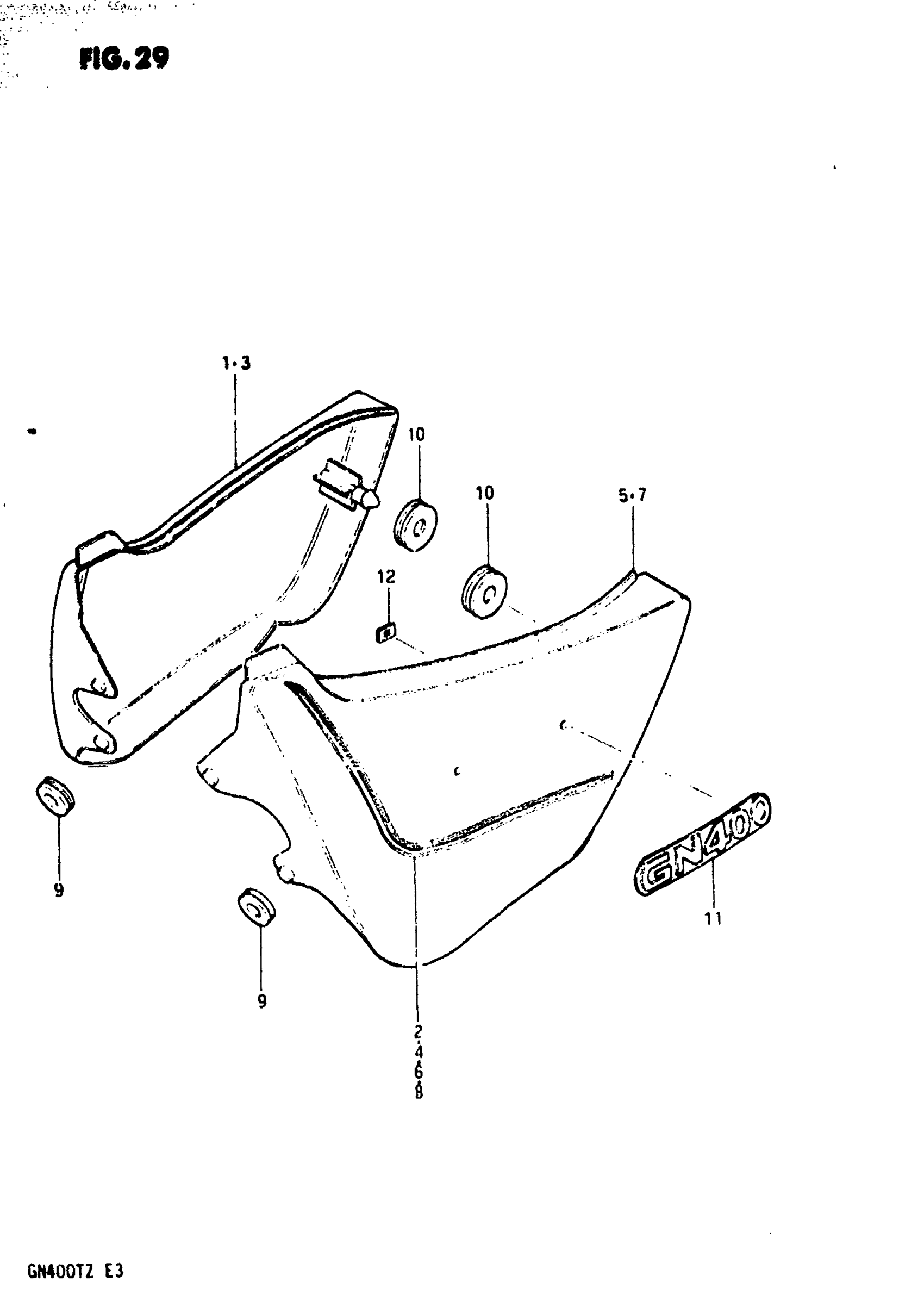

Suzuki GN400T (1982) FRAME COVER Diagram

#

Description

Price

1

COVER,FRAME,RH This part replaces 47111-37330-019.

47111-37301

Unavailable

2

TAPE SET, RH

68136-37330-70G

Unavailable

3

COVER,FRAME,RH This part replaces 47111-37330-00J.

47111-37301

Unavailable

4

TAPE SET, RH

68136-37330-81G

Unavailable

5

COVER, FRAME LH (BLACK)

47211-37330-019

Unavailable

6

TAPE SET, LH

68146-37330-70G

Unavailable

7

COVER, FRAME LH (MAROON)

47211-37330-00J

Unavailable

8

TAPE SET, LH

68146-37330-81G

Unavailable

9

CUSHION, FRONT

09320-09002

$1.98

10

CUSHION, REAR

09320-08018

$3.04

11

EMBLEM

68131-37370

Unavailable

12

NUT

09148-03002

$2.15
