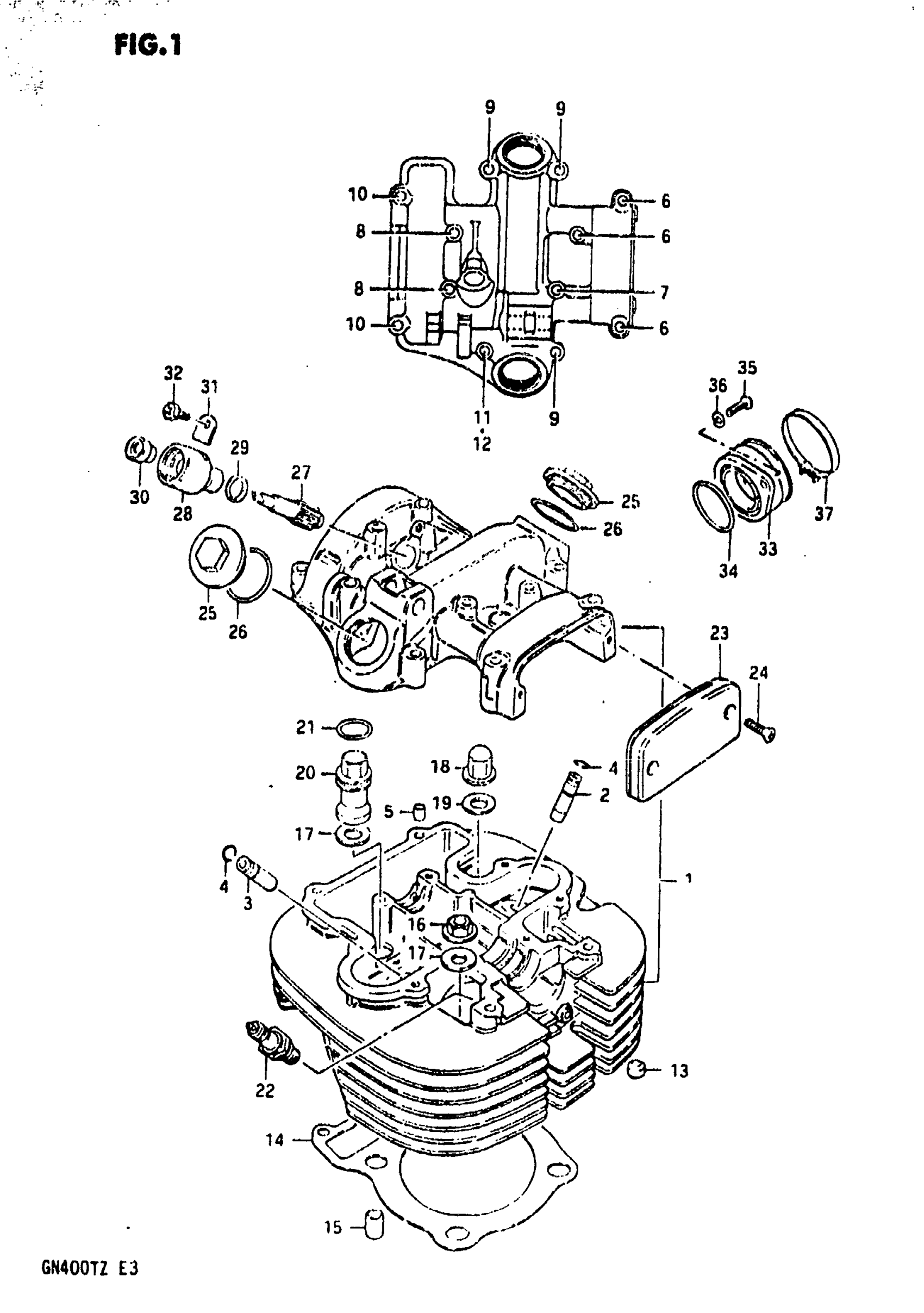

Suzuki GN400T (1982) CYLINDER HEAD Diagram

CYLINDER HEAD SET | Includes Item(s) 2 - 8

11100-37110

Unavailable

GUIDE, INTAKE VALVE

11115-45740

$40.73

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

RING

09381-10003

$2.47

PIN

09206-08001

$1.78

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

BOLT This part replaces 01517-06558.

01550-06557

$3.30

BOLT This part replaces 01517-06658.

01550-06657

$4.17

BOLT This part replaces 01517-06358.

01550-06357

$2.77

BOLT (6X125)

09103-06033

$3.91

BOLT This part replaces 01517-06608.

01550-06607

$4.17

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.25

GASKET

11141-37101

Unavailable

PIN This part replaces 09206-13001.

04211-13189

$2.19

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

WASHER

09160-10039

$2.26

NUT

09159-10026

$6.20

GASKET This part replaces 09168-10019.

09168-10017

$3.04

SEAL NUT

11145-32400

Unavailable

O RING

09280-18004

$5.18

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

CAP, CYLINDER HEAD COVER

11174-37110

Unavailable

SCREW This part replaces 02132-05168.

02122-05167

$2.47

CAP INSPECTION This part replaces 11175-37110.

11175-18920

$12.20

.O RING (D:3,ID:29.5)

09280-30001

$1.72

GEAR TACHO DRVN This part replaces 26431-47002.

26431-47003

Unavailable

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

SEAL BAND

26451-45000

$5.05

OIL SEAL

09289-05002

$8.43

PLATE

26449-33000

$4.35

SCREW

09128-05101

$1.49

PIPE, INTAKE

13110-32410

Unavailable

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

SCREW This part replaces 02112-06168.

02112-06167

$1.49

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

CLAMP

09402-54303

$3.91
