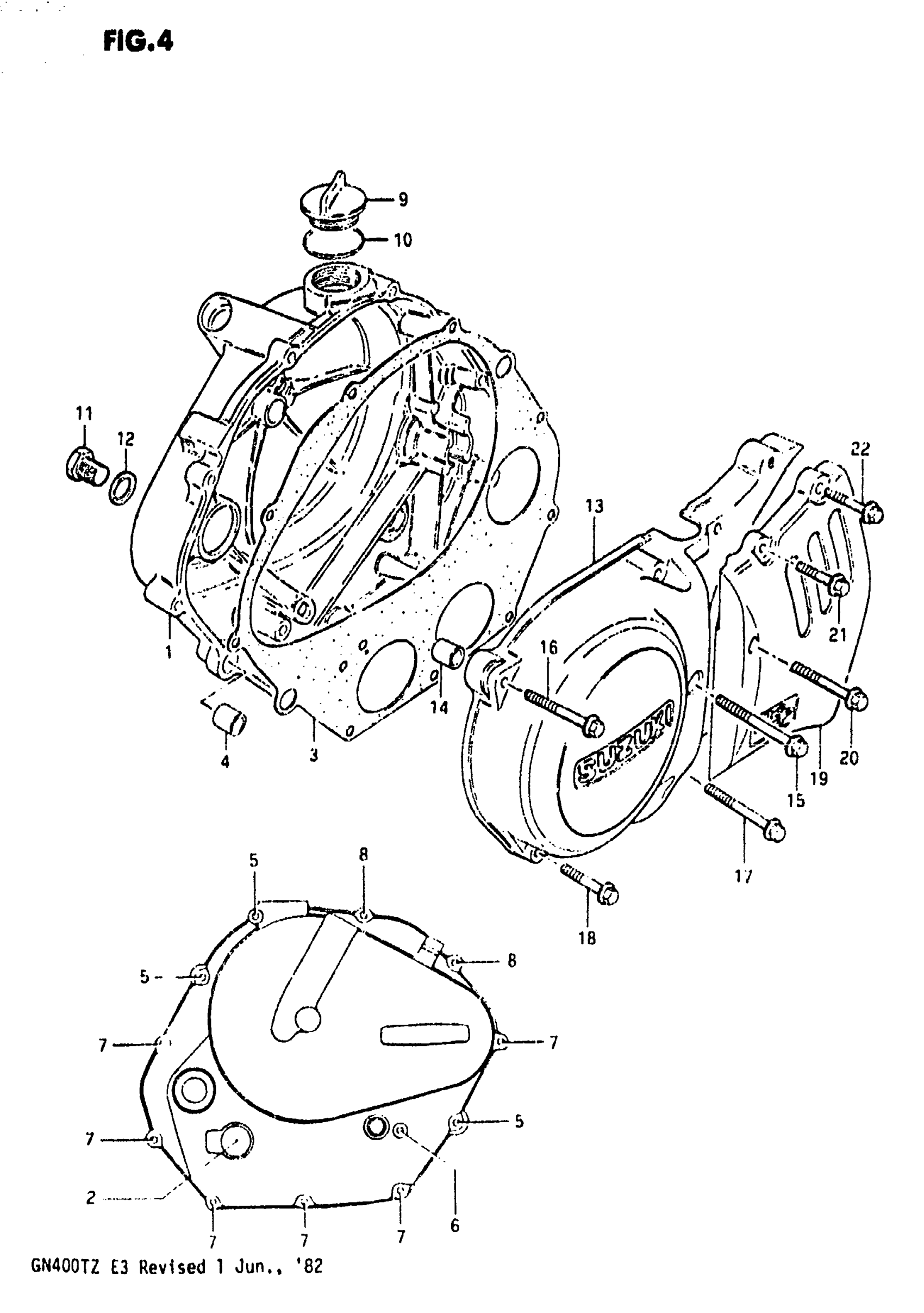

Suzuki GN400T (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-32602

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-32400.

11482-32400-H17

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT This part replaces 01547-06508.

01547-06507

$2.41

6

BOLT This part replaces 01547-06408.

01547-06407

$2.32

7

BOLT This part replaces 01547-06358.

01547-06357

$2.03

8

BOLT This part replaces 01547-06258.

01547-06257

$2.03

9

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

10

GASKET

09280-32005

$1.99

11

PLUG This part replaces 09247-14012.

09247-14026

$3.76

12

GASKET

09168-14004

$1.83

13

COVER, MAGNETO

11351-32601

Unavailable

14

PIN This part replaces 09206-13001.

04211-13189

$2.19

15

BOLT This part replaces 01547-06608.

01547-06607

$3.18

16

BOLT This part replaces 01547-06508.

01547-06507

$2.41

17

BOLT This part replaces 01547-06458.

01547-06457

$2.32

18

BOLT This part replaces 01547-06358.

01547-06357

$2.03

19

COVER, ENGINE SPROCKET

11361-32601

Unavailable

20

BOLT This part replaces 01547-06408.

01547-06407

$2.32

21

BOLT This part replaces 01547-06258.

01547-06257

$2.03

22

BOLT This part replaces 01547-06208.

01547-06207

$2.01
