1981 Suzuki GN400T CAM Shaft - Valve Diagram

← All diagrams

Find the part on the CAM Shaft - Valve diagram for your 1981 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

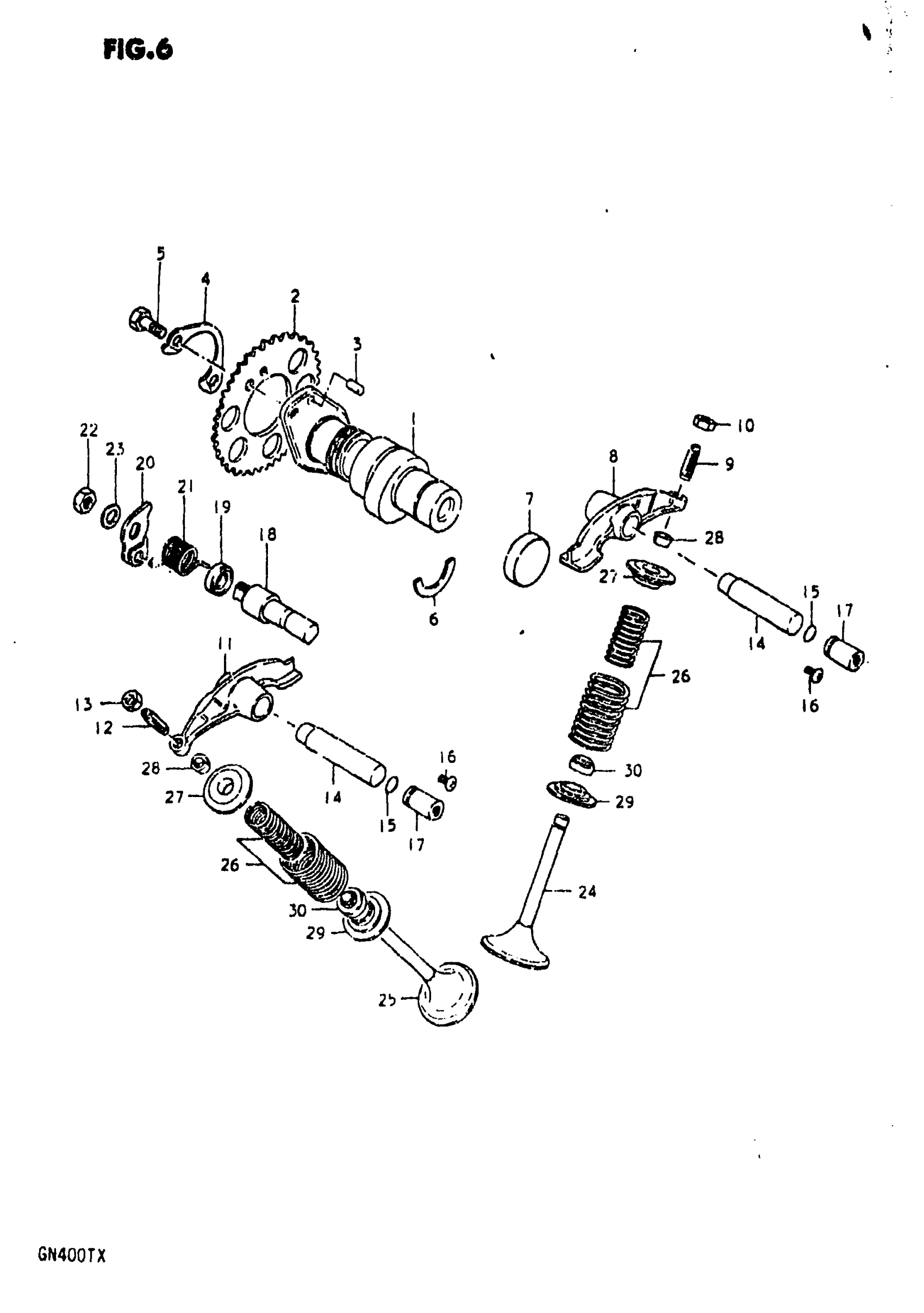

1981 Suzuki GN400T CAM Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT

12711-32411

1
Out of stock

2

SPROCKET (NT:34)

12741-32402

1
Out of stock

3

PIN This part replaces 06211-05103.

04221-05109

1
Out of stock

4

WASHER This part replaces 12747-44000.

12747-44001

1
Out of stock

5

BOLT

09111-06027

2
Out of stock

6

C RING

09390-25003

1
Out of stock

7

PLUG

09241-30003

1
Out of stock

8

ARM, VALVE ROCKER EX. | Includes Item(s) 9 - 10 This part replaces 12840-32410.

12850-37110

1
Out of stock

9

.SCREW, TAPPET ADJUSTING This part replaces 12842-32410.

12842-32411

1
Out of stock

10

.NUT, ADJUSTING SCREW

12843-32400

1
Out of stock

11

ARM, VALVE ROCKER EX. | Includes Item(s) 12 - 13

12850-37110

1
Out of stock

12

.SCREW, TAPPET ADJUSTING This part replaces 12842-32410.

12842-32411

1
Out of stock

13

.NUT, ADJUSTING SCREW

12843-32400

1
Out of stock

14

SHAFT, ROCKER ARM

12861-32400

2
Out of stock

15

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

2
Out of stock

16

SCREW

02142-05107

2
Out of stock

17

CAP, SHAFT

12862-32401

2
Out of stock

18

SHAFT, DECOMP RH This part replaces 12941-37100.

12941-37103

1
Out of stock

19

SEAL, OIL This part replaces 09284-10005.

09282-10014

1
Out of stock

20

LEVER, SHAFT

12942-37110

1
Out of stock

21

SPRING This part replaces 09448-17015.

09448-17014

1
Out of stock

22

1

$1.93

In stock

23

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

24

VALVE,INTAKE This part replaces 12911-32430.

12911-32431

1
Out of stock

25

VALVE,EXHAUST This part replaces 12912-32430.

12912-32431

1
Out of stock

26

VALVE SPRING SET This part replaces 12900-32810.

12920-32420

2
Out of stock

27

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

2
Out of stock

28

COTTER, VALVE

12932-45010

4
Out of stock

29

SEAT, SPRING

12933-45001

2
Out of stock

30

OIL SEAL

09289-07002

2
Out of stock
