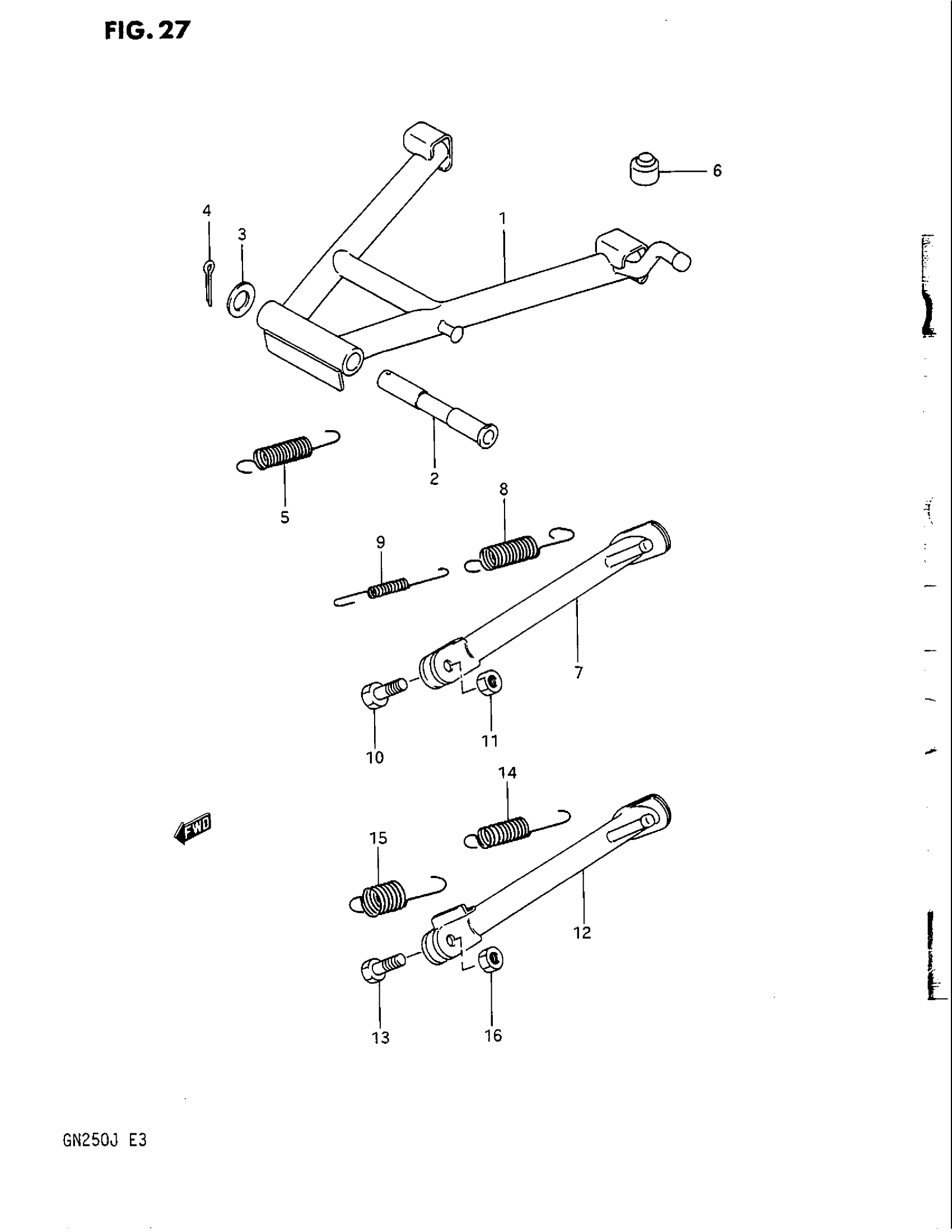

Suzuki GN250 (1988) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-38301

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 42211-36501.

42211-49F00

Unavailable

3

WASHER

09160-16001

Unavailable

4

PIN This part replaces 04111-30308.

04111-3030A

$1.49

5

SPRING, CENTER This part replaces 09443-18006.

09443-18006-XC0

$7.82

6

CUSHION

09321-10001

$2.61

7

STAND, PROP | MODEL F

42310-38300

Unavailable

8

SPRING | MODEL F

09443-14028

Unavailable

9

SPRING | MODEL F This part replaces 09443-06058.

09443-06088

$4.86

10

BOLT (10X30) | MODEL F

09100-10067

$2.61

11

NUT | MODEL F This part replaces 08310-22106.

08310-0010A

$1.84

12

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 42310-38350.

42310-38352

Unavailable

13

BOLT | MODEL J

09111-10047

$4.11

14

SPRING, INNER | MODEL J

09443-12025

Unavailable

15

SPRING, OUTER | MODEL J

09443-19006

Unavailable

16

NUT | MODEL J This part replaces 08310-22106.

08310-0010A

$1.84
