1988 Suzuki GN250 Rear Wheel Diagram

← All diagrams

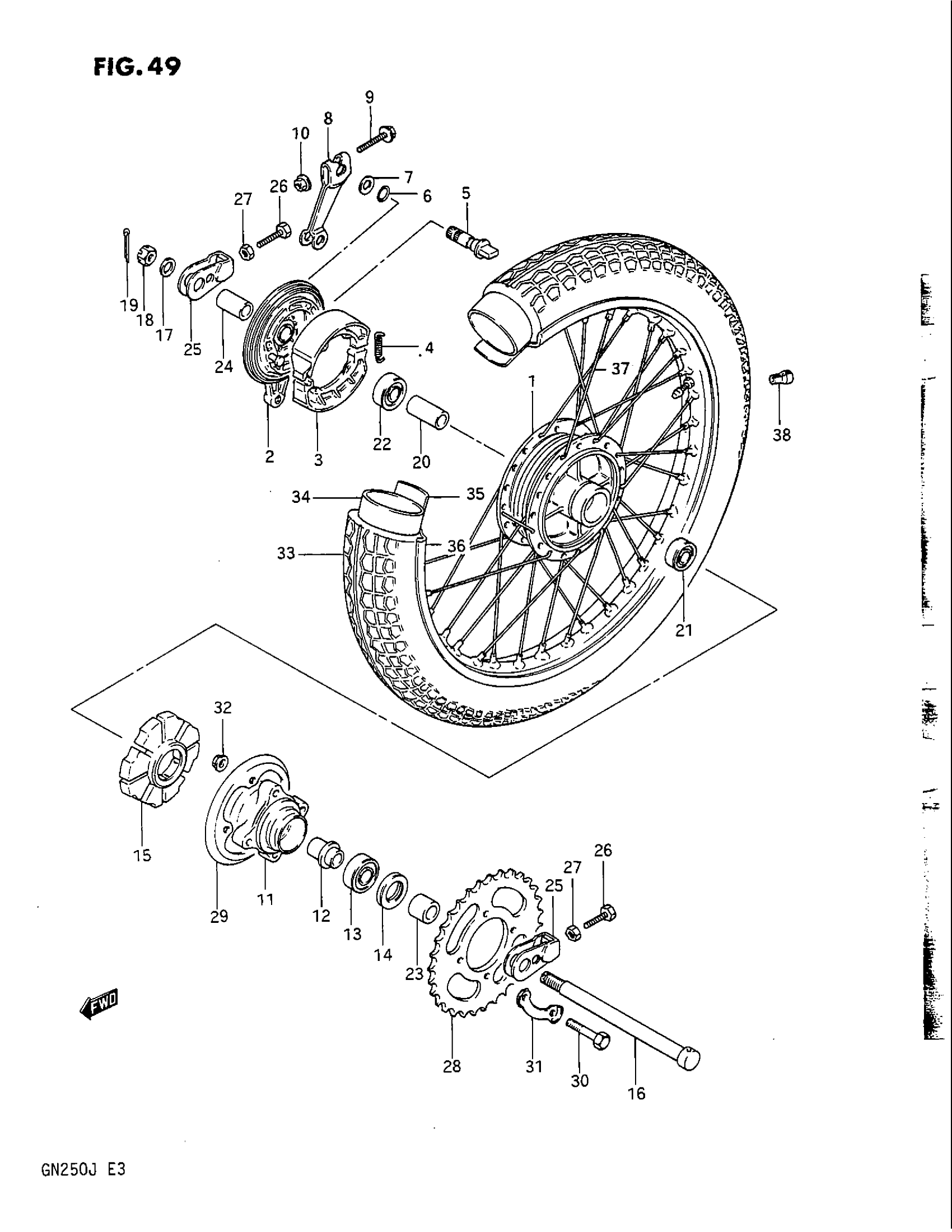

Find the part on the Rear Wheel diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, WHEEL

64110-07604

1
Out of stock

2

PANEL, REAR BRAKE ANCHOR This part replaces 64210-39103.

64210-39104

1
Out of stock

3

SHOE SET, BRAKE | MODEL F This part replaces 54410-07003.

54401-07810

2
Out of stock

3

SHOE SET, BRAKE | MODEL J This part replaces 54410-07020.

54401-07820

2
Out of stock

4

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

5

CAM, BRAKE This part replaces 54441-29304.

54441-29305

1
Out of stock

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

1
Out of stock

7

WASHER This part replaces 09160-14001.

09160-14055

1
Out of stock

8

LEVER, BRAKE CAM

64451-30501

1
Out of stock

9

BOLT This part replaces 01517-06408.

01550-06407

1
Out of stock

10

NUT This part replaces 09159-06017.

08319-31067

1
Out of stock

11

DRUM, SPROCKET MOUNTING

64610-38300

1
Out of stock

12

RETAINER, MOUNTING DRUM

64733-38300

1
Out of stock

13

BEARING, MOUNTING DRUM

09262-20069

1
Out of stock

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

15

SHOCK ABSORBER, HUB

64651-07001

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 64711-32100.

64711-32101

1
Out of stock

17

WASHER This part replaces 08322-11148.

08322-01147

1
Out of stock

18

NUT

09141-14001

1
Out of stock

19

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

20

SPACER, WHEEL BEARING

09180-15011

1
Out of stock

21

BEARING, WHEEL LH

08143-62027

1
Out of stock

22

BEARING, WHEEL RH

08153-63027

1

$27.55

In stock

23

SPACER, AXLE LH

09180-15061

1
Out of stock

24

SPACER, AXLE RH

09180-15060

1
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 61410-38300.

61410-38301

2
Out of stock

26

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

27

2

$1.93

In stock

28

SPROCKET, REAR (NT:41) This part replaces 64511-38300.

64511-38301

1
Out of stock

29

GUIDE

64618-38300

1
Out of stock

30

BOLT 10X 40 This part replaces 09100-10096.

09100-10184

4
Out of stock

31

WASHER

09169-10014

2
Out of stock

32

NUT

08319-31107

4
Out of stock

33

TIRE, REAR (4,60S16) BS This part replaces 65100-38310.

65100-38330

1
Out of stock

33

TIRE, REAR (4,60S16) BS

65100-38330

1
Out of stock

34

TUBE, INNER REAR This part replaces 65200-37320.

65200-37300

1
Out of stock

35

PROTECTOR

65261-37320

1
Out of stock

36

RIM, WHEEL

65311-38300

1
Out of stock

37

SPOKE ASSY RR W This part replaces 65320-05300.

65320-38301

1
Out of stock

38

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

1
Out of stock

38

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

1
Out of stock
