1988 Suzuki GN250 Front Wheel Diagram

← All diagrams

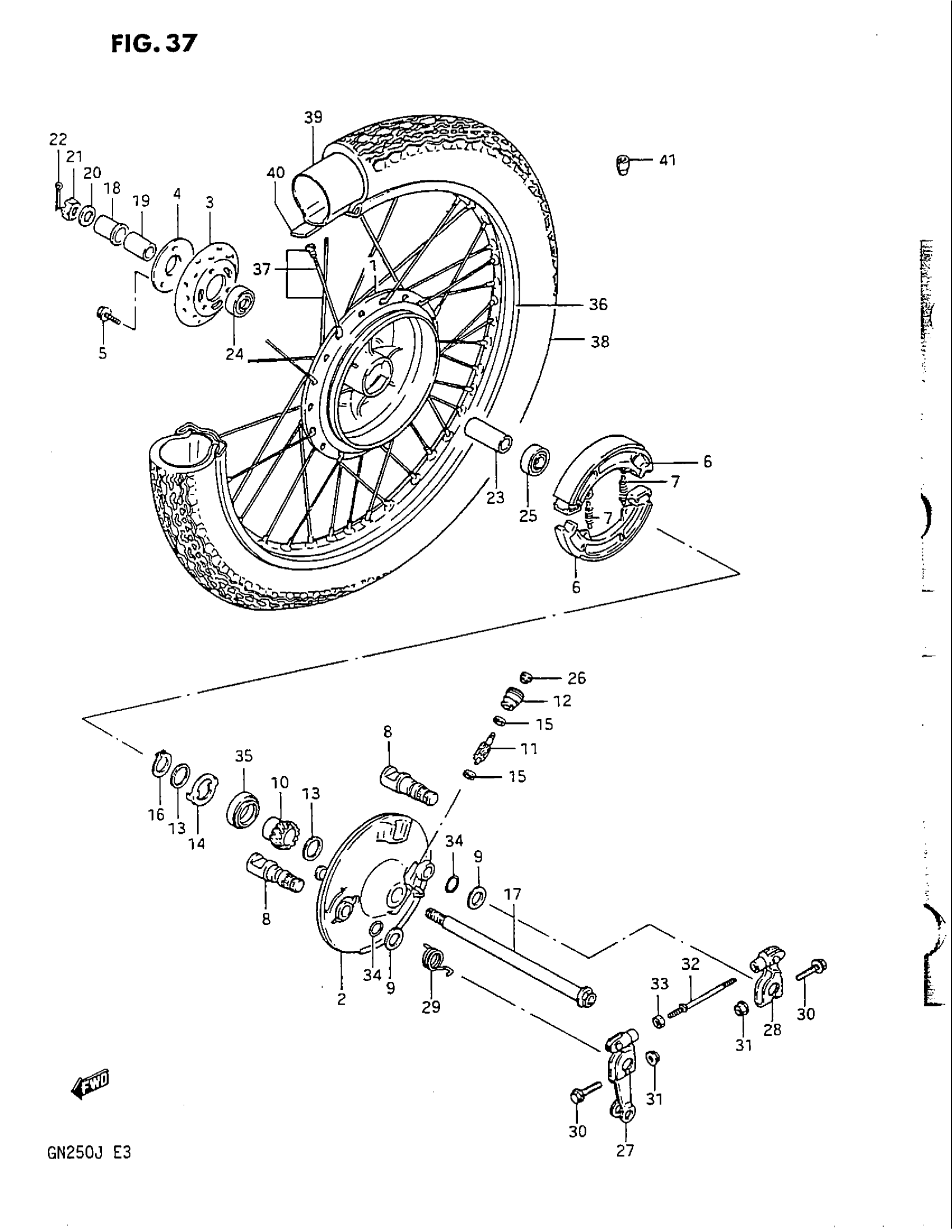

Find the part on the Front Wheel diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, WHEEL

54110-38300

1
Out of stock

2

PANEL

54210-38300

1
Out of stock

3

HUB FLANGE

54112-38300

1
Out of stock

4

HOLDER, HUB

54151-38300

1
Out of stock

5

BOLT This part replaces 01517-06168.

01550-06167

3
Out of stock

6

SHOE SET,BRAKE This part replaces 54410-38300.

54400-38820

2
Out of stock

7

SPRING

55420-41100

2
Out of stock

8

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

2
Out of stock

9

WASHER This part replaces 09160-15001.

09160-15048

2
Out of stock

10

GEAR, SPEEDOMETER (NT:24)

54611-36001

1
Out of stock

11

PINION, SPEEDOMETER (NT:9)

54621-11000

1
Out of stock

12

BUSH

54632-49200

1
Out of stock

13

THRUST WASHER

09160-22001

2
Out of stock

14

DRIVER

54660-11031

1
Out of stock

15

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

2
Out of stock

16

CIRCLIP This part replaces 08331-11229.

08331-31229

1
Out of stock

17

AXLE, FRONT

54711-38300

1
Out of stock

18

SPACER

54751-38300

1
Out of stock

19

SPACER, RH

09180-12063

1
Out of stock

20

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

21

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

22

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

23

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

1
Out of stock

24

BEARING This part replaces 08123-62017.

08133-62017

1
Out of stock

25

BEARING This part replaces 08143-62017.

08143-6201B

1
Out of stock

26

OIL SEAL

09289-06001

1
Out of stock

27

LEVER, BRAKE CAM NO.1

54400-38300

1
Out of stock

28

LEVER, BRAKE CAM NO.2

54500-38300

1
Out of stock

29

SPRING

09448-32010

1
Out of stock

30

BOLT This part replaces 01517-06307.

01550-06307

2
Out of stock

31

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock

32

ROD, BRAKE CAM

54471-38300

1
Out of stock

33

.NUT This part replaces 08310-22067.

08310-00067

1
Out of stock

34

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

2
Out of stock

35

SEAL,OIL(26X38X This part replaces 09285-26003.

09285-26005

1
Out of stock

36

RIM, WHEEL (160X18)

55311-38300

1
Out of stock

37

SPOKE ASSY

55320-38300

1
Out of stock

38

NO DESCRIPTION AVAILABLE This part replaces 55100-38330.

55100-38331

1
Out of stock

38

NO DESCRIPTION AVAILABLE This part replaces 55100-44010.

55100-38331

1
Out of stock

39

TUBE ASSY,WHEEL This part replaces 55200-11601.

55200-26F01

1
Out of stock

40

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

1
Out of stock

41

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

1
Out of stock

41

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

1
Out of stock
