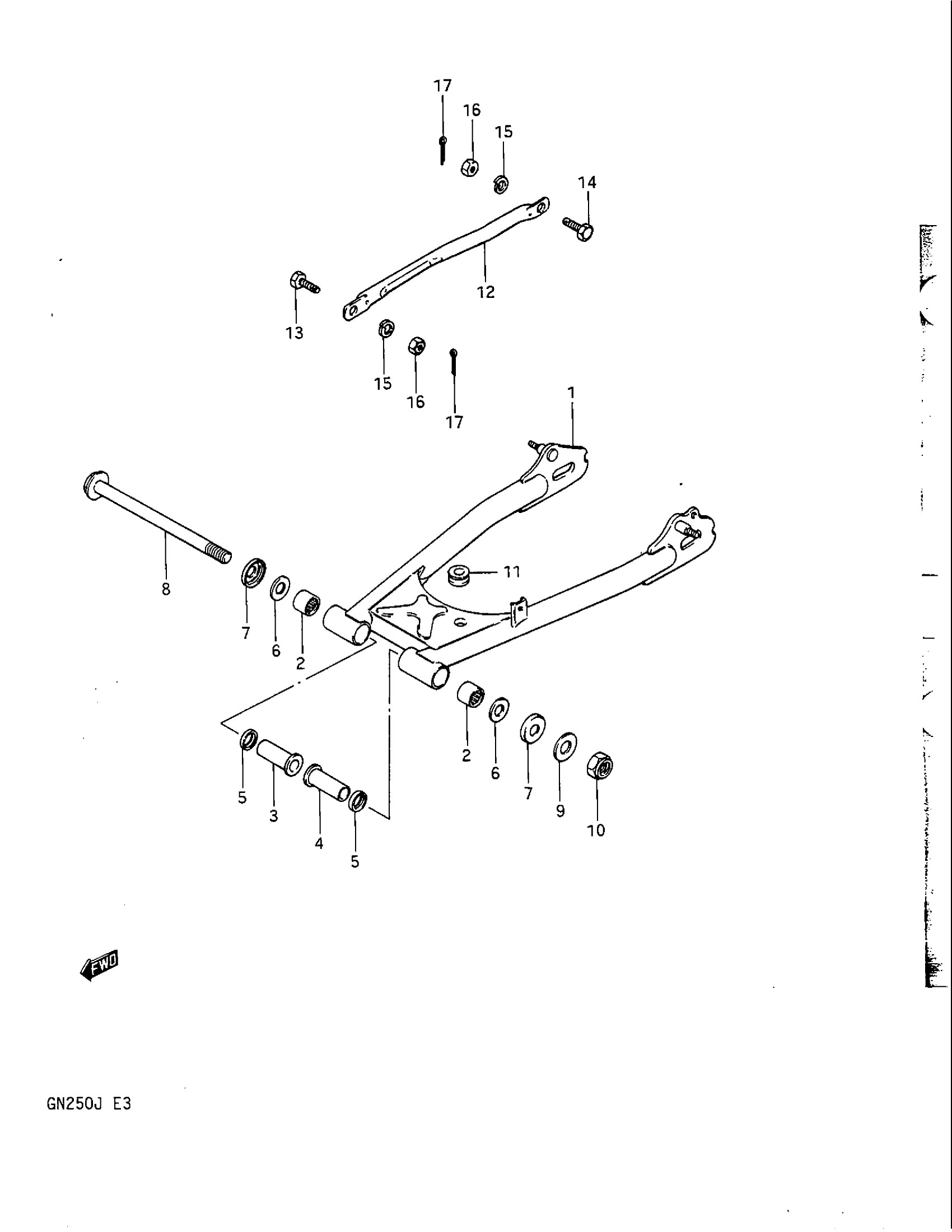

Suzuki GN250 (1988) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET (BLACK) | Includes Item(s) 2

61000-38300-019

Unavailable

2

BEARING

09263-20041

$26.47

3

SPACER, RH

61251-38300

Unavailable

4

SPACER, LH

61252-38300

Unavailable

5

OIL SEAL

09286-20001

$4.32

6

WASHER

08211-15321

Unavailable

7

SEAL,DUST This part replaces 61262-38300.

61262-38301

$7.52

8

SHAFT, PIVOT This part replaces 61211-38300.

61211-38301

Unavailable

9

WASHER This part replaces 08322-11148.

08322-01147

$1.91

10

NUT This part replaces 08319-21148.

08319-2114A

$3.96

11

CUSHION

09320-08020

$3.40

12

TORQUE LINK, REAR

64311-38301-019

Unavailable

13

BOLT, FRONT

09111-08012

$3.78

14

BOLT, REAR

09111-08013

$3.04

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT

09140-08008

$1.49

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
