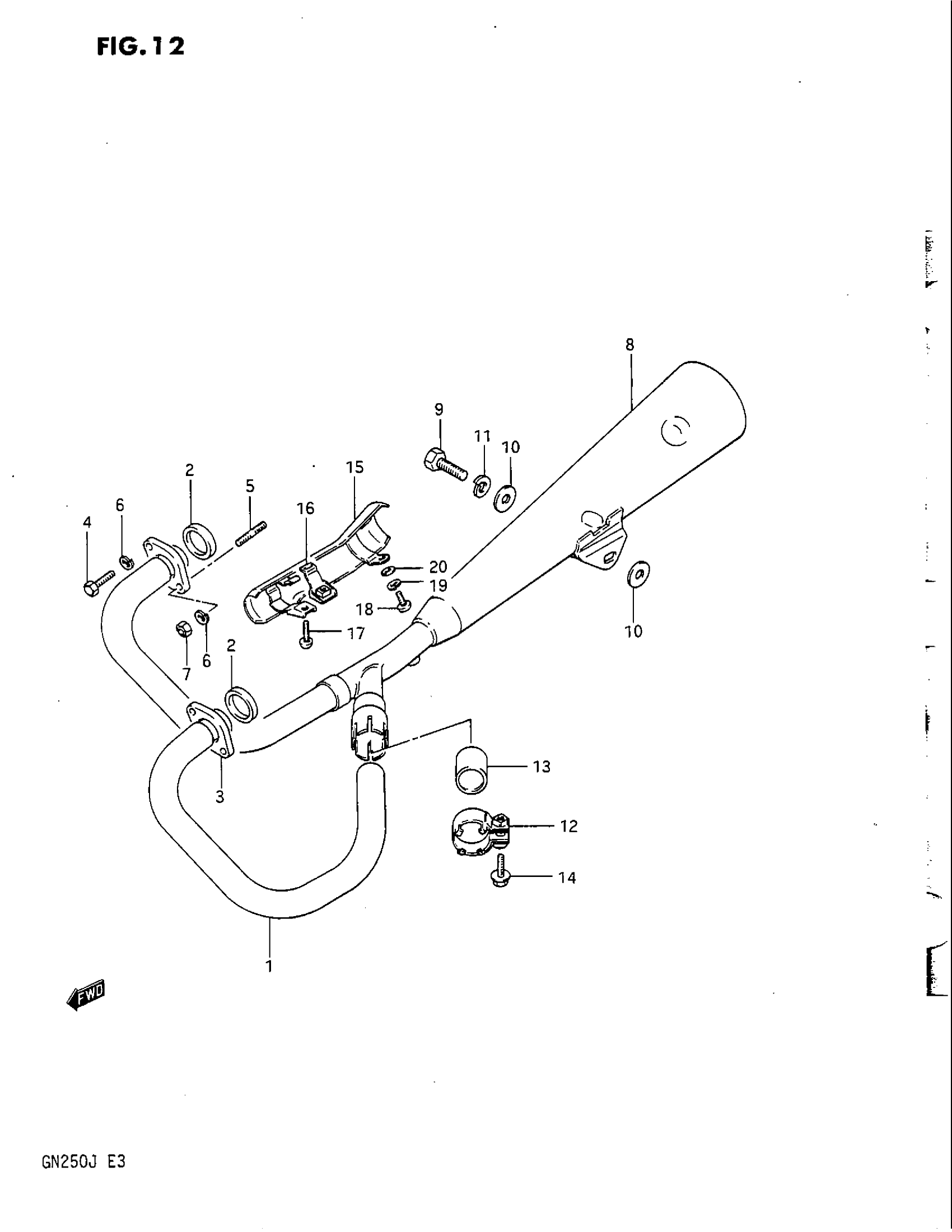

Suzuki GN250 (1988) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14160-38300

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

3

CLAMP

14182-38300

Unavailable

4

BOLT This part replaces 01107-06257.

01500-06257

$1.97

5

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

6

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

7

.NUT This part replaces 08310-11067.

08310-00067

$2.13

8

MUFFLER ASSY | MODEL F This part replaces 14305-38320-H01.

14305-38304-H01

Unavailable

8

MUFFLER ASSY | MODEL J This part replaces 14305-38330-H01.

14305-38304-H01

Unavailable

9

BOLT This part replaces 01107-10258.

01500-10257

$3.85

10

WASHER This part replaces 08322-21108.

08322-01107

$2.15

11

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

12

CLAMP

14459-38300

Unavailable

13

CONNECTOR,MUFFL This part replaces 14771-38300.

14771-38301

$23.28

14

BOLT This part replaces 01107-08307.

01500-08307

$3.04

15

NO DESCRIPTION AVAILABLE This part replaces 14780-38302.

14780-38303

Unavailable

16

CLAMP

14785-38301

$7.37

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

SCREW This part replaces 02112-06108.

02112-06107

$1.49

19

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

20

WASHER This part replaces 08322-21067.

08322-01067

$2.13
