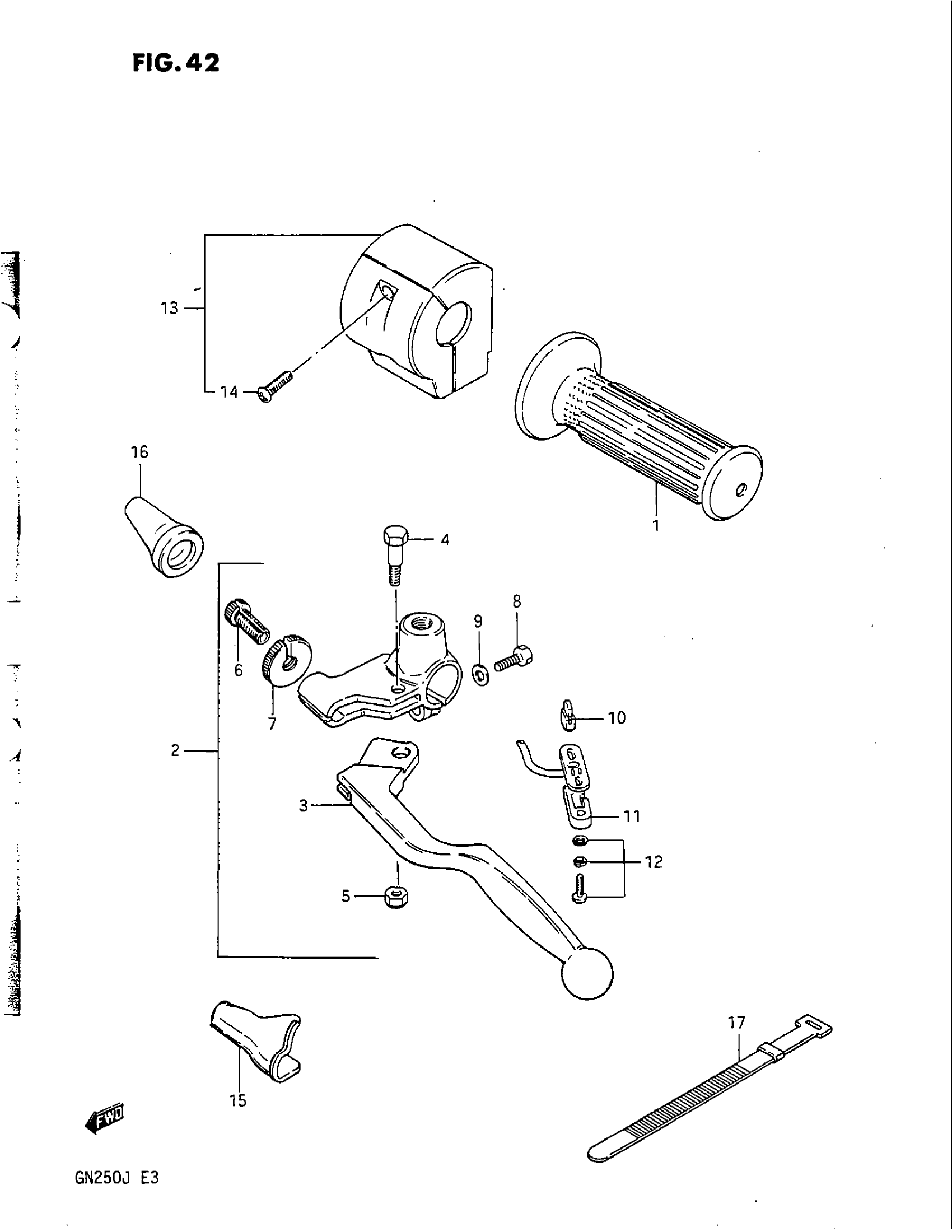

Suzuki GN250 (1988) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

CLUTCH LEVER & SWITCH ASSY | Includes Item(s) 3 - 12

57500-49131

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT

57431-49110

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE

57441-44400

$6.28

7

NUT This part replaces 57442-44400.

57442-11010

$2.79

8

BOLT

01204-06204

$2.72

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

HOLDER

57465-18601

$4.34

11

COVER

57481-33010

$5.84

12

SCREW

57484-49110

$1.98

13

SWITCH ASSY, HANDLE LH | Includes Item(s) 14

37400-44122

Unavailable

14

SCREW This part replaces 02112-05168.

02112-05167

$1.97

15

COVER

57661-31000

$7.25

16

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

17

BAND (L:120)

09407-12402

$3.04
