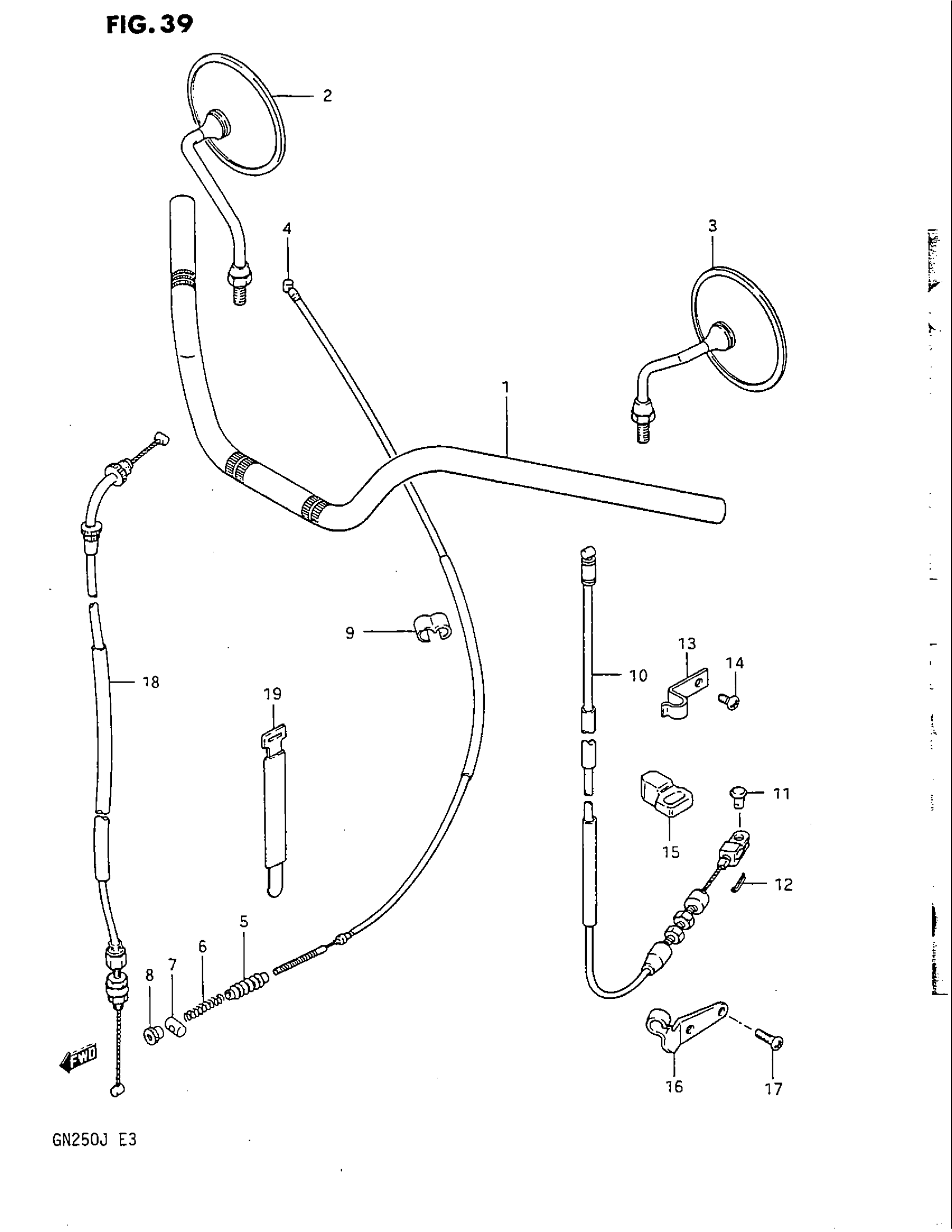

Suzuki GN250 (1988) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-38310.

56110-38311

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-44200.

56500-44202

$69.23

3

MIRROR ASSY,LH This part replaces 56600-44200.

56600-44202

$97.60

4

CABLE ASSY, FRONT BRAKE | MODEL F; Includes Item(s) 5 - 8

58100-38300

Unavailable

5

DUST SEAL

09287-08001

Unavailable

6

SPRING

09440-07007

Unavailable

7

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

8

.NUT This part replaces 09150-06009.

09150-06010

$3.10

9

CLIP

09408-00002

$2.30

10

CABLE ASSY,CLUT This part replaces 58200-38300.

58200-38301

Unavailable

11

PIN

09200-06004

$2.20

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

CLAMP, NO.1

58626-37400

Unavailable

14

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49

15

GUIDE

58621-38300

Unavailable

16

STOPPER, CLUTCH CABLE

58634-38210

$8.42

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84

18

CABLE ASSY, THROTTLE

58300-38302

Unavailable

19

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable
