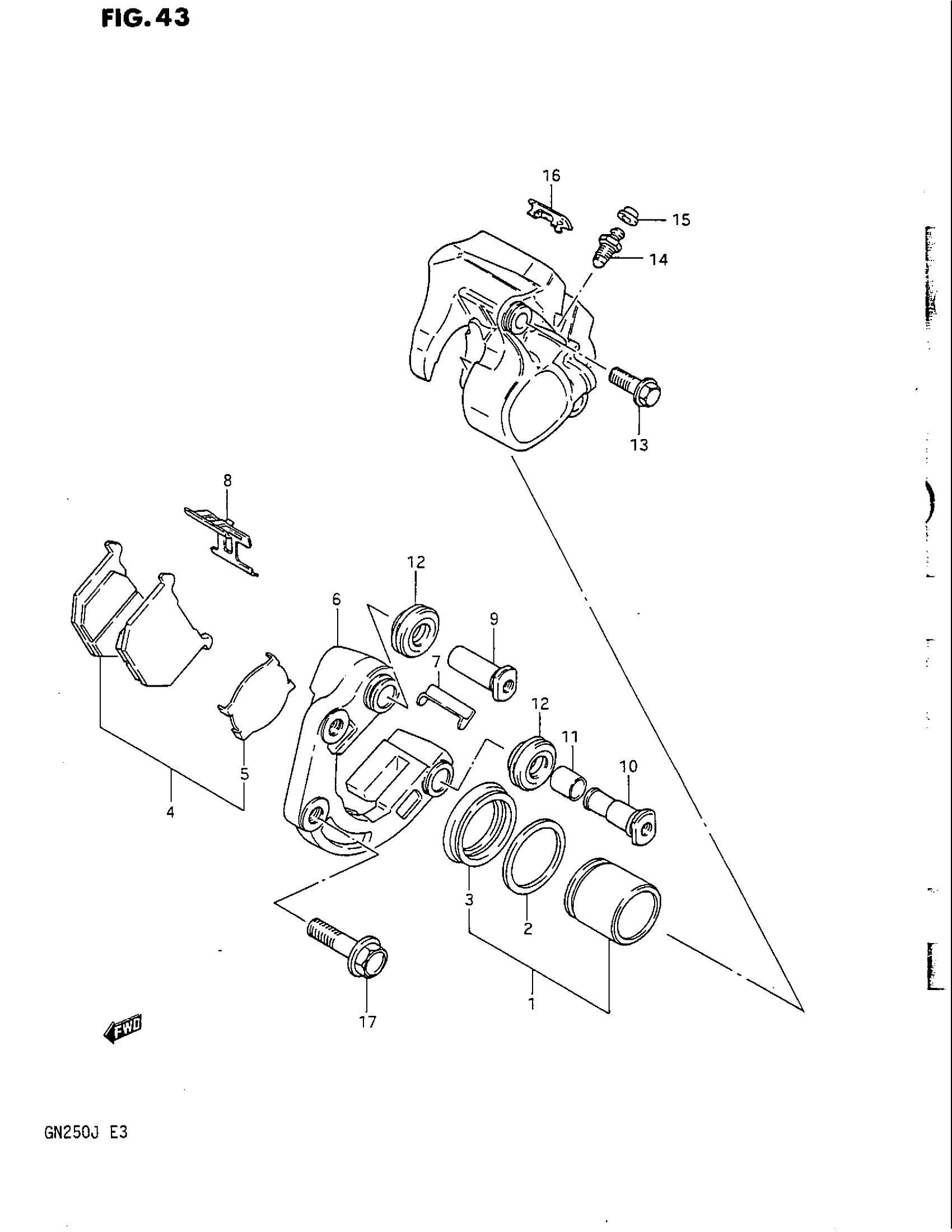

Find the part on the Front Calipers diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Front Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPERS ASSY, FRONT LH | Includes Item(s) 1 - 16

59300-38300

1
Out of stock

1

PISTON SET This part replaces 59301-45820.

59301-45822

1
Out of stock

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

1
Out of stock

3

BOOT, PISTON

59308-45200

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 59330-38300.

59300-38810

2
Out of stock

5

SHIM

59371-45200

1
Out of stock

6

HOLDER SET, CALIPERS

59300-44831

1
Out of stock

7

GUIDE, PAD

59316-45201

2
Out of stock

8

SPRING, PAD

59315-45200

1
Out of stock

9

AXLE, NO.1

59305-45200

1
Out of stock

10

AXLE, NO.2

59306-45200

1
Out of stock

11

BUSH

59313-45200

1
Out of stock

12

BOOT

59312-45200

2
Out of stock

13

BOLT

59314-45201

2
Out of stock

14

BLEEDER

59121-18410

1
Out of stock

15

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

16

COVER

59324-45201

1
Out of stock

17

BOLT (10X40) This part replaces 01517-10408.

01550-10407

2
Out of stock
