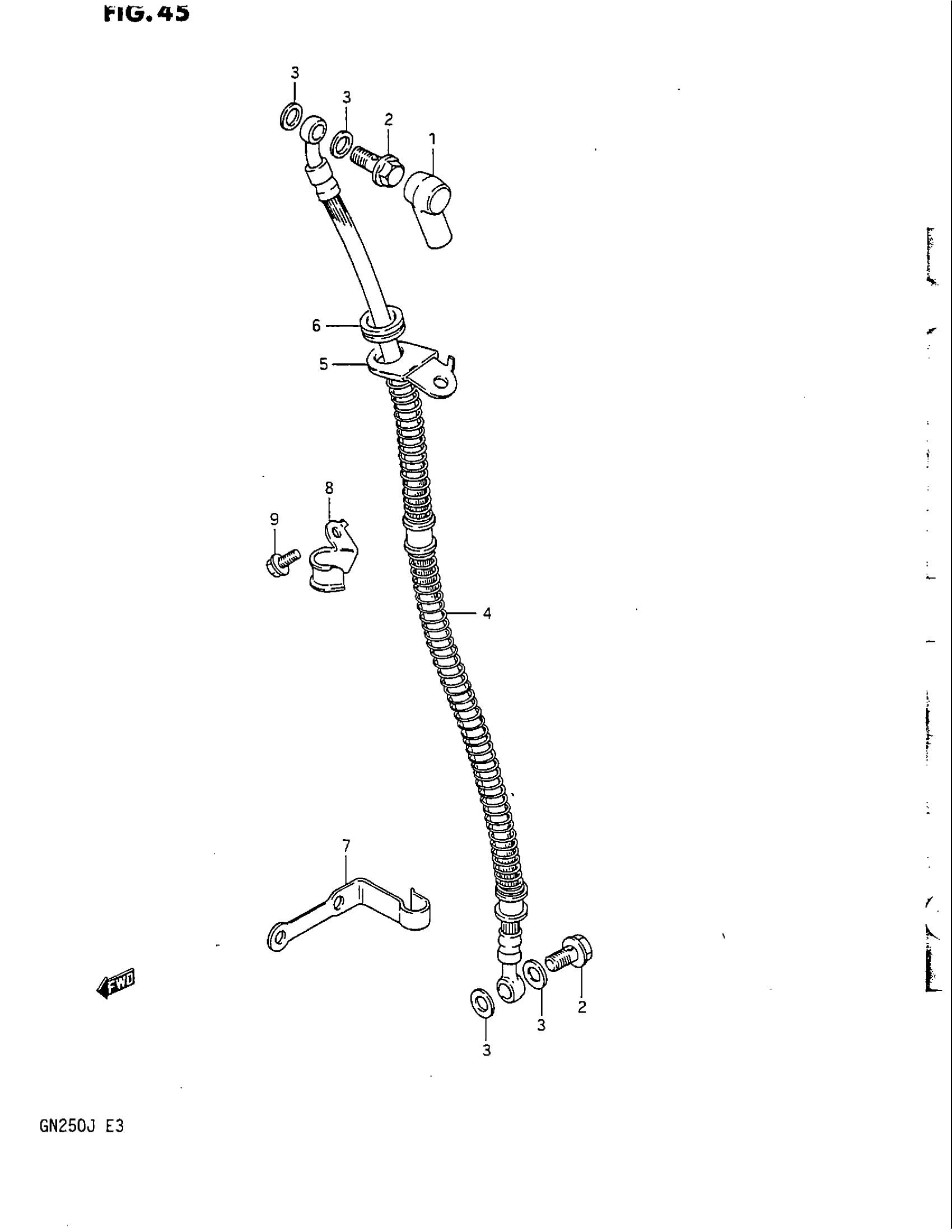

Suzuki GN250 (1988) FRONT BRAKE HOSE (MODEL J) Diagram

#

Description

Price

1

BOOT, MASTER CYLINDER This part replaces 59711-18400.

59711-49001

$7.39

2

UNION BOLT

09360-10017

$3.19

3

WASHER (10X15X1.5)

09161-10009

$1.89

4

HOSE,FRONT BRAK This part replaces 59480-37360.

59480-37362

Unavailable

5

GUIDE, HOSE NO.1

59243-45010

Unavailable

6

GROMMET This part replaces 09308-14007.

09308-14009

Unavailable

7

CLAMP, BRAKE HOSE

59268-38310

Unavailable

8

GUIDE, HOSE NO.3

59246-11400

Unavailable

9

BOLT This part replaces 01517-06105.

01550-0610A

$2.01
