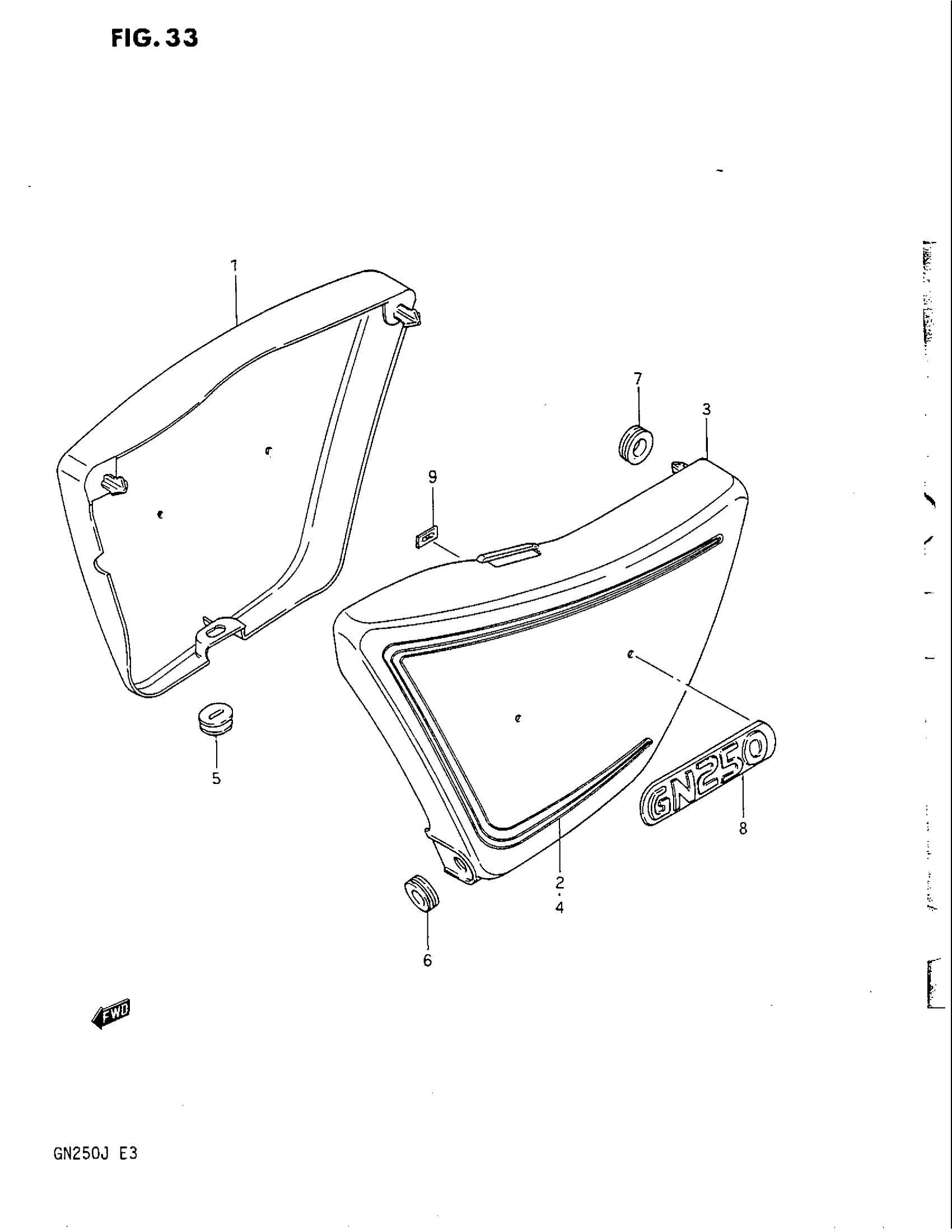

Suzuki GN250 (1988) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,RH | MODEL F This part replaces 47111-38301-13Z.

47111-38301

$46.23

1

COVER, FRAME RH (RED) | MODEL J

47111-38301-19A

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL F

68130-38310-62F

Unavailable

2

TAPE SET, FRAME COVER RH | MODEL J

68130-38310-9WE

Unavailable

3

COVER, FRAME LH (BLACK) | MODEL F

47211-38301-13Z

Unavailable

3

COVER, FRAME LH (RED) | MODEL J

47211-38301-19A

Unavailable

4

TAPE SET, FRAME COVER LH | MODEL F

68140-38310-62F

Unavailable

4

TAPE SET, FRAME COVER LH | MODEL J

68140-38310-9WE

Unavailable

5

CUSHION, LOWER RH

09320-03004

$2.12

6

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

7

CUSHION, UPPER

09320-08018

$3.04

8

EMBLEM

68131-38310

Unavailable

9

NUT

09148-03002

$2.15
