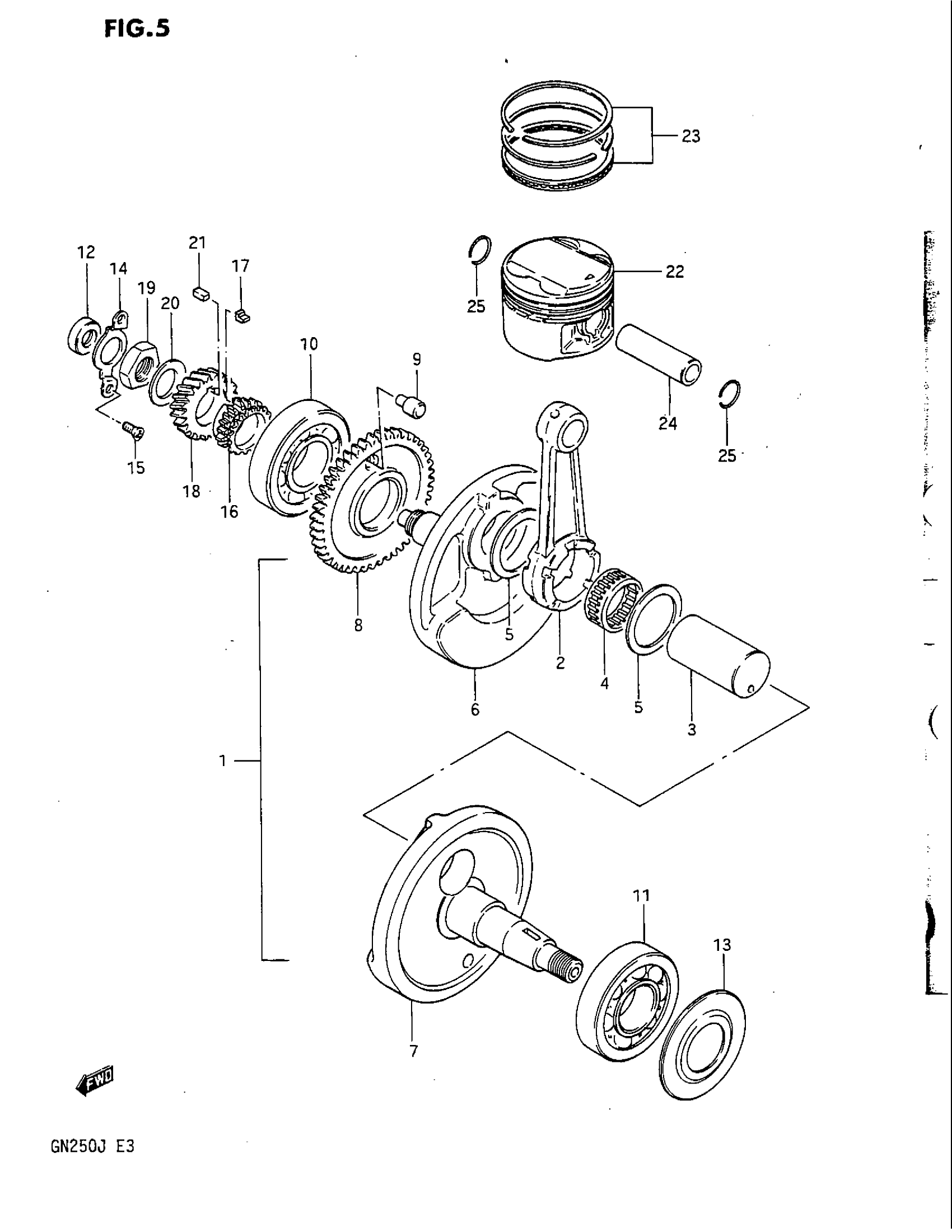

Suzuki GN250 (1988) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 9 This part replaces 12200-38301.

12200-38320

Unavailable

2

ROD, CONNECTING

12161-38201

Unavailable

3

PIN, CRANK This part replaces 12211-38202.

12211-38211

Unavailable

4

BEARING

09263-31004

$64.62

5

WASHER

09160-31002

$7.82

6

CRANKSHAFT, RH

12221-38200

Unavailable

7

CRANKSHAFT, LH

12261-38300

Unavailable

8

GEAR, CRANK BALANCER DRIVE This part replaces 12661-38201.

12661-38202

Unavailable

9

PIN

09209-12006

Unavailable

10

BEARING, RH

09262-30077

$58.43

11

BEARING, LH

09262-35028

Unavailable

12

OIL SEAL, RH

09282-14001

Unavailable

13

WASHER

12521-38300

Unavailable

14

PLATE, RH

12548-38200

Unavailable

15

SCREW

09126-05006

Unavailable

16

SPROCKET, DRIVE (NT:21)

12731-38200

Unavailable

17

KEY

12749-32400

Unavailable

18

GEAR, PRIMARY DRIVE (NT:21)

21111-38200

Unavailable

19

NUT This part replaces 09140-20008.

09140-20013

$4.26

20

LOCK WASHER

09164-20003

$3.85

21

KEY, GEAR

09421-07002

Unavailable

22

PISTON This part replaces 12111-38201.

12111-38201-0F0

$91.88

22

PISTON SET (OS:0.5) | OPT This part replaces 12111-38201-050.

12100-38200-050

$161.73

22

PISTON SET (OS:1.0) | OPT This part replaces 12111-38201-100.

12100-38200-100

Unavailable

23

RING SET, PISTON This part replaces 12140-49221.

12140-49270

$44.54

23

RING SET,PISTON | OPT This part replaces 12140-49221-050.

12140-49270-050

$56.23

23

RING SET, PISTON (OS:1.0) | OPT

12140-49221-100

Unavailable

24

PIN

12151-15501

$17.37

25

CIRCLIP

09381-18002

$1.67
