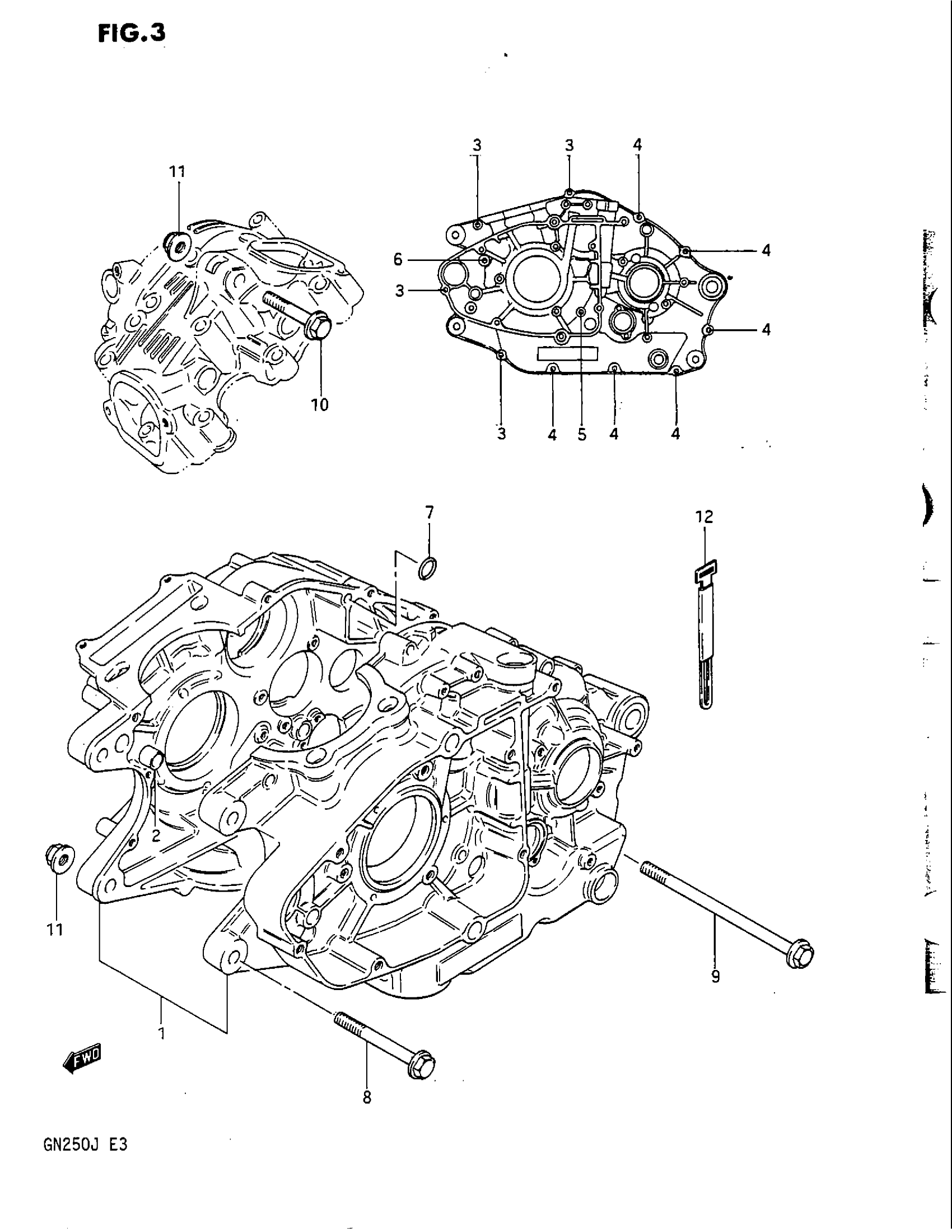

Suzuki GN250 (1988) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7 This part replaces 11300-38860.

11300-38868

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (6X35)

01547-06357

$2.03

4

BOLT (6X45)

01547-06457

$2.32

5

BOLT (6X55)

01547-06557

$2.32

6

BOLT (6X60)

01547-06607

$3.18

7

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.70

8

BOLT (8X67)

09103-08037

$5.57

9

BOLT (8X100)

09103-08070

$5.57

10

BOLT (8X50)

09103-08081

$3.72

11

NUT

08319-31087

$2.32

12

CLAMP, DRAIN TUBE

13827-38300

Unavailable
