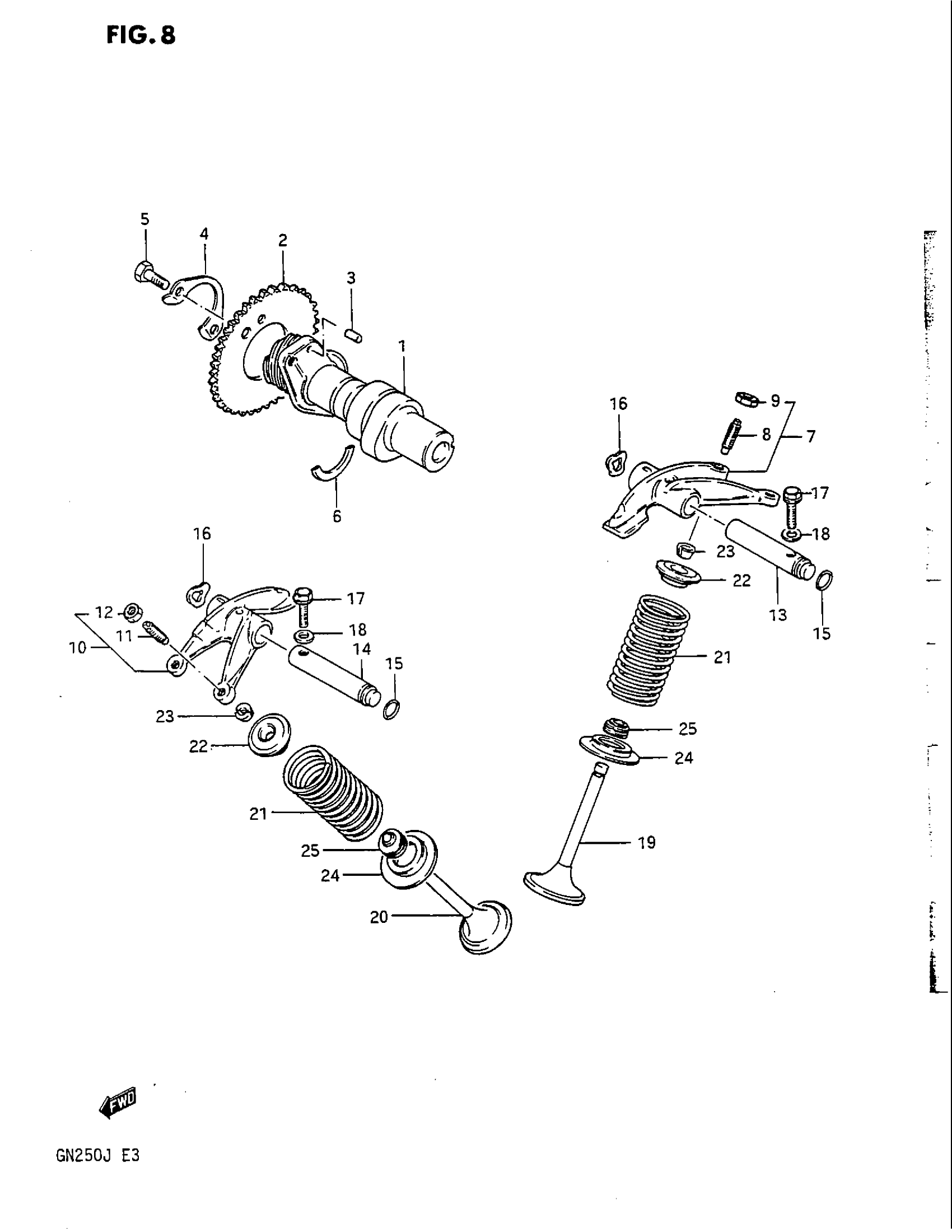

Suzuki GN250 (1988) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-38212

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

BOLT

09111-06027

$1.72

6

C RING

09390-25003

$2.48

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9

12840-38201

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-38201

Unavailable

11

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

12

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

13

SHAFT, ROCKER ARM IN | L:91.5

12861-38200

Unavailable

14

SHAFT, ROCKER ARM EX | L:76

12871-38200

$29.25

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

16

WASHER

09164-12018

$1.49

17

BOLT This part replaces 01517-06307.

01550-06307

$2.69

18

GASKET

09168-06023

$2.35

19

VALVE, INTAKE (OD:26)

12911-38200

$43.92

20

VALVE, EXHAUST This part replaces 12912-38200.

12912-38201

$76.35

21

VALVE SPRING

12921-38211

$9.58

22

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

23

COTTER, VALVE

12932-49200

$2.28

24

SEAT, SPRING

12933-38200

$6.38

25

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70
