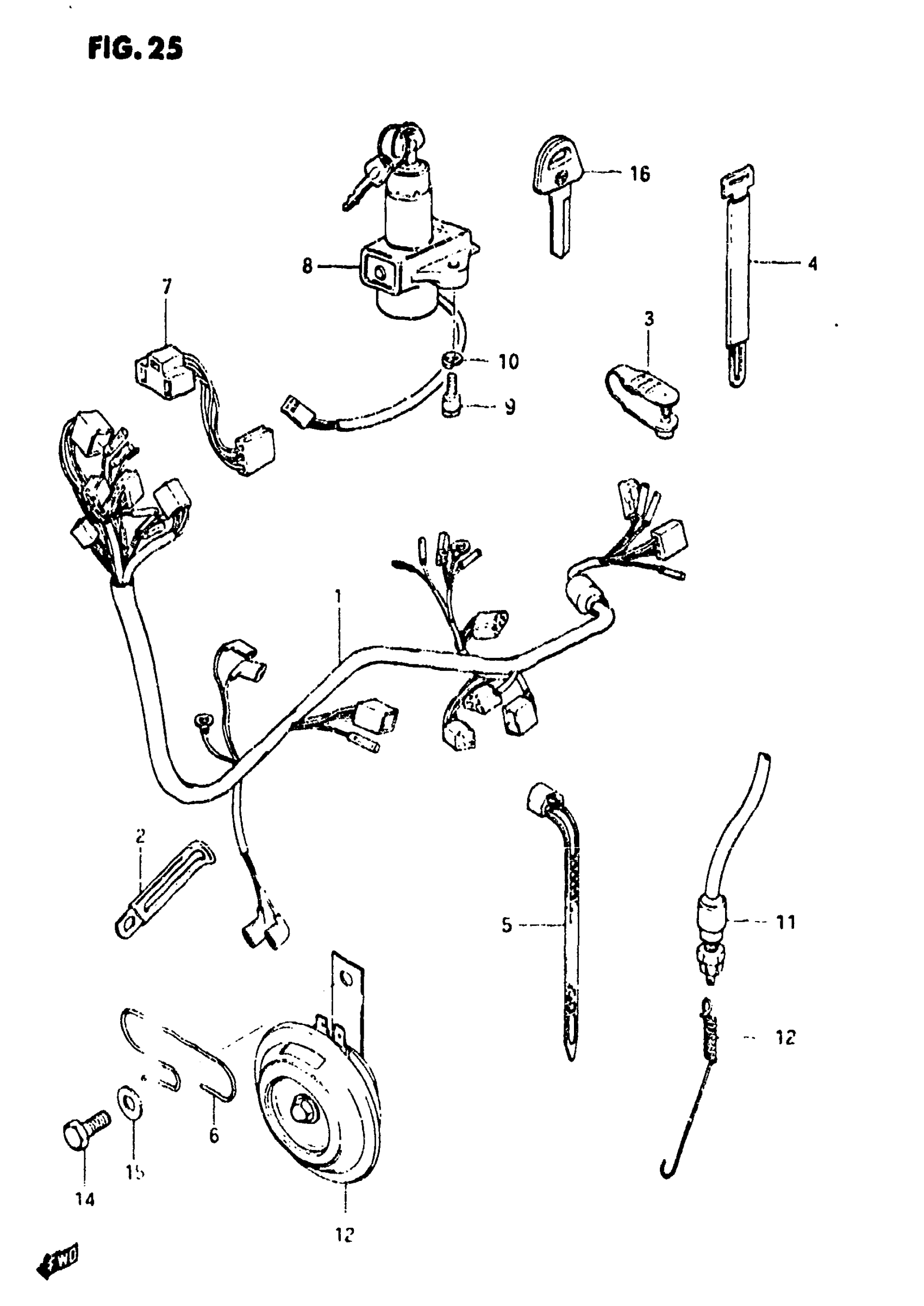

Suzuki GN250 (1983) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-38311.

36610-38301

Unavailable

2

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

3

CLAMP

09407-05403

$2.38

4

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

4

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

5

CLAMP

09407-14403

$2.26

6

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

Unavailable

7

LEAD WIRE, HEADLAMP This part replaces 36852-34000.

36853-30500

$11.63

8

SWITCH ASSY, IGNITION | Includes Item(s) 9 - 10

37100-49201

Unavailable

9

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

12

SPRING

09443-06031

$4.13

13

HORN This part replaces 38500-38360.

38500-38361

$50.10

14

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

KEY, BLANK | OPT

37146-47010

$18.39
