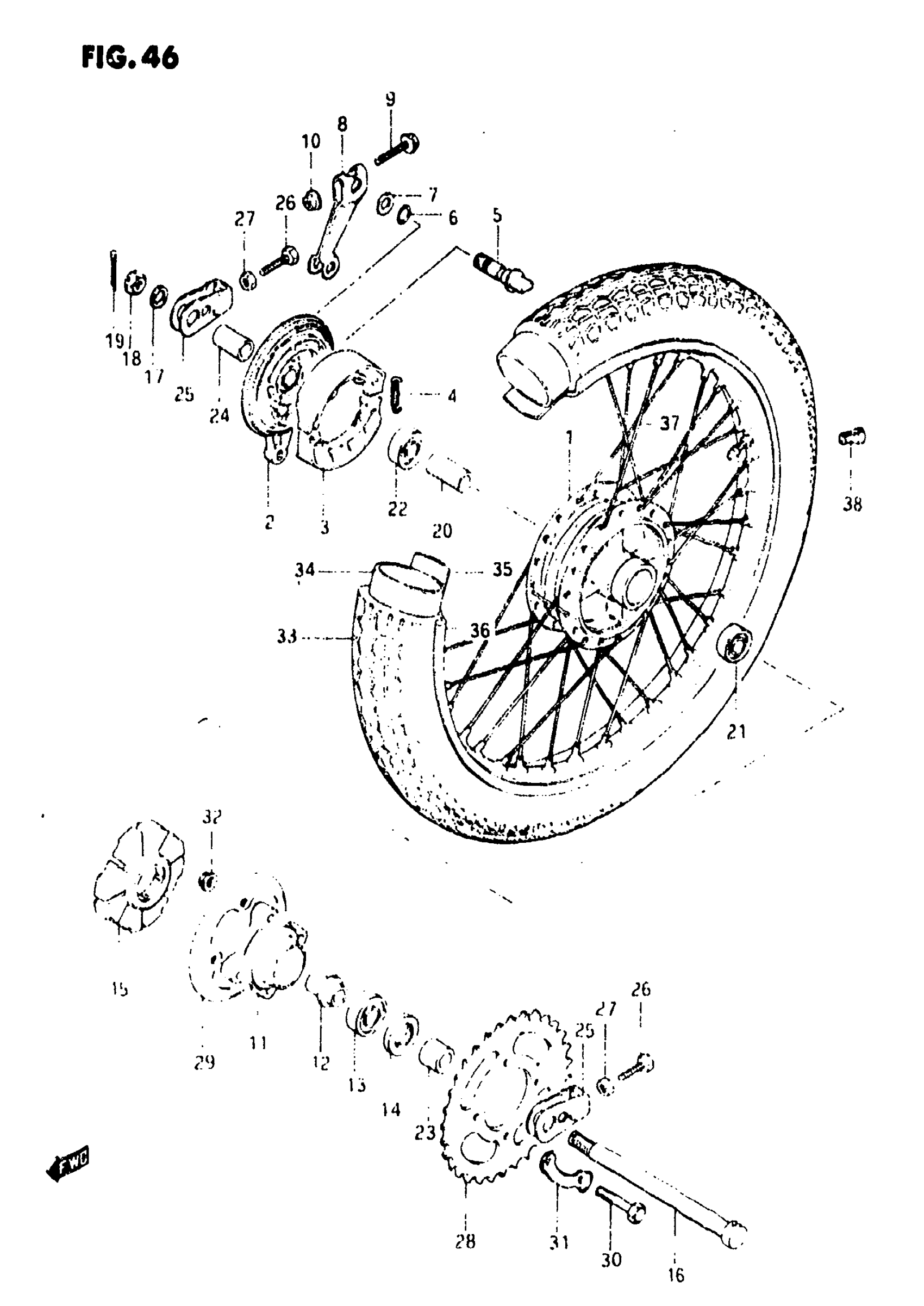

Suzuki GN250 (1983) REAR WHEEL Diagram

#

Description
Price

1

HUB, WHEEL This part replaces 64110-07603.

64110-07604

Unavailable

2

PANEL, REAR BRAKE ANCHOR | MODEL Z This part replaces 64210-39101.

64210-39104

Unavailable

2

PANEL, REAR BRAKE ANCHOR | MODEL D This part replaces 64210-39102.

64210-39104

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE This part replaces 54441-29303.

54441-29305

$20.02

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

7

WASHER This part replaces 09160-14001.

09160-14055

$2.39

8

LEVER, BRAKE CAM

64451-30501

$20.06

9

BOLT This part replaces 01517-06408.

01550-06407

$2.69

10

NUT This part replaces 08316-16068.

08319-31067

$2.03

11

DRUM, SPROCKET MOUNTING

64610-38300

Unavailable

12

RETAINER, MOUNTING DRUM

64733-38300

Unavailable

13

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

15

SHOCK ABSORBER, HUB

64651-07001

$19.43

16

NO DESCRIPTION AVAILABLE This part replaces 64711-32100.

64711-32101

Unavailable

17

WASHER This part replaces 08322-11148.

08322-01147

$1.91

18

NUT

09141-14001

$4.60

19

PIN This part replaces 04111-30308.

04111-3030A

$1.49

20

SPACER, WHEEL BEARING

09180-15011

$8.18

21

BEARING, WHEEL LH

08143-62027

$16.01

22

BEARING, WHEEL RH This part replaces 08143-63027.

08153-63027

$25.35

23

SPACER, AXLE LH

09180-15061

Unavailable

24

SPACER, AXLE RH

09180-15060

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 61410-38300.

61410-38301

Unavailable

26

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

27

NUT This part replaces 08310-12088.

08310-00087

$2.13

28

SPROCKET, REAR (NT:41) This part replaces 64511-38300.

64511-38301

$62.65

29

GUIDE

64618-38300

Unavailable

30

BOLT 10X 40 This part replaces 09100-10096.

09100-10184

$3.16

31

WASHER

09169-10014

Unavailable

32

NUT This part replaces 08319-31108.

08319-31107

$2.73

33

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-38310.

65100-38330

Unavailable

33

TIRE (4,60S16) | BS

65100-38330

Unavailable

34

TUBE, INNER | IRC

65200-37300

Unavailable

34

TUBE, INNER REAR | BS This part replaces 65200-37320.

65200-37300

Unavailable

35

PROTECTOR | IRC

65261-37300

Unavailable

35

PROTECTOR | BS

65261-37320

Unavailable

36

RIM, WHEEL

65311-38300

Unavailable

37

SPOKE ASSY RR W This part replaces 65320-38300.

65320-38301

Unavailable

38

BALANCER WHEEL (15G) This part replaces 55411-11000.

55411-26G00

$7.73

38

BALANCER WHEEL (30G) This part replaces 55412-11000.

55413-41F00

$7.50
