1983 Suzuki GN250 Rear Brake Diagram

← All diagrams

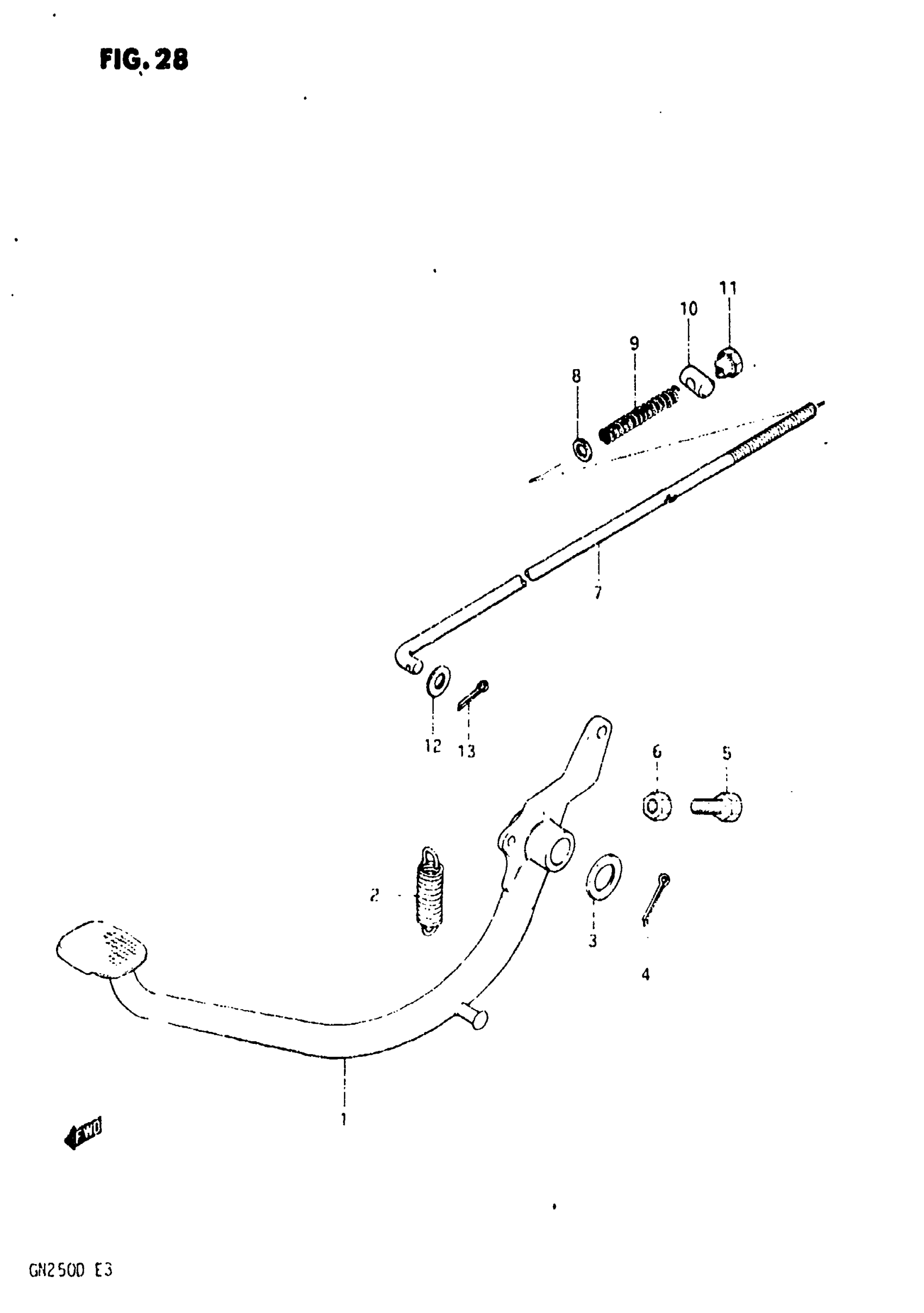

Find the part on the Rear Brake diagram for your 1983 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN250 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43110-38301

1
Out of stock

2

SPRING

09443-14013

1
Out of stock

3

WASHER

09160-15002

1
Out of stock

4

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

5

BOLT

09128-06028

1
Out of stock

6

.NUT This part replaces 08310-11068.

08310-00067

1
Out of stock

7

ROD ASSY, REAR BRAKE | Includes Item(s) 8 - 13

43300-38300

1
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

9

SPRING

09440-09004

1
Out of stock

10

.PIN (13X18) | MODEL Z This part replaces 09209-13003.

09209-13018

1
Out of stock

10

.PIN (13X18) | MODEL D This part replaces 09209-13005.

09209-13018

1
Out of stock

11

.NUT | MODEL Z This part replaces 09150-06001.

09150-06010

1
Out of stock

11

.NUT | MODEL D This part replaces 09150-06009.

09150-06010

1
Out of stock

12

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
