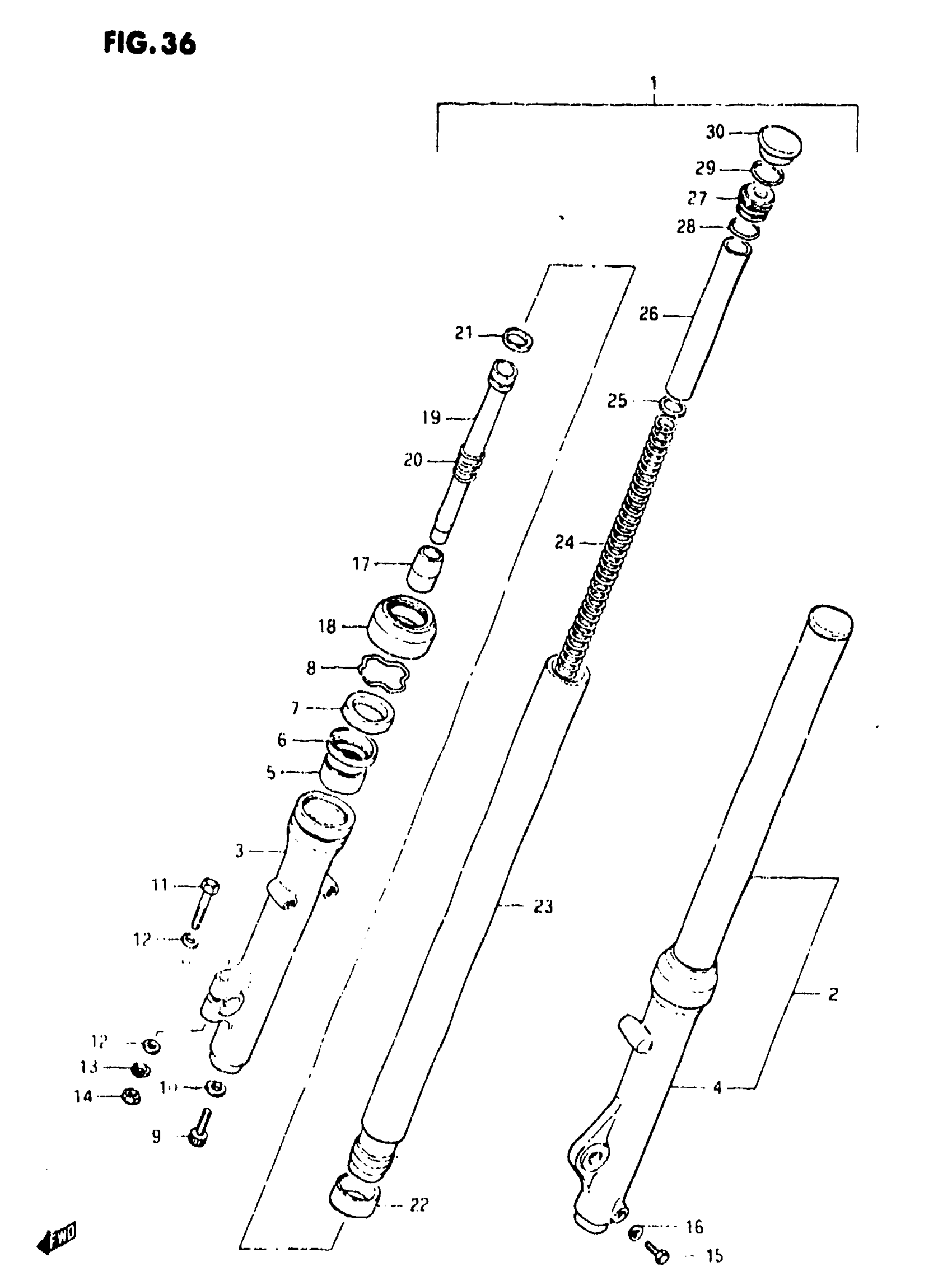

Suzuki GN250 (1983) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-38300

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 30

51104-38300

Unavailable

3

OUTER TUBE, RH

51130-38300

Unavailable

4

OUTER TUBE, LH

51140-38300

Unavailable

5

GUIDE BUSH

51152-11420

$20.78

6

SPACER

51168-44030

$5.90

7

OIL SEAL This part replaces 51153-37310.

51153-02B00

$18.89

8

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.04

9

BOLT

51147-48130

$3.97

10

O RING This part replaces 51148-31030.

51148-36011

$3.26

11

BOLT This part replaces 01107-08508.

01500-08507

$2.80

12

WASHER This part replaces 08322-21088.

08322-01087

$1.86

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

14

NUT This part replaces 08310-12088.

08310-00087

$1.83

15

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.97

16

GASKET

51183-31030

$3.55

17

.PIECE, OIL LOCK This part replaces 51195-38300.

51195-48000

Unavailable

18

DUST SEAL

51571-37310

$18.98

19

CYLINDER

51146-38300

Unavailable

20

SPRING

51177-36030

Unavailable

21

RING, PISTON

51196-33130

$9.17

22

BUSH

51121-11420

Unavailable

23

INNER TUBE

51110-38300

Unavailable

24

SPRING

51171-38300

Unavailable

25

JOINT, SPRING

51172-36331

Unavailable

26

COLLAR, SPRING

51176-36331

Unavailable

27

SEAT

51175-48500

Unavailable

28

O RING

51181-33131

$6.22

29

RING STOPPER This part replaces 51196-48500.

51169-48500

$3.80

30

CAP

51189-44031

Unavailable
