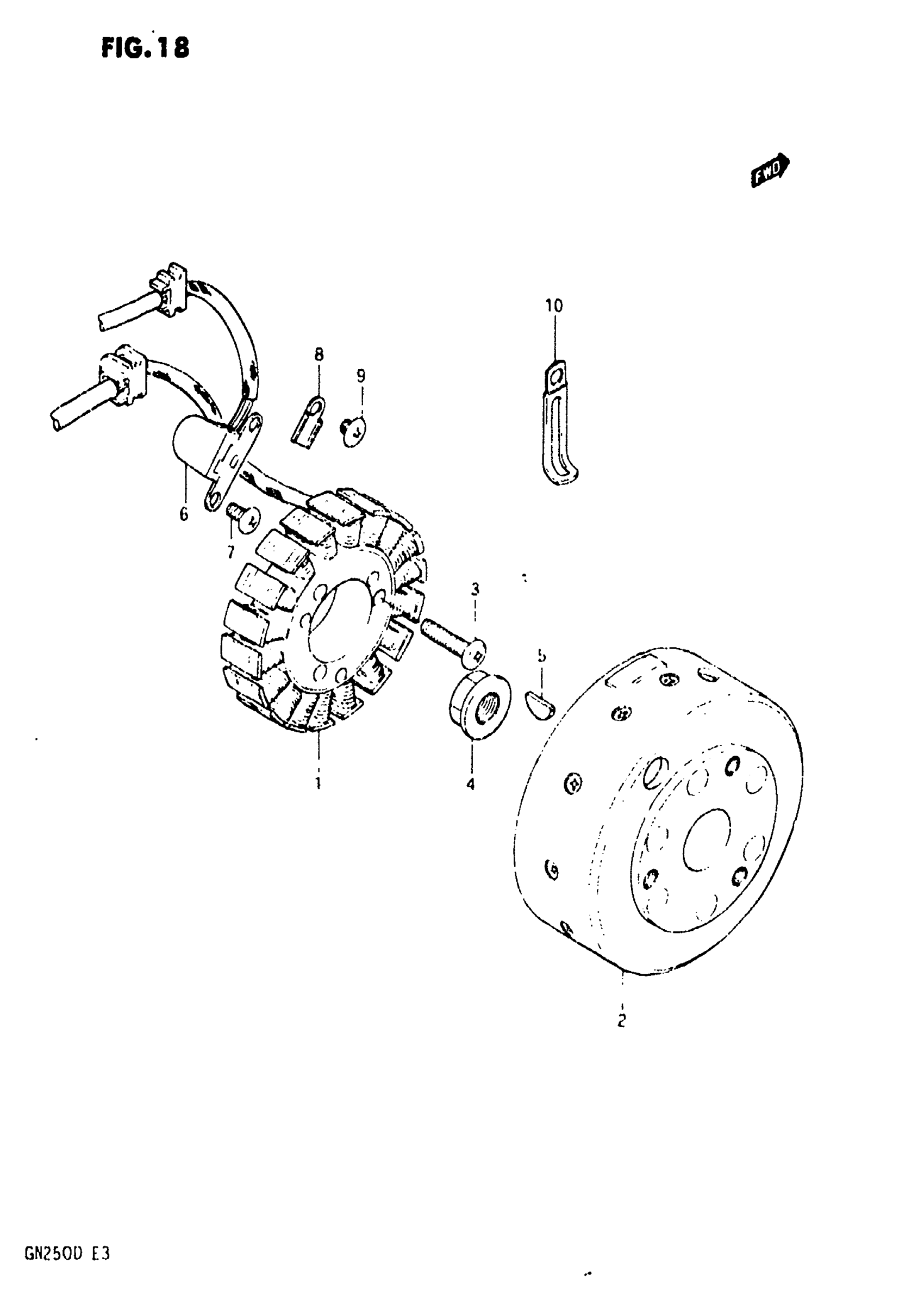

Suzuki GN250 (1983) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-38300.

32101-38302

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 32102-38300.

32102-38301

Unavailable

3

SCREW This part replaces 02112-06308.

02112-06307

$1.97

4

NUT

31792-49200

$9.69

5

KEY

08341-31039

$1.89

6

COIL, PICKUP

32160-37410

$123.15

7

SCREW This part replaces 02112-05108.

02112-05107

$1.49

8

CLAMP, LEAD WIRE

31497-45000

$1.92

9

SCREW This part replaces 02142-05067.

09125-05117

$2.72

10

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
