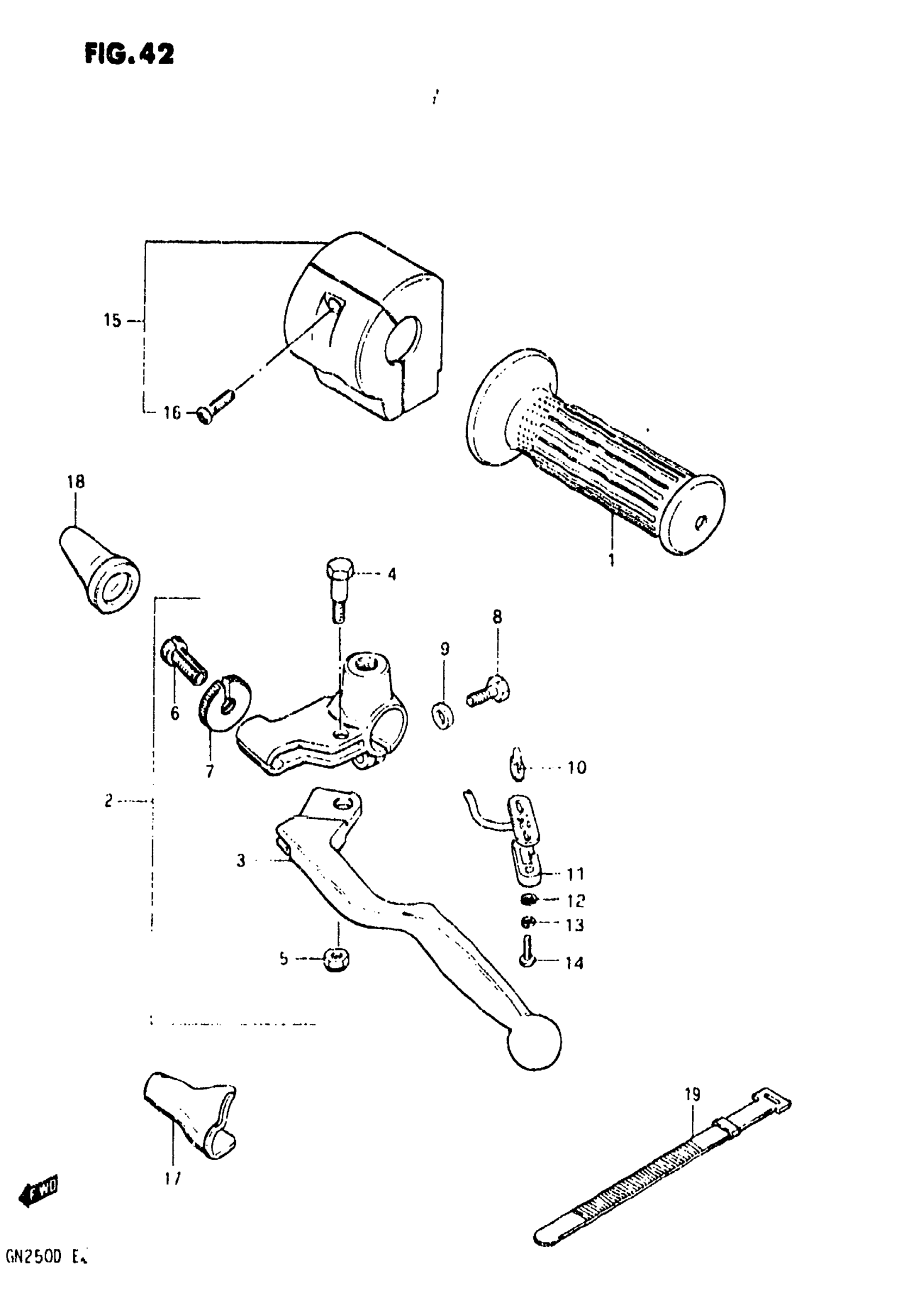

Suzuki GN250 (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP,L This part replaces 57211-45020.

57211-45021

$11.44

2

LEVER ASSY,CLUT | MODEL Z This part replaces 57500-49112.

57500-49301

Unavailable

2

CLUTCH LEVER & SWITCH ASSY | MODEL D; Includes Item(s) 3 - 14

57500-49131

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT | MODEL Z This part replaces 57431-11011.

57431-11013

$6.31

4

.BOLT, BRAKE LEVER PIVOT | MODEL D This part replaces 57431-49120.

57431-49110

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER, CABLE | MODEL Z

57441-11010

$5.62

6

ADJUSTER, CABLE | MODEL D

57441-44400

$6.28

7

NUT | MODEL Z

57442-11010

$2.79

7

NUT | MODEL D This part replaces 57442-44400.

57442-11010

$2.79

8

BOLT | MODEL Z

57451-49100

Unavailable

8

BOLT | MODEL D This part replaces 57451-49120.

01204-06204

$2.72

9

.WASHER | MODEL D This part replaces 57581-49120.

08322-0106B

$2.26

10

HOLDER

57465-18601

$4.34

11

COVER

57481-33010

$5.84

12

WASHER This part replaces 08322-21038.

08322-01037

$1.93

13

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

14

SCREW

57484-49110

$1.98

15

SWITCH ASSY, HANDLE LH | Includes Item(s) 16 This part replaces 37400-44121.

37400-44122

Unavailable

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

COVER

57661-31000

$7.25

18

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

19

BAND (L:120)

09407-12402

$3.04
