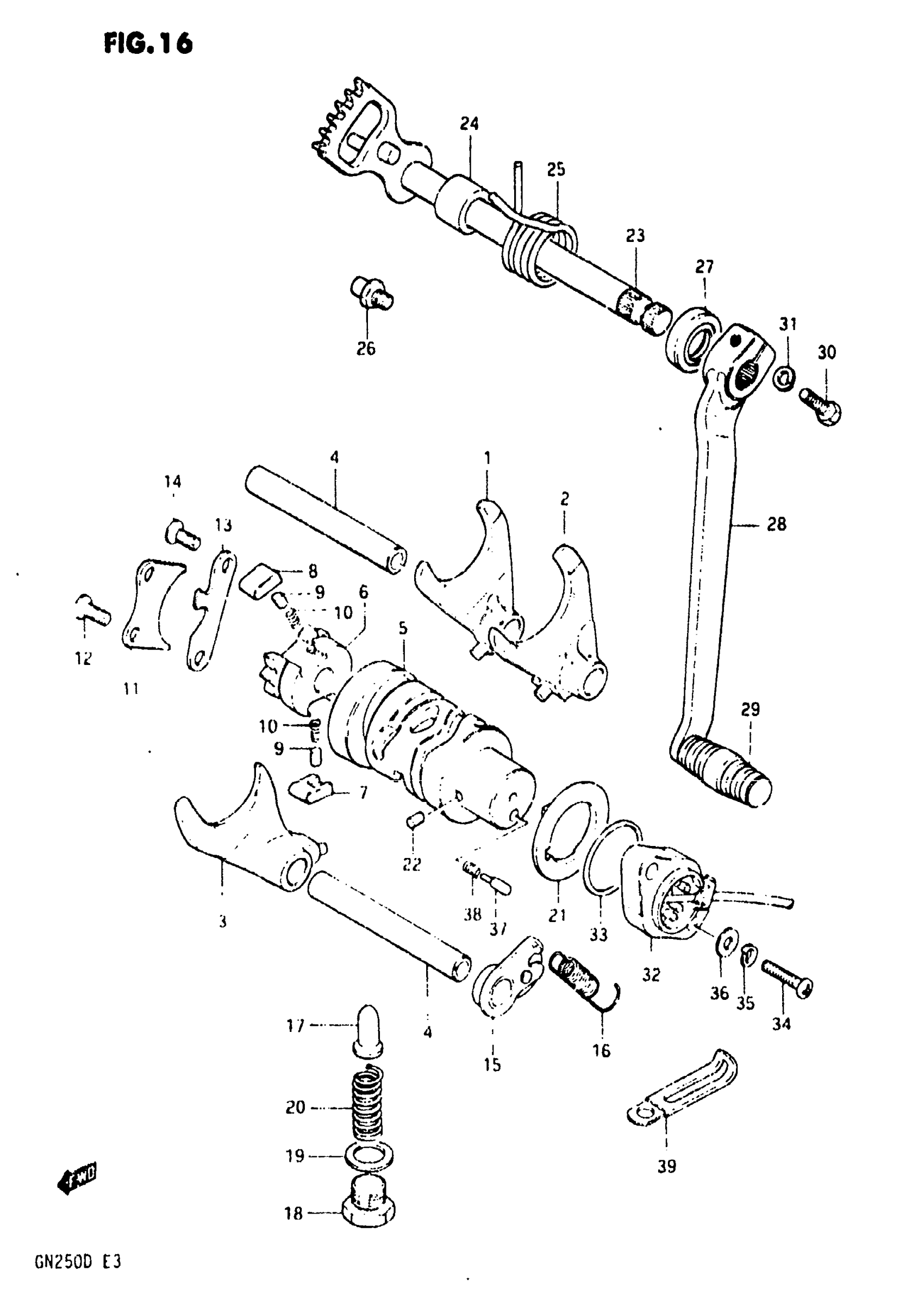

Suzuki GN250 (1983) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-32401.

25211-32402

Unavailable

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-32401.

25221-32403

Unavailable

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-32401.

25231-32402

Unavailable

4

SHAFT, NO.2 This part replaces 25411-40400.

25411-14331

$23.07

5

CAM, GEAR SHIFTING

25310-38200

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, GEAR SHIFT POLE This part replaces 25331-38200.

25331-38201

Unavailable

12

SCREW This part replaces 02122-06168.

02122-06167

$1.49

13

GUIDE, CAM

25341-38200

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.84

15

STOPPER

25350-34000

$15.42

16

SPRING

09443-08026

$2.64

17

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$11.95

18

PLUG This part replaces 09247-14012.

09247-14026

$3.76

19

WASHER

09168-14004

$1.83

20

SPRING

09440-11016

Unavailable

21

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$20.45

22

PIN This part replaces 06211-04063.

04221-04069

$2.12

23

SHAFT, GEAR SHIFTING

25510-38200

$102.17

24

SPACER

09180-12068

$3.16

25

SPRING

09444-26001

$5.88

26

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

28

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 29

25600-05330

$49.68

29

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

30

BOLT This part replaces 01107-06208.

01500-06207

$2.28

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

BODY, SWITCH This part replaces 37720-33200.

37720-45100

$101.35

33

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.30

34

SCREW This part replaces 02112-05208.

02112-05207

$1.97

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

36

WASHER This part replaces 08322-21058.

08322-01057

$2.13

37

CONTACT

09209-05011

$2.20

38

SPRING

09440-04010

$1.54

39

CLAMP This part replaces 09404-06412.

09404-06039

$1.74
