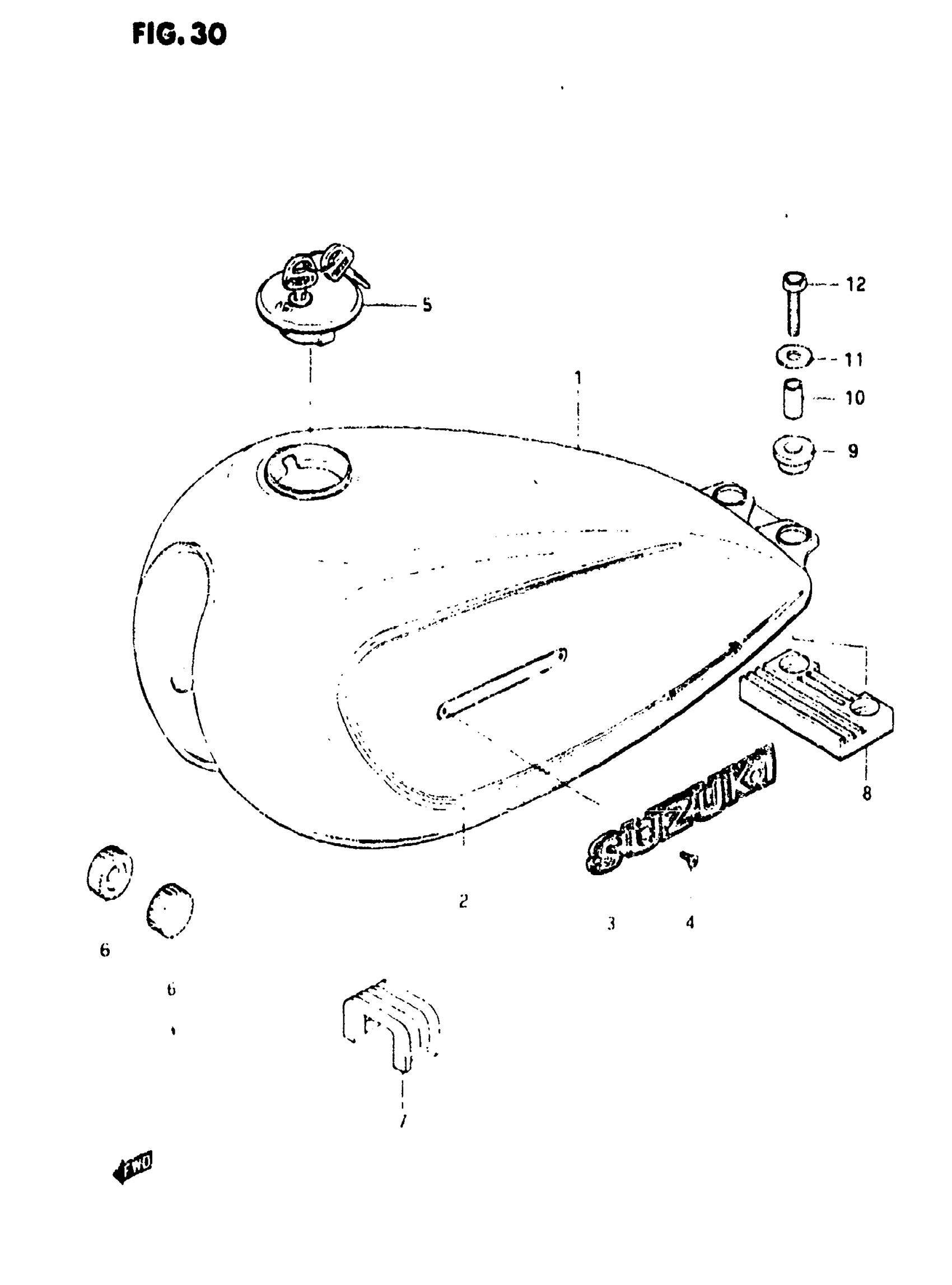

Suzuki GN250 (1983) FUEL TANK (MODEL Z) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-38300-019.

44110-38302-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-38300-03F.

44110-38302-YD8

Unavailable

2

TAPE SET (GOLD)

68110-38300-764

Unavailable

3

EMBLEM

68111-37300

Unavailable

4

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

5

CAP SET,FUEL TA This part replaces 44200-30704.

44200-30832

$94.67

6

CUSHION, FRONT

09329-10016

$3.10

7

CUSHION, UPPER FRONT

44541-38200

Unavailable

8

CUSHION, UPPER REAR

44542-38300

Unavailable

9

CUSHION REAR, NO.2

09320-10022

$2.71

10

SPACER

09180-06067

$2.59

11

WASHER This part replaces 09160-06012.

09160-06054

$1.62

12

BOLT This part replaces 09100-06033.

64455-07L00

$1.59
