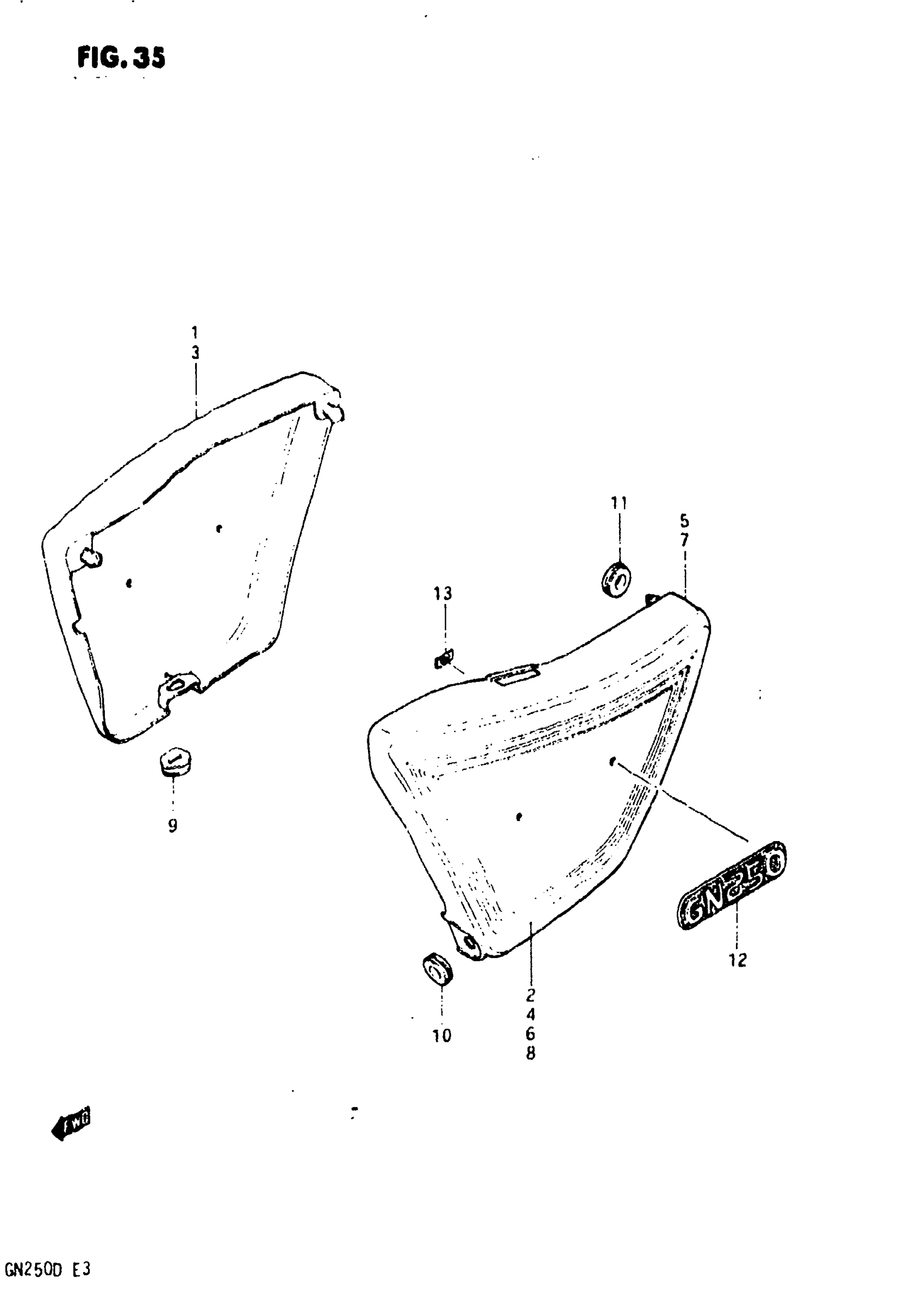

Suzuki GN250 (1983) FRAME COVER (MODEL D) Diagram

#

Description
Price

1

COVER, FRAME RH (RED)

47111-38301-00J

Unavailable

2

TAPE SET, FRAME COVER RH

68130-38320-88L

Unavailable

3

COVER,FRAME,RH This part replaces 47111-38301-08D.

47111-38301

$46.23

4

TAPE SET, FRAME COVER RH

68130-38320-88K

Unavailable

5

COVER, FRAME LH (RED)

47211-38301-00J

Unavailable

6

TAPE SET, FRAME COVER LH

68140-38320-88L

Unavailable

7

COVER,FRAME LH This part replaces 47211-38301-08D.

47211-38301

Unavailable

8

TAPE SET, FRAME COVER LH

68140-38320-88K

Unavailable

9

CUSHION, LOWER RH

09320-03004

$2.12

10

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

11

CUSHION, UPPER

09320-08018

$3.04

12

EMBLEM

68131-38310

Unavailable

13

NUT

09148-03002

$2.15
