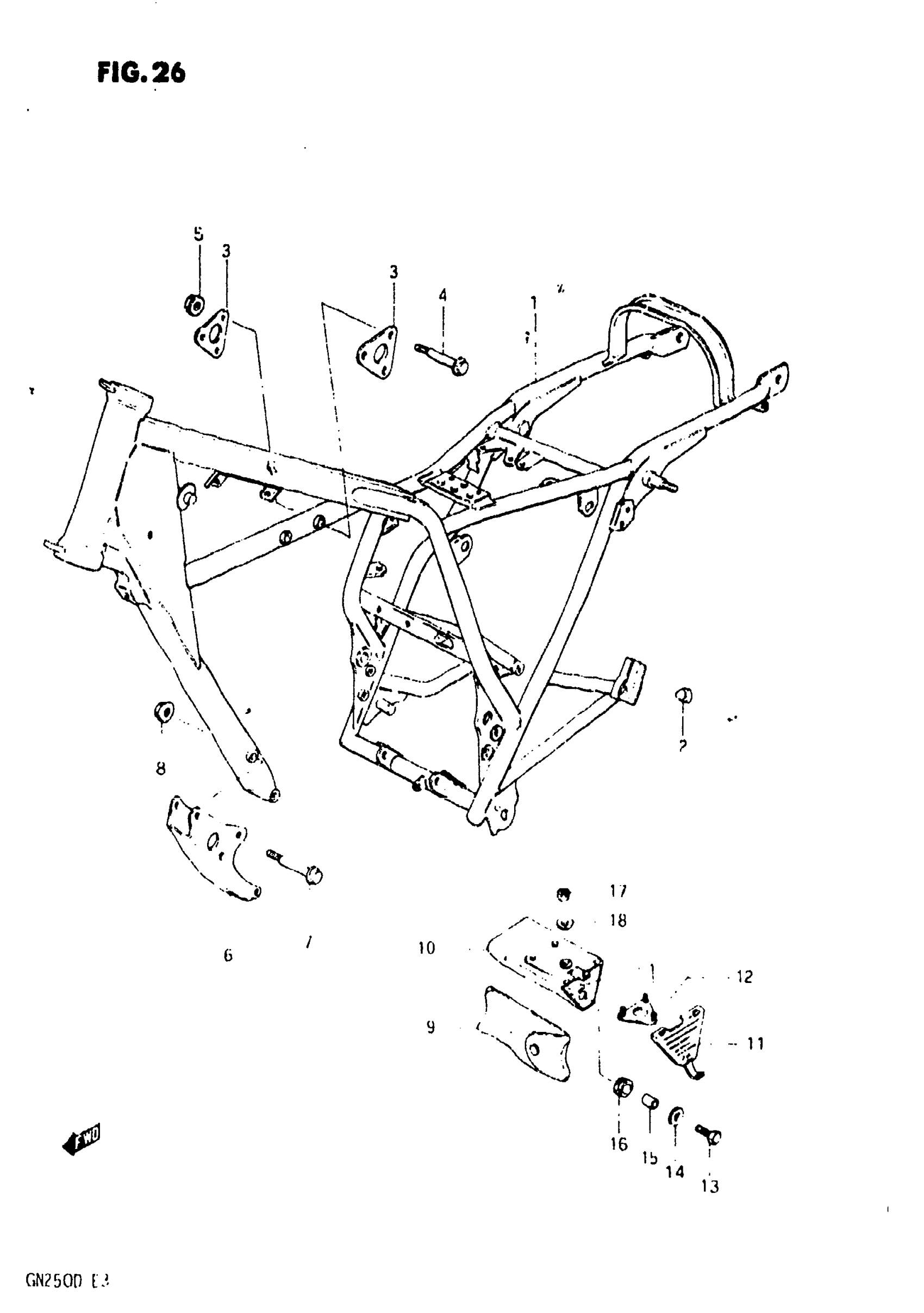

Suzuki GN250 (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-38300-019

Unavailable

2

PLUG (OD:19) This part replaces 09250-15007.

09250-15010

$2.08

3

PLATE, UPPER

41991-38200

Unavailable

4

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

5

NUT This part replaces 08319-31088.

08319-3108A

$2.32

6

PLATE, MOUNT LOWER (BLACK) This part replaces 41992-38300.

41992-38300-019

Unavailable

7

BOLT This part replaces 01517-08658.

01550-08657

$4.68

8

NUT This part replaces 08319-31088.

08319-3108A

$2.32

9

TOOL ASSY (CA) This part replaces 09800-00245.

09800-21021

Unavailable

10

BOX, TOOL

47431-05300

Unavailable

11

CAP

47432-05300

$6.30

12

PLATE | MODEL Z This part replaces 47440-05300.

47440-05301

Unavailable

12

PLATE | MODEL D

47440-05301

Unavailable

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

15

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

16

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

17

.NUT This part replaces 08310-11068.

08310-00067

$2.13

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13
