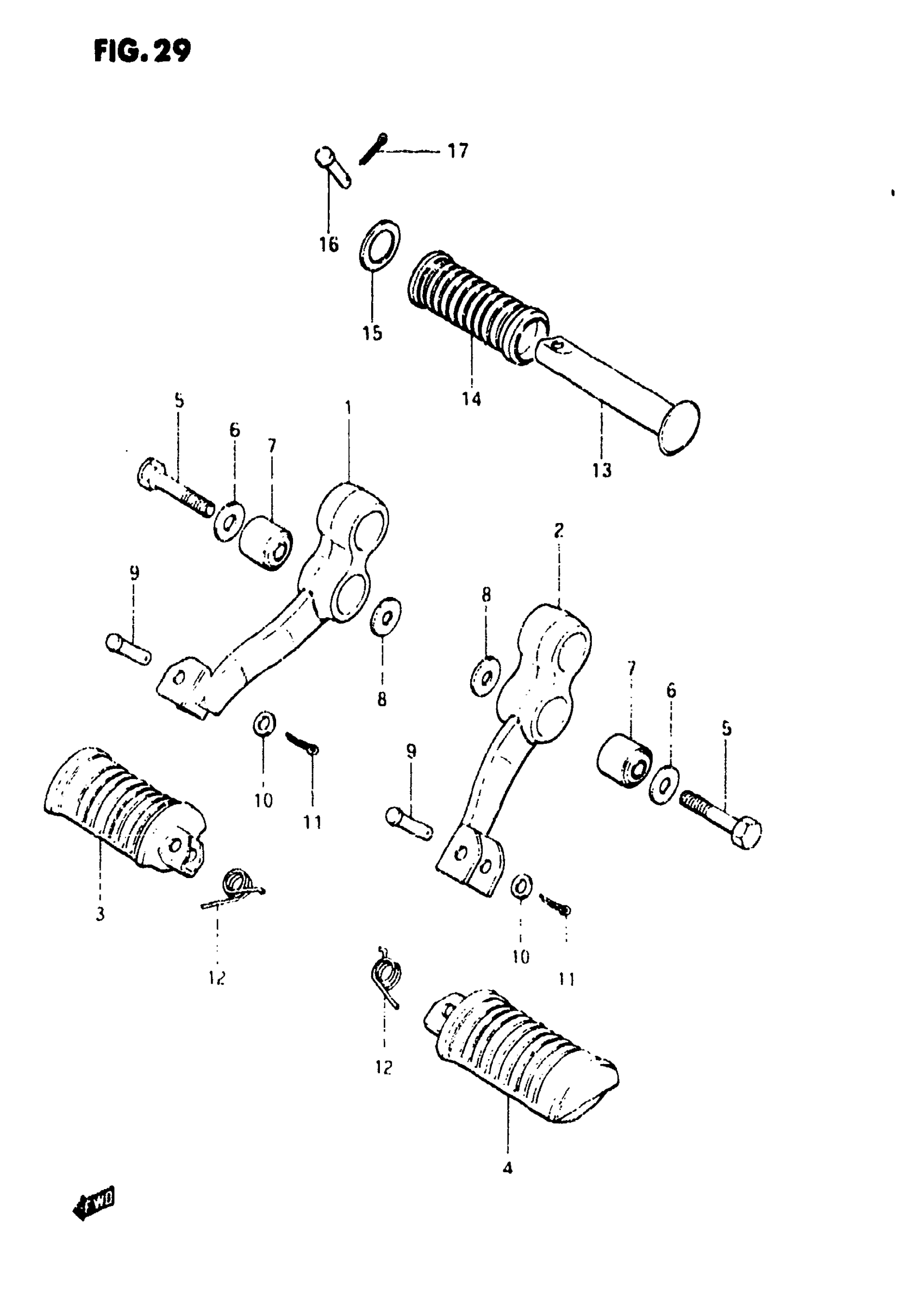

Suzuki GN250 (1983) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH | MODEL Z

43510-38300

Unavailable

1

BAR,FR FOOTREST | MODEL D This part replaces 43510-38310.

43510-38312

Unavailable

2

BAR, FOOTREST LH | MODEL Z

43520-38300

Unavailable

2

BAR, FOOTREST LH | MODEL D

43520-38310

Unavailable

3

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

4

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

5

BOLT

09104-10010

Unavailable

6

WASHER This part replaces 09160-10059.

09160-10124

$2.35

7

BUSH

09319-10008

$7.40

8

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.34

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING

09448-14012

$3.04

13

BAR, PILLION FOOTREST | MODEL Z

43610-44000

Unavailable

13

BAR, PILLION FOOTREST | MODEL D

43610-38300

Unavailable

14

RUBBER

43612-03001

$5.15

15

WASHER This part replaces 09160-19006.

09160-19024

$2.65

16

PIN

09200-06010

$1.72

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
