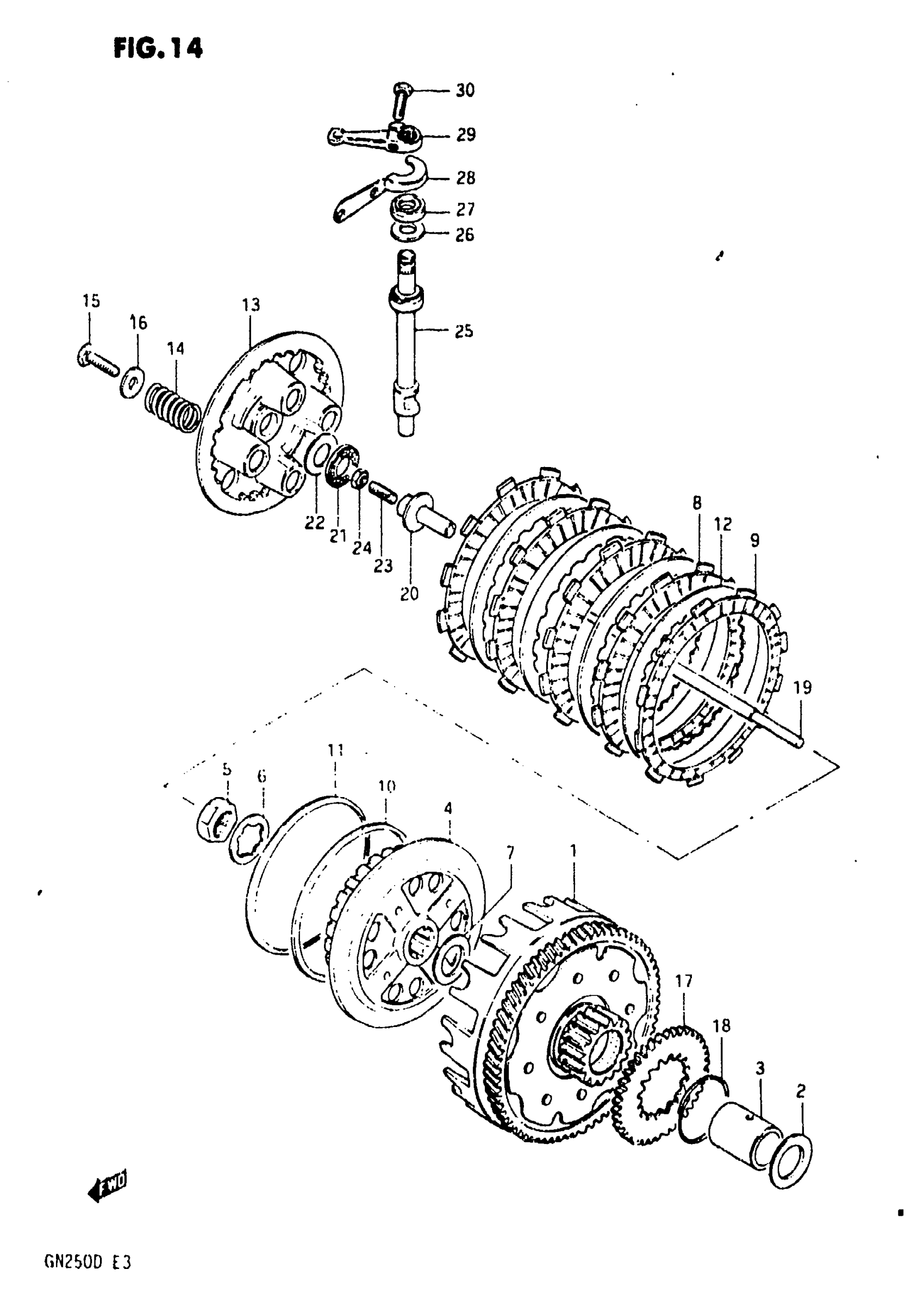

Suzuki GN250 (1983) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRI D | NT:68/16 This part replaces 21200-38200.

21200-38202

$283.28

2

WASHER

08211-22363

$4.00

3

SPACER

09180-22024

Unavailable

4

HUB, CLUTCH SLEEVE This part replaces 21411-38200.

21411-38201

$121.77

5

NUT

09140-22005

$3.87

6

LOCK WASHER

09167-22010

$3.91

7

WASHER

08211-22363

$4.00

8

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

9

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-37400.

21442-37401

$18.67

10

SEAT, WAVE WASHER (T:1.4)

21471-37400

$9.78

11

WAVE WASHER

09164-00004

$11.35

12

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-37400.

21451-14A00

$9.52

13

DISK, CLUTCH PRESSURE This part replaces 21462-38200.

21462-27A00

$57.67

14

SPRING

09440-19007

$2.52

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

17

GEAR, ENGINE OIL PUMP DRIVE This part replaces 16321-38200.

16321-38210

Unavailable

18

CIRCLIP

09380-50001

$1.94

19

ROD, CLUTCH PUSH This part replaces 23110-38200.

23110-38201

$18.02

20

PIECE, CLUTCH PUSH This part replaces 23121-38200.

23121-38201

$26.73

21

THRUST BEARING

09263-15003

$8.29

22

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

23

SCREW This part replaces 09134-06001.

09134-06010

$3.12

24

.NUT This part replaces 08310-22068.

08310-00067

$2.13

25

CAM SHAFT

23122-38200

Unavailable

26

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

27

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

28

PLATE, OIL SEAL

23117-38200

$5.50

29

ARM, RELEASE This part replaces 23271-49001.

23271-45400

Unavailable

30

BOLT This part replaces 01107-06208.

01500-06207

$2.28
