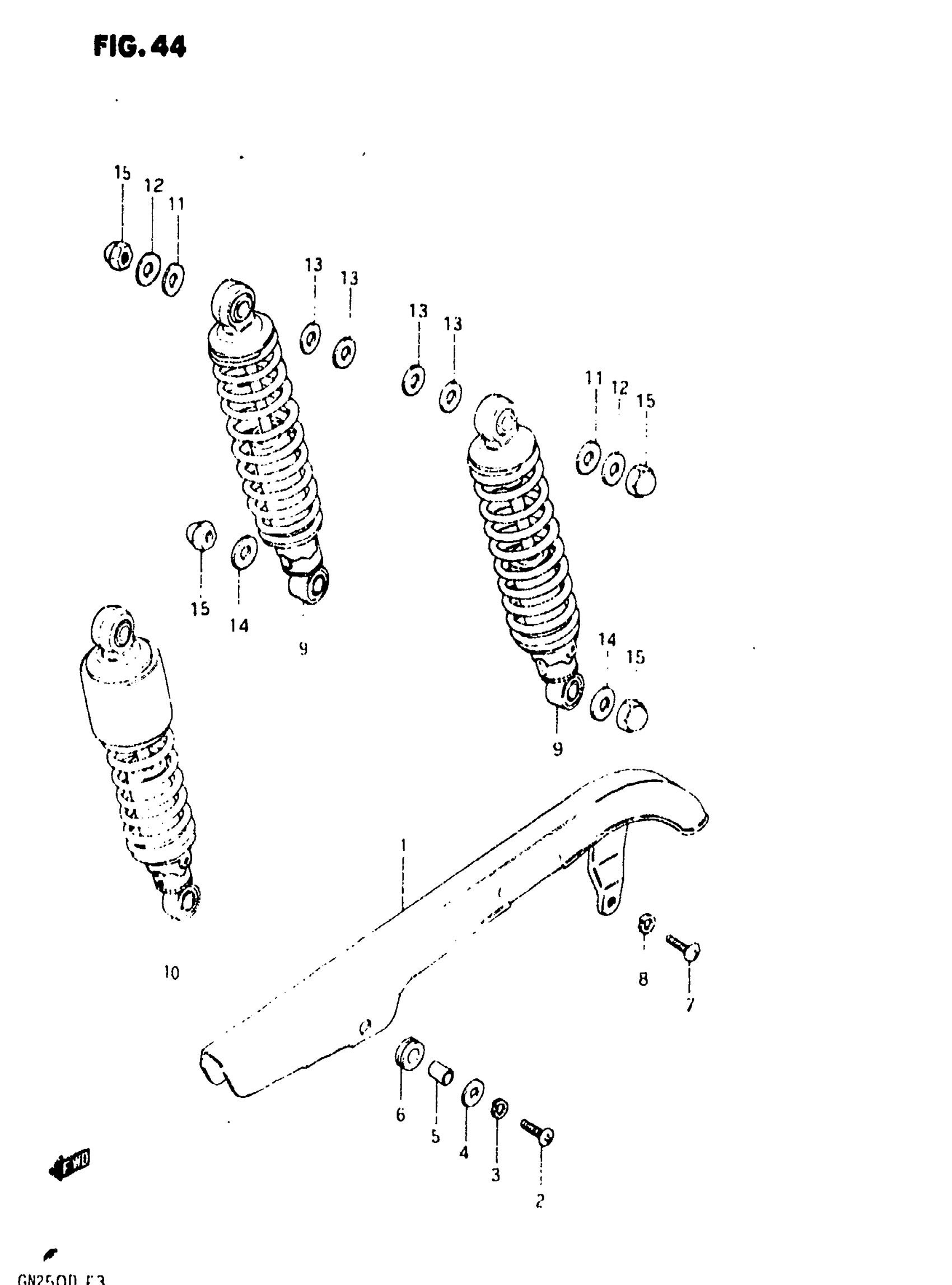

Suzuki GN250 (1983) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description
Price

1

CHAIN CASE

61310-38300

$136.45

2

SCREW This part replaces 02112-06168.

02112-06167

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

5

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

7

SCREW This part replaces 02112-06168.

02112-06167

$1.49

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

SHOCK ABSORBER, REAR | MODEL Z This part replaces 62100-38300.

62100-38310

Unavailable

10

SHOCK ABSORBER, REAR | MODEL D

62100-38310

Unavailable

11

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

12

WASHER This part replaces 09160-10033.

09160-10128-XC0

$2.62

13

WASHER This part replaces 08322-11128.

08322-01127

$1.84

14

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

15

NUT This part replaces 08313-11108.

08313-10107

$2.50
