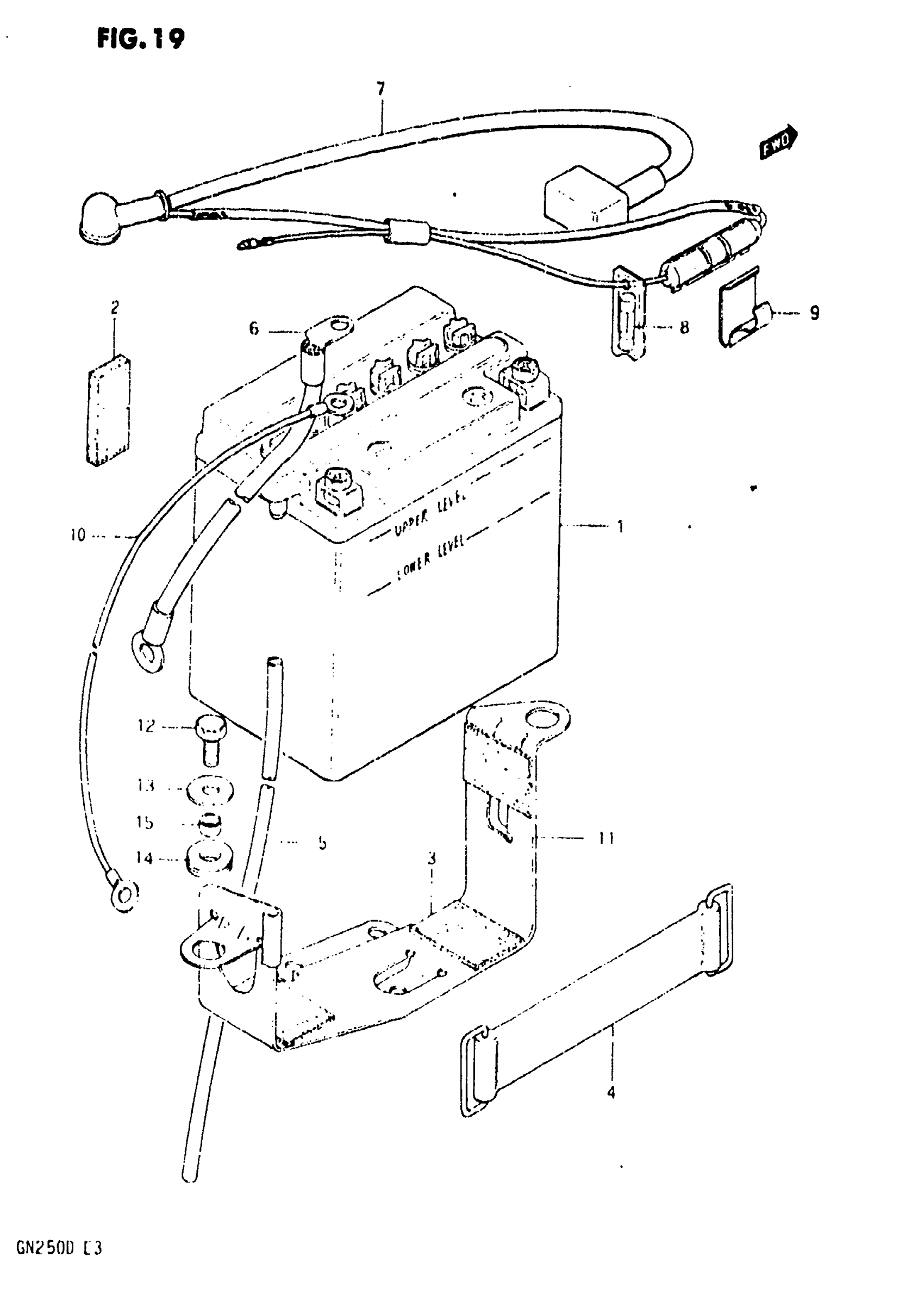

Suzuki GN250 (1983) BATTERY Diagram

#

Description
Price

1

BATTERY (12V, 10AH)

33610-44010

Unavailable

2

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

3

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

4

BAND

09462-00009

$7.63

5

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

6

LEAD WIRE, (-)

33850-49400

Unavailable

7

LEAD WIRE, (+) | Includes Item(s) 8

36740-38300

Unavailable

8

FUSE (15A)

09481-15001

$2.06

9

HOLDER, FUSE CASE

36791-46700

$5.50

10

LEAD WIRE, ENGINE (-) | MODEL Z This part replaces 36852-44600.

36851-02331

Unavailable

11

HOLDER, BATTERY This part replaces 41540-38300.

41540-38301

Unavailable

12

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

13

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER

09180-06038

$1.98
