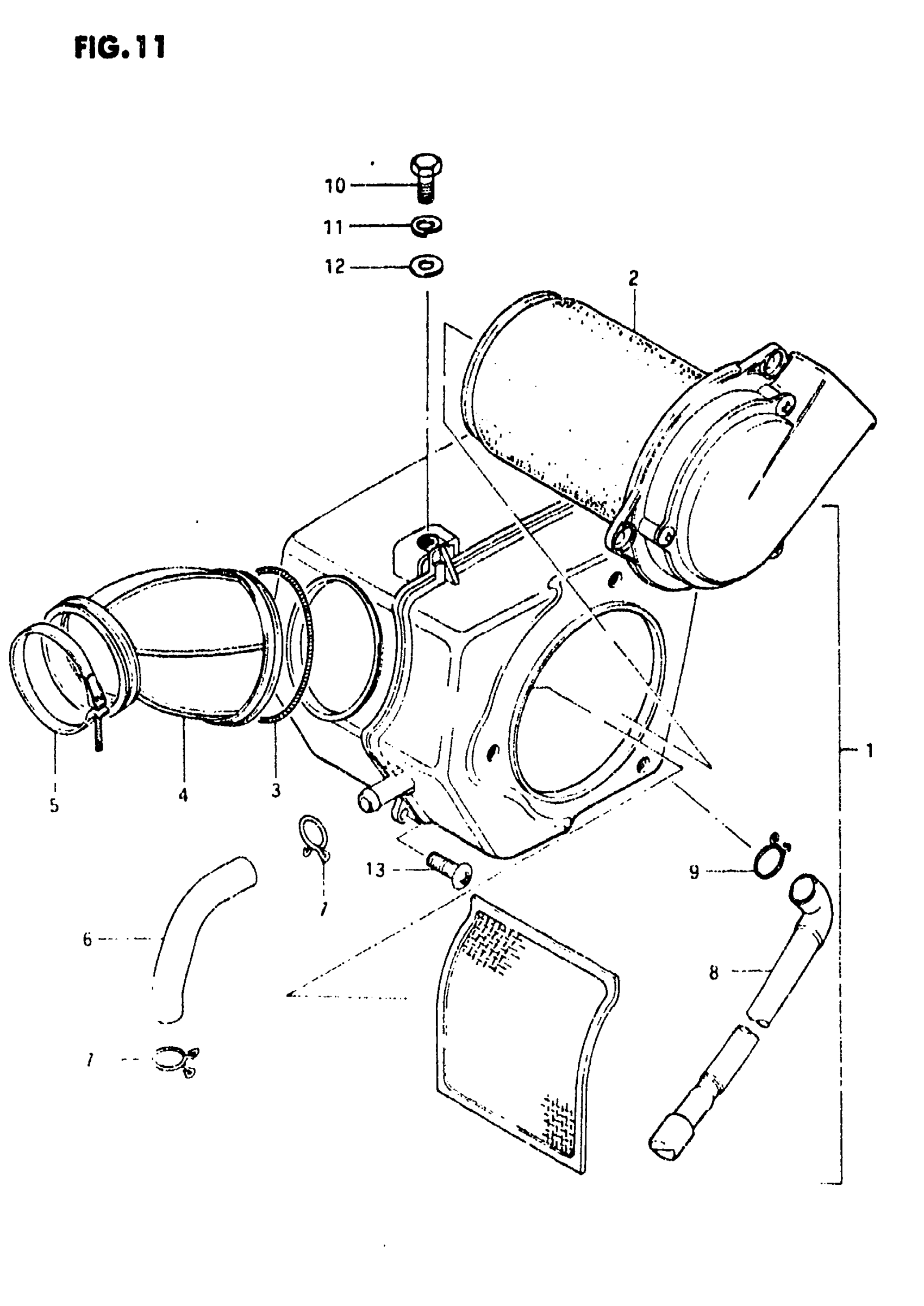

Suzuki GN250 (1983) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 13700-38300.

13700-25D00

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D; Includes Item(s) 2 - 9 This part replaces 13700-38301.

13700-25D00

Unavailable

2

FILTER This part replaces 13780-38300.

13780-38301

$32.75

3

CLAMP

13826-38300

$3.56

4

HOSE, OUTLET

13881-38300

Unavailable

5

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

6

TUBE,BREATHER This part replaces 13853-38300.

13853-38301

$9.73

7

CLIP This part replaces 13828-00020.

09401-14401

$2.53

8

TUBE,DRAIN This part replaces 13870-00200.

13870-21459

$23.68

9

CLIP

09401-14301

$2.35

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER This part replaces 09160-06007.

09160-06084

$1.78

13

SCREW

02142-06167

$1.49
