1983 Suzuki GN125Z Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1983 Suzuki GN125Z, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

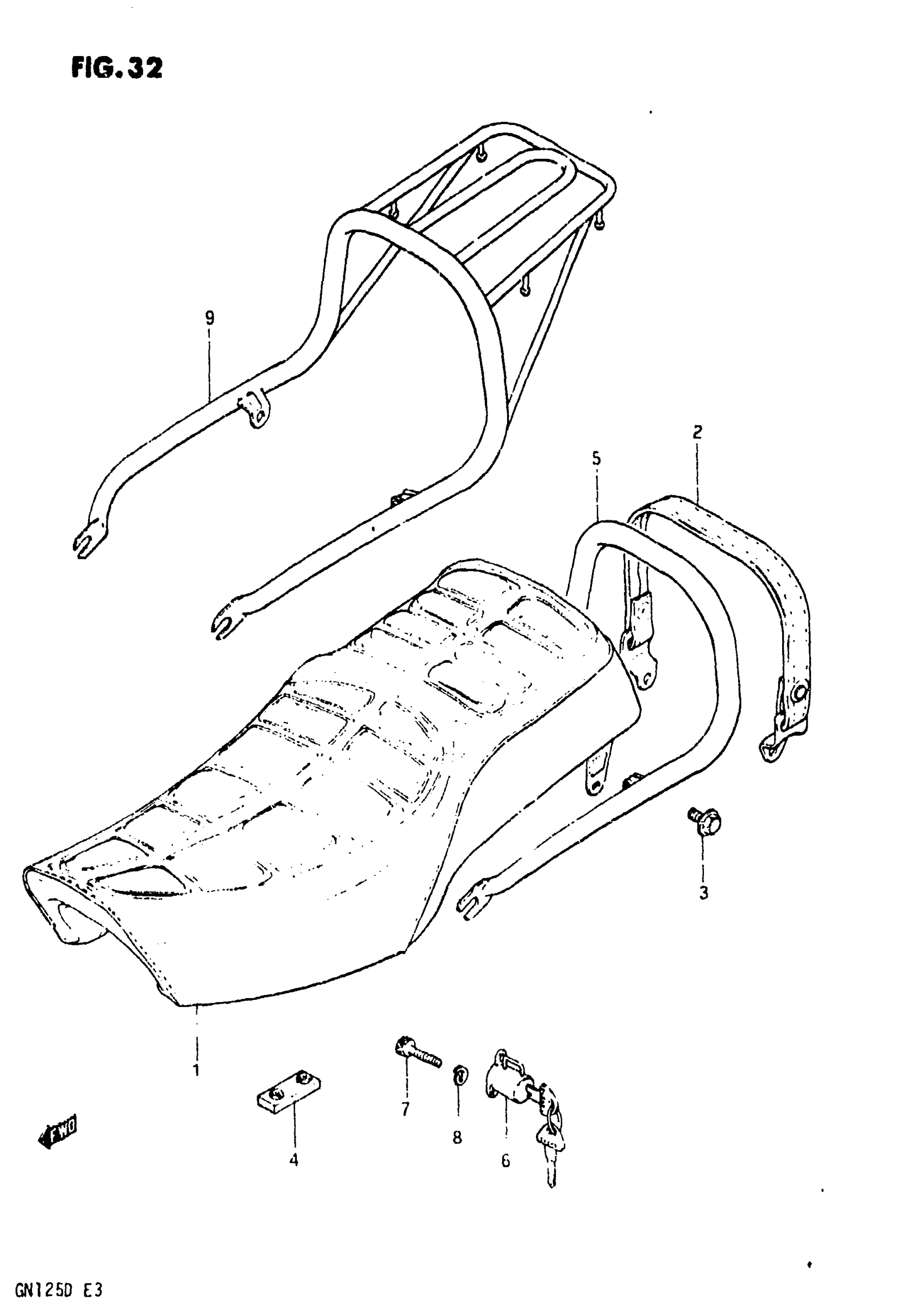

1983 Suzuki GN125Z Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) | MODEL Z This part replaces 45100-05310-47U.

45100-05321-48H

1
Out of stock

1

SEAT ASSY (BLACK) | MODEL D This part replaces 45100-05320-48H.

45100-05321-48H

1
Out of stock

2

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 45180-05300-47U.

45180-05300-48H

1
Out of stock

3

BOLT

01514-08165

—
Out of stock

4

CUSHION

09321-08009

6
Out of stock

5

HANDLE, PILLION RIDER

46210-05300

1
Out of stock

6

LOCK SET, HELMET This part replaces 95700-37400-KEY.

95700-37810

1
Out of stock

7

BOLT, NO.3 This part replaces 09106-06024.

07130-0610B

2
Out of stock

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

9

CARRIER, SPORTS | OPT

46310-05300

1
Out of stock
← Rear Fender Stand →
