Partiron

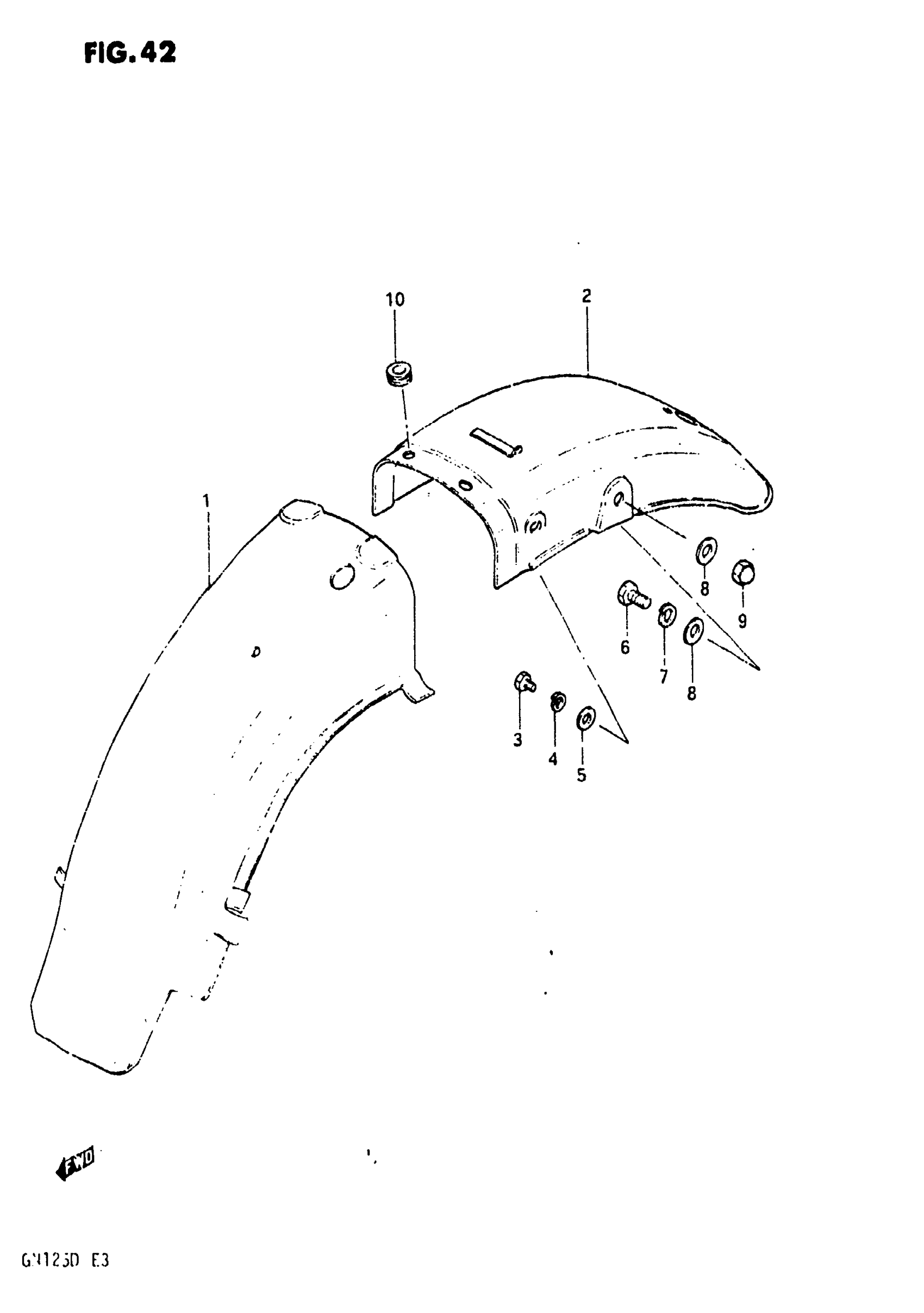

Suzuki GN125Z (1983) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER, FRONT | MODEL Z This part replaces 63112-05300.

63112-05302

Unavailable

1

BODY, REAR FENDER, FRONT | MODEL D This part replaces 63112-05301.

63112-05302

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 63110-38300.

63110-38303

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 63110-38301.

63110-38303

Unavailable

3

BOLT This part replaces 01107-06128.

01500-06127

$1.97

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

WASHER This part replaces 08322-11088.

08322-01087

$2.13

9

NUT This part replaces 08313-11088.

08313-10087

$2.28

10

CUSHION This part replaces 09320-05006.

09320-06504

$4.96
