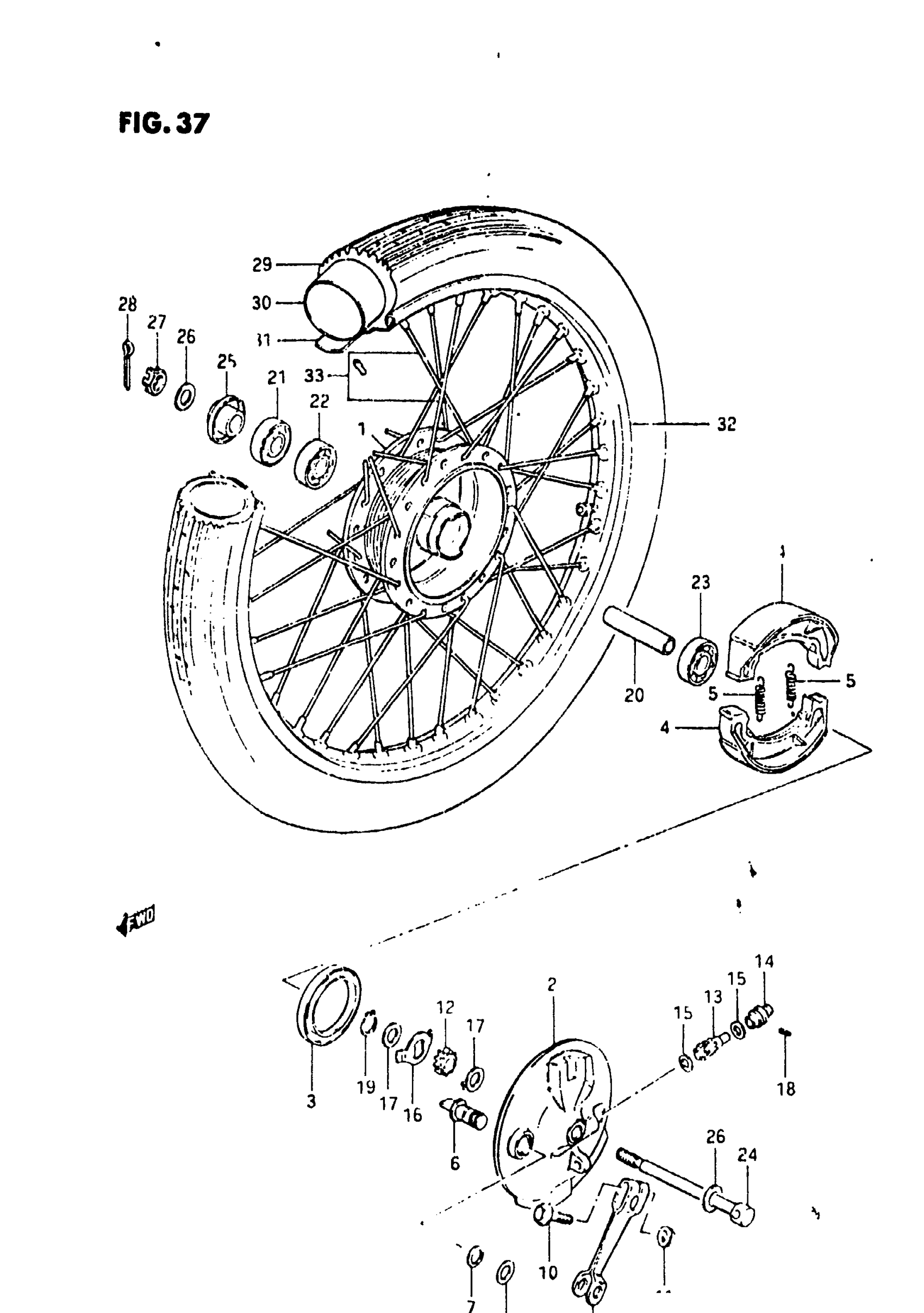

Suzuki GN125Z (1983) FRONT WHEEL Diagram

HUB, FRONT

54110-07602

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 54210-05300.

54210-05301

Unavailable

SEAL This part replaces 09285-48001.

09285-48002

$6.10

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

SPRING This part replaces 09443-07001.

09443-07025

$2.08

CAM, BRAKE This part replaces 54441-29303.

54441-29305

$20.02

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

WASHER | 14.5x22x1.6 This part replaces 09160-14001.

09160-14055

$2.39

LEVER, BRAKE

54451-46110

Unavailable

BOLT This part replaces 01517-06358.

01550-06357

$2.77

NUT This part replaces 08316-16066.

08316-1006B

$2.50

GEAR, SPEEDOMETER (NT:24)

54611-07002

Unavailable

PINION, SPEEDOMETER (NT:9) This part replaces 54621-39201.

54621-39202

Unavailable

BUSH

54632-01001

$12.80

WASHER,5.1X9X0. | 5.5x18x1.6 This part replaces 09160-05001.

09160-05001-A05

$1.87

DRIVER

54661-07000

$4.52

THRUST WASHER | 18.5x24x1

09160-18002

$2.38

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

CIRCLIP

08331-11189

Unavailable

SPACER, HUB BEARING | 12.6x19x47

09180-12032

Unavailable

SEAL,OIL(17X38X This part replaces 09284-18001.

09284-18006

$5.10

BEARING, RH

08113-63010

$19.57

B1 12X37X12 BEA This part replaces 08143-63017.

08143-6301B

$19.20

AXLE, FRONT This part replaces 54711-41100.

54711-41101

Unavailable

SPACER, RH

54740-41301

Unavailable

WASHER This part replaces 08322-11128.

08322-01127

$1.84

NUT This part replaces 08314-31128.

08314-3112A

$2.41

PIN This part replaces 04111-30308.

04111-3030A

$1.49

TIRE, FRONT 2.75-18 (IRC) | IRC This part replaces 55100-39310.

55100-12B00

Unavailable

TUBE ASSY,WHEEL This part replaces 55200-11601.

55200-26F01

$31.27

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

RIM, WHEEL (1.60x18)

55311-05300

$129.50

SPOKE SET, RR This part replaces 55320-05300.

65320-20120

$37.17
