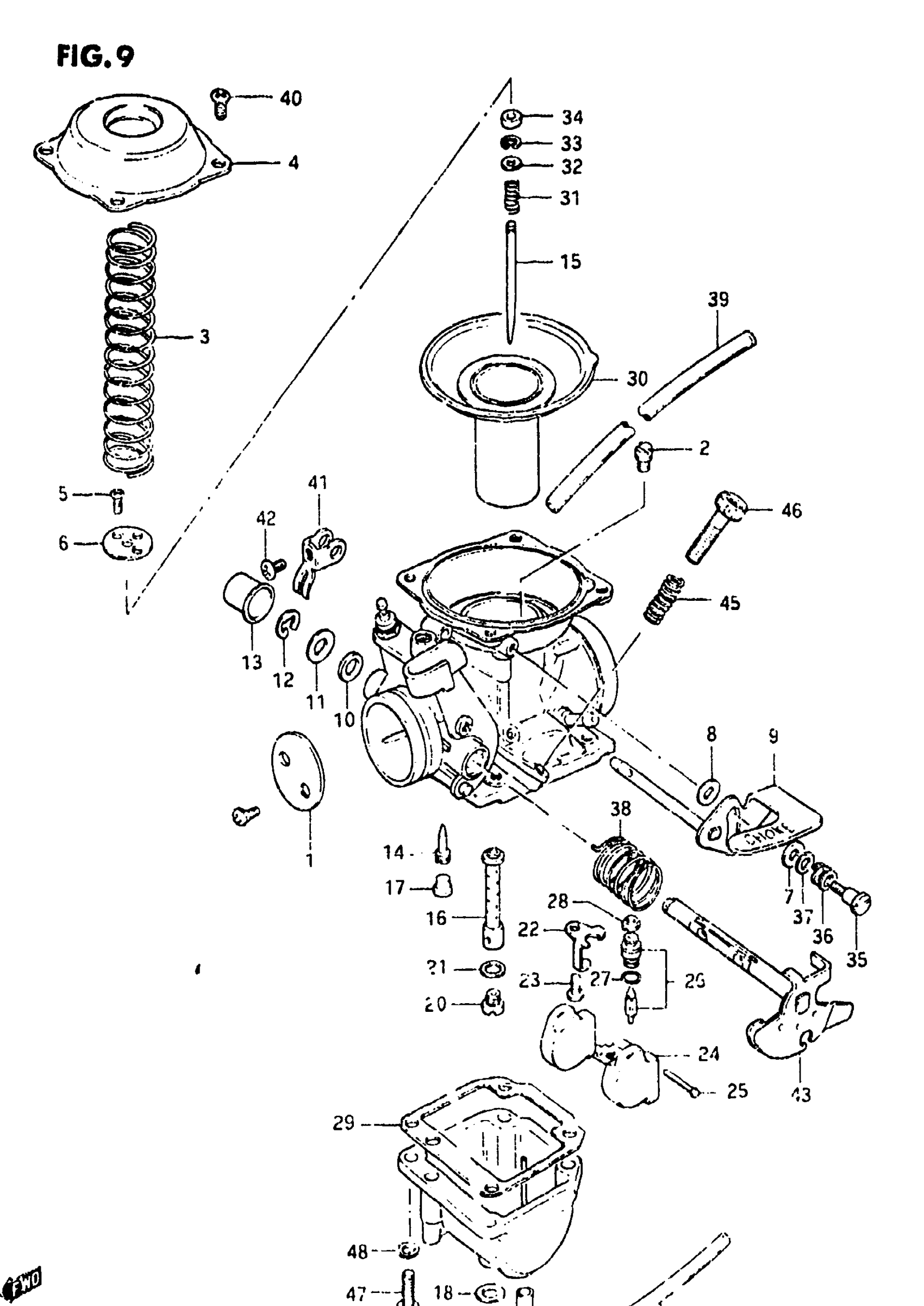

Suzuki GN125Z (1983) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 48 This part replaces 13200-05300.

13200-05304

Unavailable

1

THROTTLE.VALVE (125)

13551-33200

Unavailable

2

JET, PILOT AIR (180)

09491-36005

$11.83

3

SPRING, THROTTLE VALVE

13503-33200

Unavailable

4

COVER

13502-33210

Unavailable

5

SCREW This part replaces 13399-34010.

02112-3308A

$2.23

6

PLATE

13389-37400

$7.08

7

GASKET

13431-05300

Unavailable

8

WASHER This part replaces 13432-44110.

09160-04015

Unavailable

9

SHAFT ASSY, STARTER

13410-05300

Unavailable

10

SEAL This part replaces 13651-51010.

13651-51011

$2.20

11

GASKET

13557-47070

$3.59

12

E RING

13617-44080

$2.90

13

CAP

13578-47070

$4.52

14

JET, PILOT (35)

09492-35008

$9.32

15

NEEDLE, JET (4DZ42)

13383-05300

Unavailable

16

JET, NEEDLE (P-2)

09494-00370

$31.35

17

PLUG

13357-44080

$5.10

18

GASKET

13246-44080

$2.80

19

SCREW, DRAIN

13247-44080

$7.97

20

.JET (#102.5)

09491-20012

$11.38

21

WASHER

13382-03110

$2.80

22

PLATE

13373-11400

$7.05

23

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

24

FLOAT

13250-05300

$36.73

25

PIN

13254-92311

$2.07

26

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

27

O RING This part replaces 66263-99050.

13374-35C00

$5.99

28

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

29

GASKET, FLOAT CHAMBER This part replaces 13251-33200.

13251-20E20

$13.28

30

DIAPHRAGM ASSY This part replaces 13500-33202.

13500-053D1

$209.00

31

SPRING

13388-44030

$8.12

32

WASHER

13382-44030

$3.71

33

E RING

13394-10010

$5.45

34

RING

13387-47010

$7.22

35

SCREW

13438-33110

$6.38

36

SPRING

13426-43010

Unavailable

37

WASHER This part replaces 13432-44120.

13615-43010

$3.25

38

SPRING

13573-37100

Unavailable

39

HOSE,5X10X600 | 5x8x300 This part replaces 13683-05300.

44421-13ER0

$10.06

40

SCREW This part replaces 02112-05088.

02112-05087

$1.49

41

LEVER

13422-05300

Unavailable

42

SCREW

13605-31210

$7.37

43

SHAFT ASSY, THROTTLE

13550-05300

Unavailable

44

HOSE,5X10X600 | 3.5x6.5x350 This part replaces 13683-05310.

44421-13ER0

$10.06

45

SPRING

13268-37420

$5.32

46

ADJUSTER This part replaces 13267-37100.

13267-25D00

$14.20

47

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

48

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84
