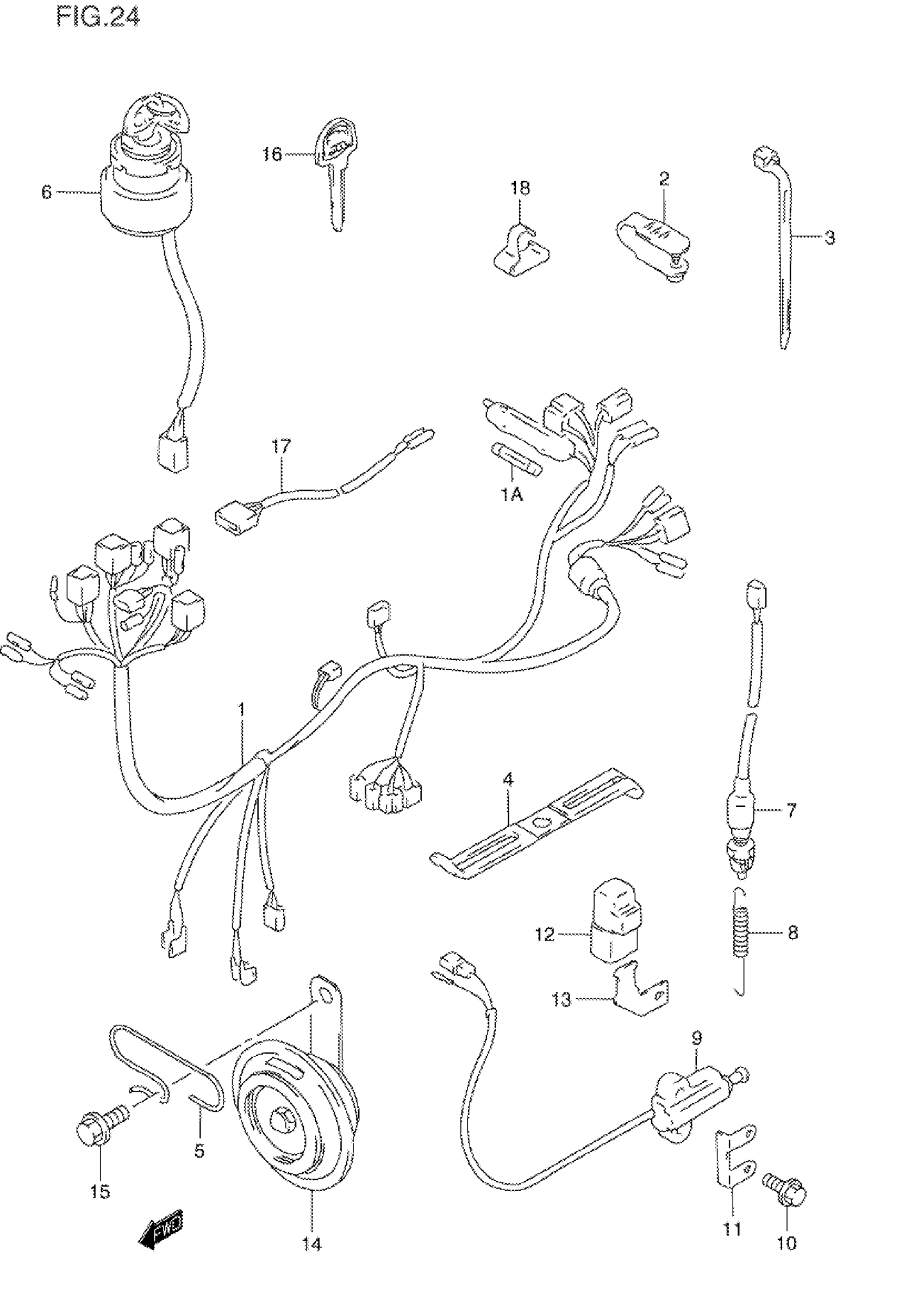

Suzuki GN125EV (1997) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | Includes Item(s) 1A

36610-053C0

Unavailable

1A

FUSE (15A)

09481-15001

$2.06

2

CLAMP

09407-05403

$2.38

3

CLAMP (L:125)

09407-14403

$2.26

3

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

3

CLAMP (L:250)

09407-25401

$4.66

4

CLAMP, CLUTCH CABLE

36651-05301

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

Unavailable

6

SWITCH ASSY, IGNITION

37110-33021

Unavailable

7

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

8

SPRING

09443-06078

Unavailable

9

SWITCH ASSY,SID This part replaces 37840-11X50.

37840-11X51

$82.02

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

PROTECTOR

37841-14D00

Unavailable

12

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

13

BRACKET, RELAY

38741-05300

Unavailable

14

HORN

38500-38361

$50.10

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

16

KEY, BLANK | OPT

37146-49300

$16.01

17

LEAD WIRE, CLUTCH SWITCH

36852-05300

Unavailable

18

HOLDER, FUSE CASE

36791-46700

$5.50
