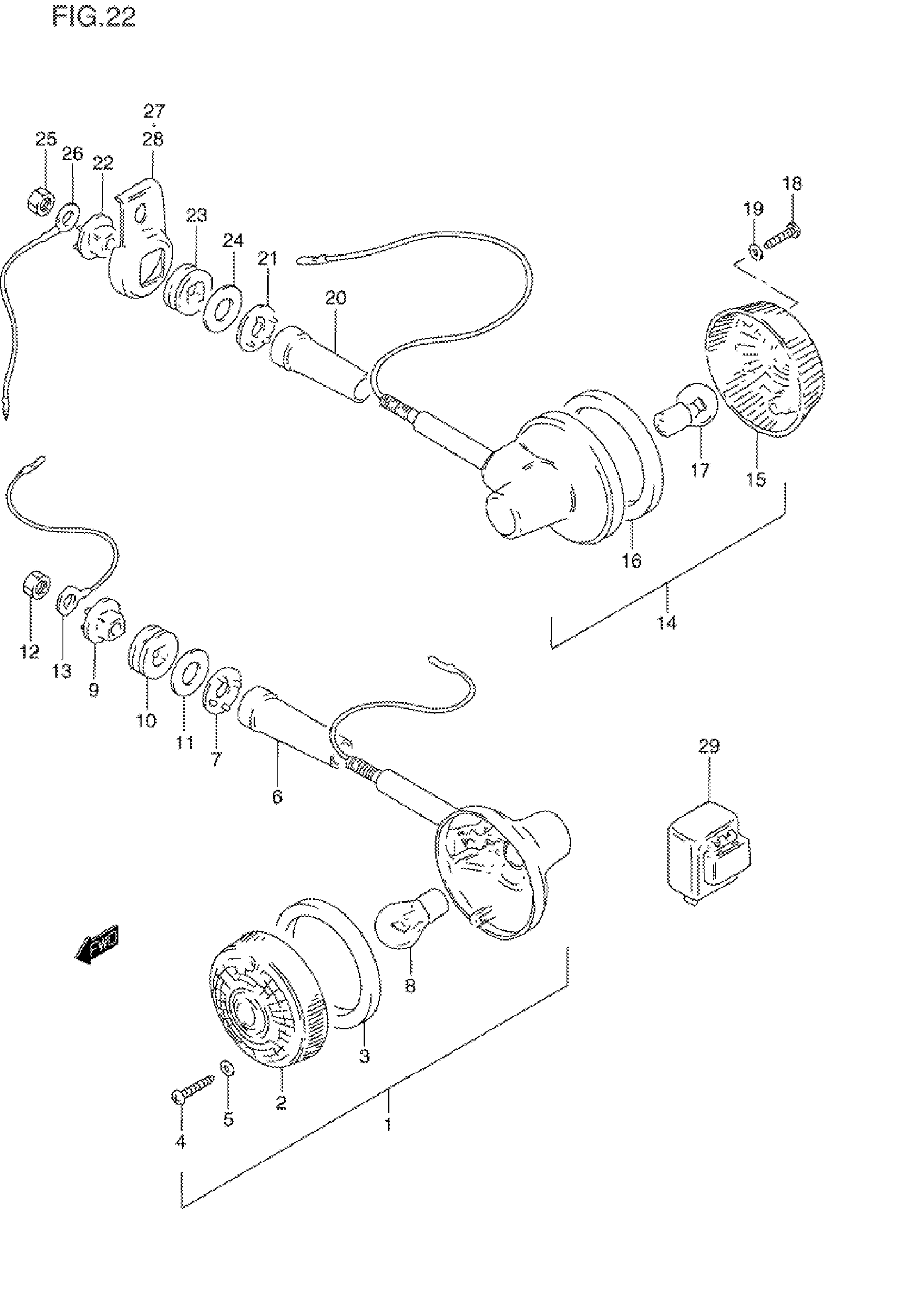

Suzuki GN125EV (1997) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP, FRONT TURN SIGNAL | Includes Item(s) 2 - 7

35603-47230-999

Unavailable

2

LENS

35612-28620

$8.98

3

GASKET

35613-28620

$4.55

4

SCREW This part replaces 03211-04208.

03211-04207

$1.49

5

GASKET

35627-43010

$2.28

6

COVER, STAY

35617-47230

Unavailable

7

CUSHION

35668-47290

Unavailable

8

BULB (12V,23W)

09471-12006

$3.98

9

SPACER

35695-32401

$4.52

10

RR TURN SIG CUS This part replaces 35690-32200.

35690-32201

$6.37

11

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

12

NUT

08310-00107

$2.19

13

LEAD WIRE, EARTH

36660-33000

$4.52

14

LAMP, REAR TURN SIGNAL | Includes Item(s) 15 - 21

35603-45230

Unavailable

15

LENS

35612-28620

$8.98

16

GASKET

35613-28620

$4.55

17

BULB (12V,23W)

09471-12006

$3.98

18

SCREW This part replaces 03211-04208.

03211-04207

$1.49

19

GASKET

35627-43010

$2.28

20

COVER, STAY

35657-45230

Unavailable

21

CUSHION

35668-47290

Unavailable

22

SPACER

35695-32401

$4.52

23

CUSHION

09320-15004

$4.77

24

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

25

NUT

08310-00107

$2.19

26

LEAD WIRE, EARTH

36862-44000

$5.50

27

BRACKET, REAR RH

35621-38300

Unavailable

28

BRACKET, REAR LH

35641-38300

Unavailable

29

RELAY, TURN SIGNAL

38610-31X50

$80.15
