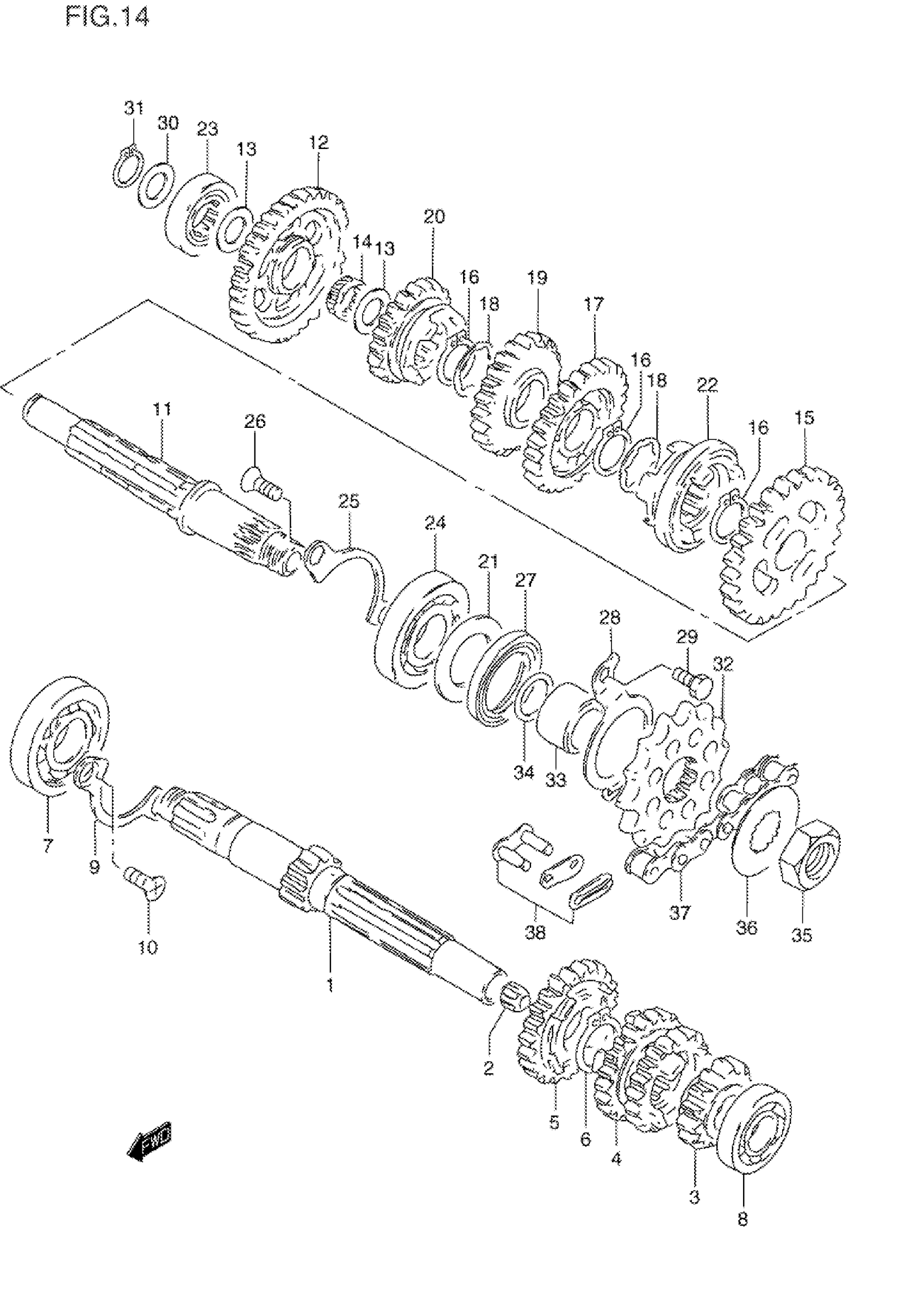

Suzuki GN125EV (1997) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:11)

24120-05810

Unavailable

2

BUSH

24125-38201

$6.38

3

GEAR, 2ND DRIVE (NT:14) This part replaces 24221-05300.

24221-05301

Unavailable

4

GEAR, 3RD & 4TH DRIVEN This part replaces 24231-05202.

24231-05203

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 24251-05202.

24251-05203

Unavailable

6

CIRCLIP

09380-20009

$2.20

7

BEARING, RH (20X47X14)

09262-20069

$23.28

8

BEARING, LH

08123-60027

$23.62

9

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

10

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

11

DRIVESHAFT

24130-05300

Unavailable

12

GEAR, 1ST DRIVEN (NT:33) This part replaces 24311-05200.

24311-05202

Unavailable

13

WASHER

08211-15251

$1.67

14

BEARING (15X19X7.8)

09263-15023

Unavailable

15

GEAR, 2ND DRIVEN (NT:26) This part replaces 24320-05201.

24320-05202

Unavailable

16

CIRCLIP

09380-20009

$2.20

17

GEAR, 3RD DRIVEN (NT:26) This part replaces 24331-05201.

24331-05203

Unavailable

18

WASHER

09167-20011

$2.31

19

GEAR, 4TH DRIVEN (NT:23) This part replaces 24341-05201.

24341-05203

Unavailable

20

NO DESCRIPTION AVAILABLE This part replaces 24351-05201.

24351-05202

Unavailable

21

WASHER

24359-05200

Unavailable

22

WHEEL, SLIDING DOG

24421-05300

Unavailable

23

BEARING, RH (15X33X12)

09263-15024

Unavailable

24

BEARING, LH (20X47X14)

09262-20069

$23.28

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

Unavailable

26

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

27

OIL SEAL, LH

09283-27010

$10.30

28

NO DESCRIPTION AVAILABLE This part replaces 24751-05201.

24751-05210

Unavailable

29

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

30

WASHER

08211-15201

$2.38

31

CIRCLIP This part replaces 08331-31156.

08331-3115A

$2.25

32

SPROCKET (NT:14)

27511-41310

$23.98

33

SPACER

27531-05200

$18.02

34

O RING (D:2.40,ID:19)

09280-19005

$2.33

35

NUT

09140-16017

$6.97

36

WASHER (18X38X0.8)

09167-20012

$2.44

37

CHAIN, DRIVE (RK428FDZ,124LE) | L:124->114; Includes Item(s) 38

27600-29B20-124

Unavailable

38

JOINT, CHAIN (RK)

27620-40220

$11.07
