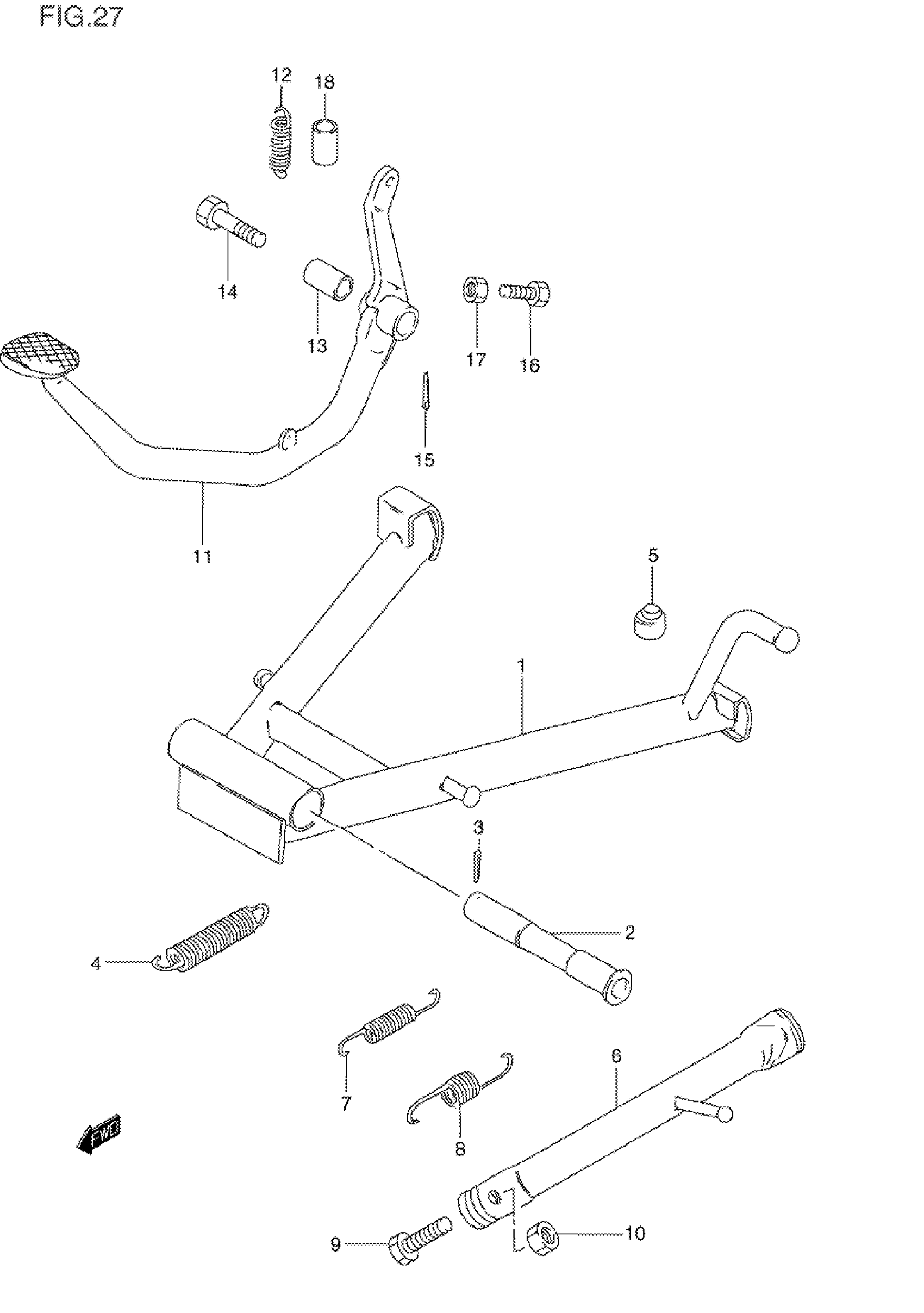

Suzuki GN125EV (1997) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-05303

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 42211-36504.

42211-49F00

Unavailable

3

PIN This part replaces 04111-30308.

04111-3030A

$1.49

4

SPRING, CENTER This part replaces 09443-18006.

09443-18006-XC0

$7.82

5

CUSHION

09321-10001

$2.61

6

STAND, PROP

42310-053F0

Unavailable

7

SPRING, INNER

09443-12025

Unavailable

8

SPRING, OUTER

09443-19006

Unavailable

9

BOLT

09111-10047

$4.11

10

NUT

09159-10027

$3.10

11

PEDAL,BRAKE This part replaces 43110-05301.

43110-05302

$49.95

12

SPRING

09443-14015

$2.89

13

SPACER

43231-05302

Unavailable

14

BOLT

09116-10121

Unavailable

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

BOLT

09100-06009

$1.91

17

NUT This part replaces 08310-00063.

08310-0006A

$1.84

18

TUBE, SPRING

43261-17C00

$6.12
