1997 Suzuki GN125EV Rear Fender Diagram

← All diagrams

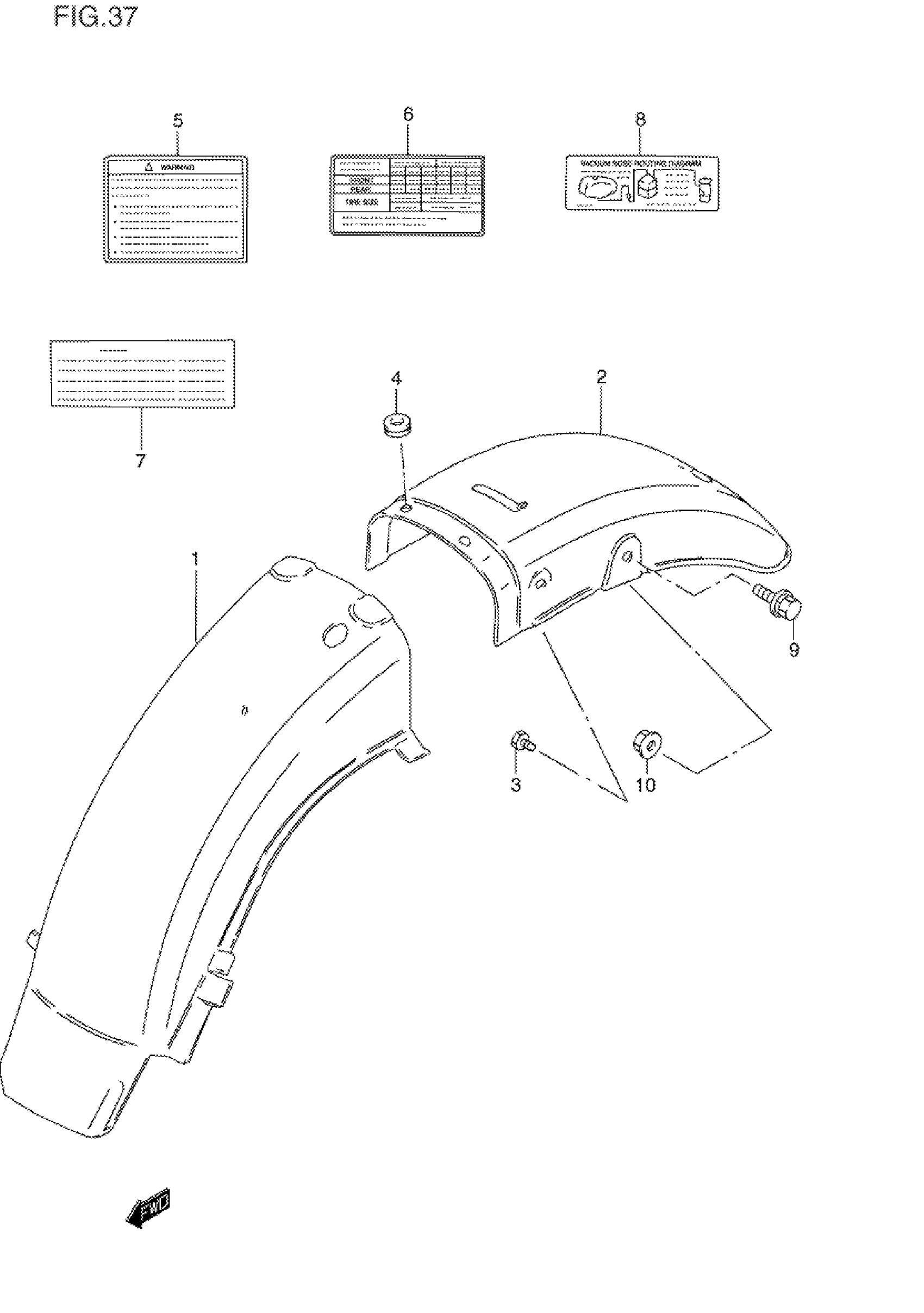

Find the part on the Rear Fender diagram for your 1997 Suzuki GN125EV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GN125EV Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER, FRONT

63112-05302

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 63110-38302.

63110-38303

1
Out of stock

3

BOLT This part replaces 01580-06163.

01580-0616A

2
Out of stock

4

CUSHION

09320-06504

2
Out of stock

5

LABEL,GENERAL W This part replaces 68319-33E00.

68319-33E02

1
Out of stock

6

LABEL, TIRE AIR PRESSURE

68332-05320

1
Out of stock

7

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

1
Out of stock

8

LABEL, PIPING DIAGRAM | E33

68387-38300

1
Out of stock

9

BOLT, REAR

01580-08257

2

$4.08

In stock

10

NUT This part replaces 08316-10083.

08316-1008B

2
Out of stock

11

MANUAL, OWNER'S | DRAWING NOT SHOWN

99011-05351-03A

1
Out of stock
