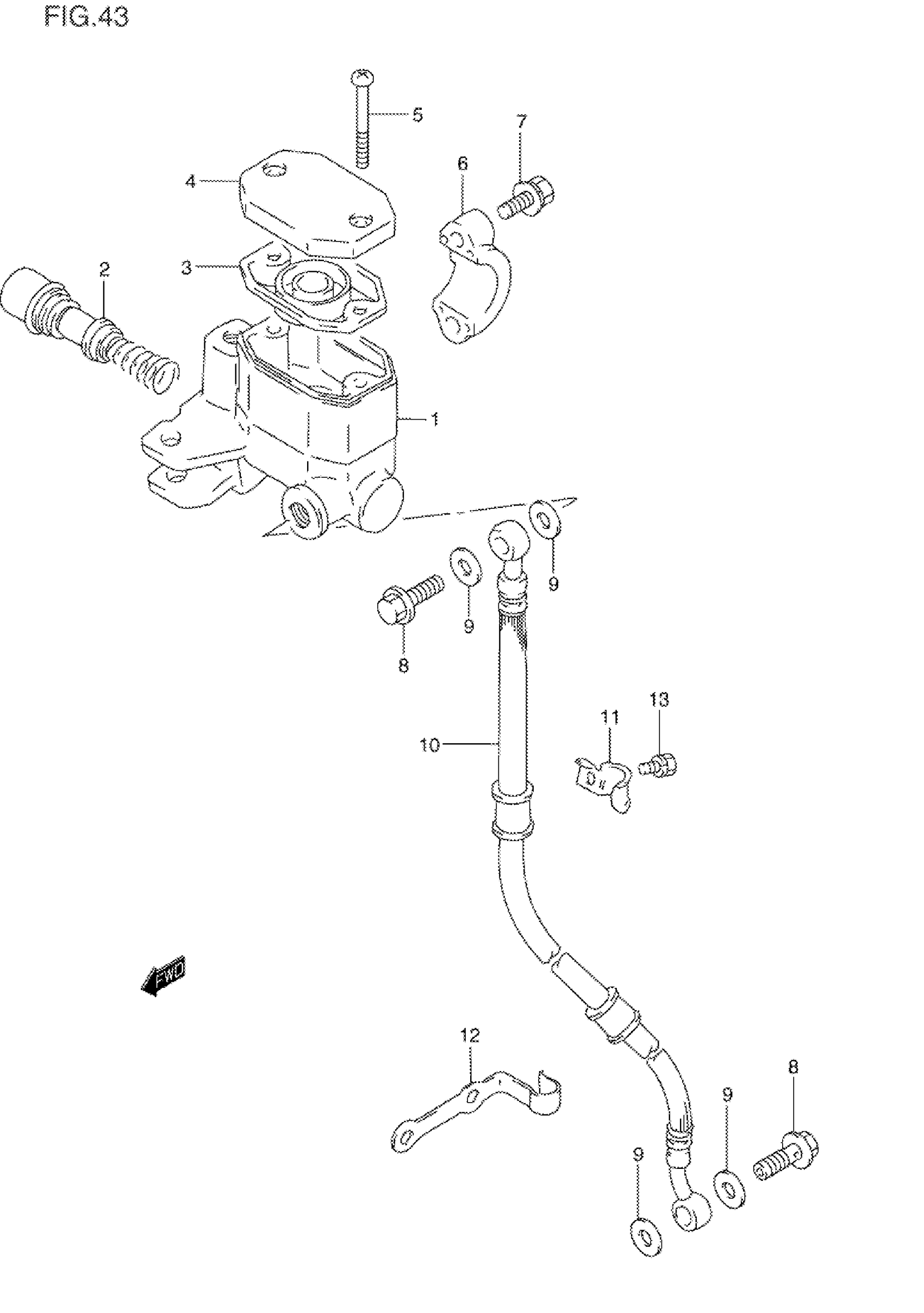

Suzuki GN125EV (1997) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 7

59600-05360

$303.63

2

PISTON / CUP SET

59600-04810

$45.20

3

DIAPHRAGM

59667-36500

Unavailable

4

CAP

59669-36510

Unavailable

5

SCREW

59691-36500

Unavailable

6

HOLDER

59671-05300

Unavailable

7

BOLT HOLDER SET

59675-19C00

$4.02

8

UNION This part replaces 09360-10039.

09360-10061

$6.43

9

WASHER (10X15X1.5)

09161-10009

$1.84

10

HOSE, BRAKE

59480-05350

Unavailable

11

CLAMP, BRAKE HOSE

59246-39100

Unavailable

12

CLAMP, BRAKE HOSE

59268-11300

Unavailable

13

BOLT This part replaces 01570-06123.

01570-0612A

$2.63
