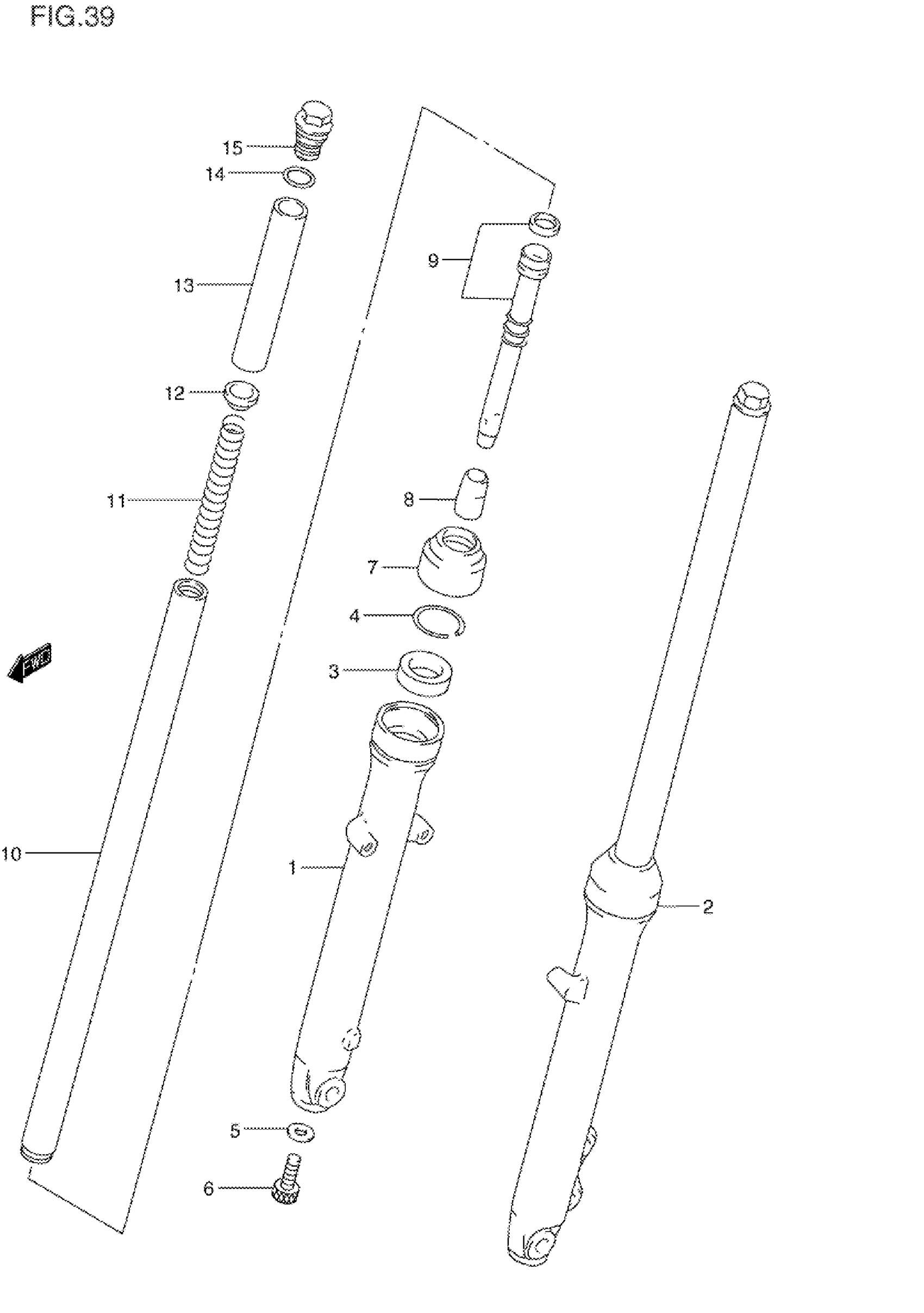

Suzuki GN125EV (1997) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-05301

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 15

51104-05301

Unavailable

1

TUBE, OUTER RH

51130-05300

Unavailable

2

TUBE, OUTER LH

51140-05300

Unavailable

3

OIL SEAL

51153-05300

$15.05

4

RING, STOPPER

51156-41603

Unavailable

5

GASKET

51148-41310

$2.26

6

BOLT

51147-16510

$4.34

7

DUST SEAL

51173-41603

$8.15

8

PIECE, OIL LOCK

51195-36220

Unavailable

9

CYLINDER

51146-05300

Unavailable

10

TUBE, INNER

51110-05300

Unavailable

11

SPRING

51171-05300

Unavailable

12

GUIDE, SPRING

51172-18630

Unavailable

13

SPACER

51176-05300

Unavailable

14

O RING This part replaces 51181-29400.

51181-29401

$3.37

15

CAP

51351-41603

Unavailable
