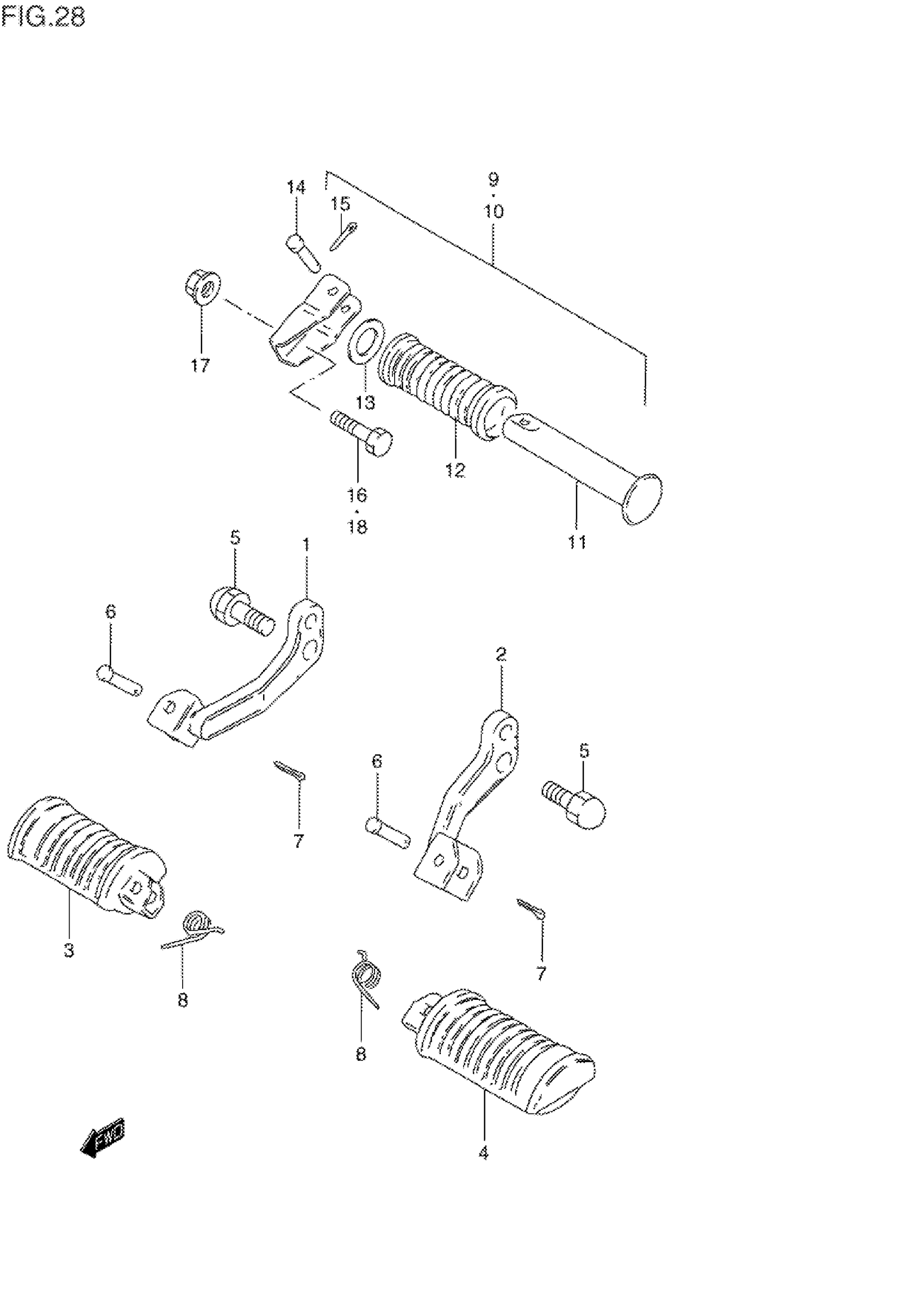

Suzuki GN125EV (1997) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-05330

Unavailable

2

BAR, FOOTREST LH

43520-05330

Unavailable

3

RUBBER,PILLION This part replaces 43550-37301.

43550-37310

$25.47

4

FOOTREST LH This part replaces 43560-37301.

43560-37310

$32.98

5

BOLT

01550-12257

Unavailable

6

PIN

09200-08002

$2.05

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

8

SPRING

09448-14012

$3.04

9

FOOTREST ASSY, PILLION RH

43600-05301

$31.70

10

FOOTREST ASSY, PILLION LH | Includes Item(s) 11 - 15

43700-05301

Unavailable

11

BAR, PILLION FOOTREST

43610-03001

$6.52

12

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

13

WASHER This part replaces 09160-19006.

09160-19024

$2.65

14

PIN

09200-06033

$2.63

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

16

BOLT This part replaces 01550-10453.

01550-1045B

$4.77

17

NUT This part replaces 08316-10103.

08316-1010B

$2.66

18

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

$3.05
