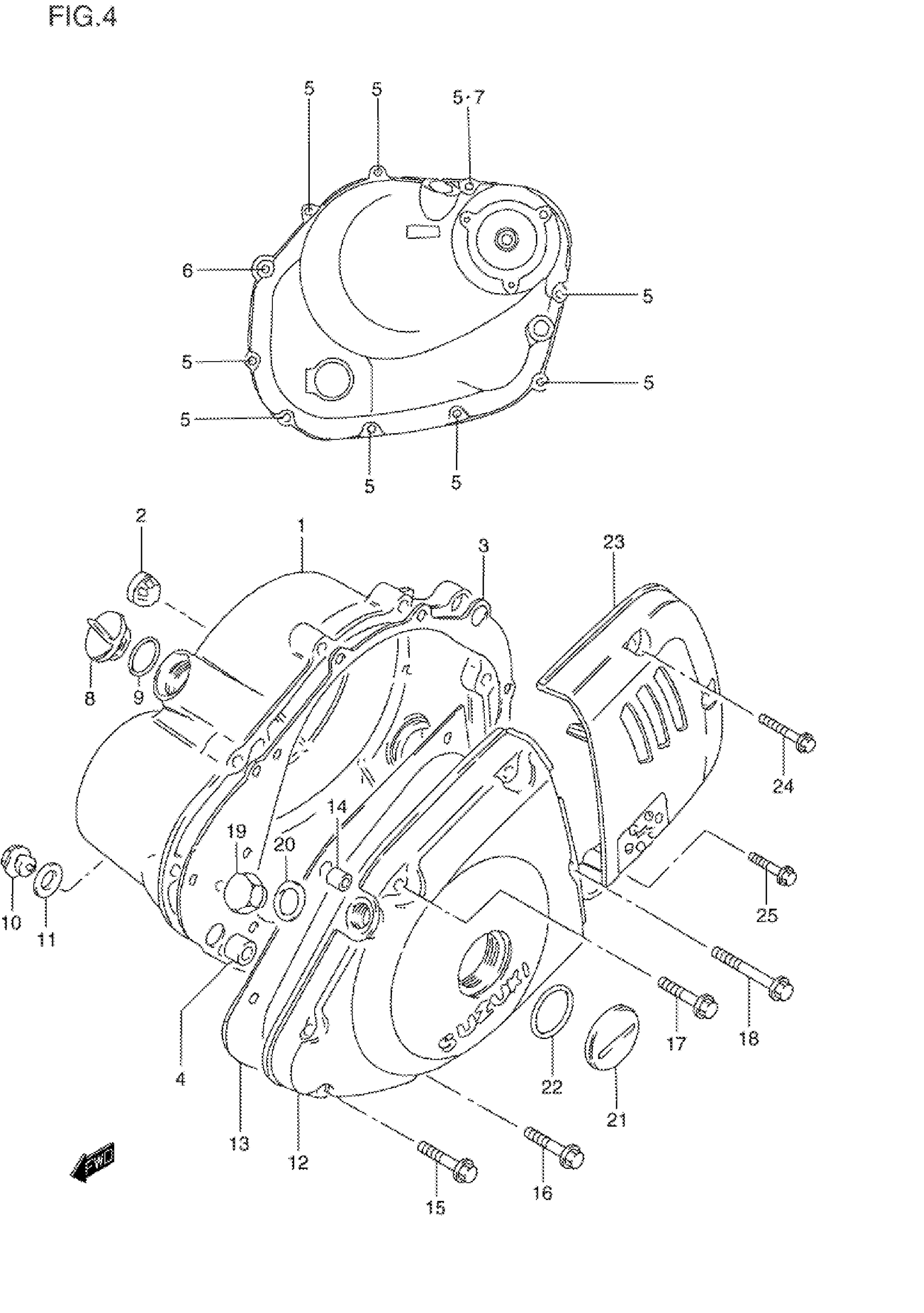

Suzuki GN125EV (1997) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-05303

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER

11482-05311

$23.63

4

PIN

04211-13189

$2.19

5

BOLT (6X30)

01547-06307

$2.03

6

BOLT (6X45)

01547-06457

$2.32

7

GASKET

09168-06024

$2.20

8

PLUG, OIL FILLER

09259-20007

$7.53

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

10

PLUG, OIL CHECK

09247-14026

$3.76

11

GASKET

09168-14002

$2.26

12

COVER, MAGNETO

11351-05302

Unavailable

13

GASKET, MAGNETO COVER | ~F.NO.V2100402 This part replaces 11483-05311.

11483-05312

$10.68

13

GASKET, MAGNETO COVER | F.NO.V2100403~

11483-05312

$10.68

14

PIN

04211-09129

$1.65

15

BOLT (6X30)

01547-06307

$2.03

16

BOLT (6X35)

01547-06357

$2.03

17

BOLT (6X40)

01547-06407

$2.32

18

BOLT (6X50)

01547-06507

$2.41

19

PLUG, T.D.C

09247-12104

$2.73

20

GASKET

09168-12002

$1.59

21

PLUG

09259-26011

$11.03

22

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

23

COVER, ENGINE SPROCKET

11361-05301

Unavailable

24

BOLT

01547-05357

Unavailable

25

BOLT

01547-05257

$2.19
