Description

Price

1

YB7-A BATTERY(Y This part replaces 33610-10360.

33610-10311

$100.82

2

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

3

PROTECTOR | CUT AS REQUIRED PROFILE

33651-37000

$4.48

4

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

33651-37000

$4.48

5

HOSE,BATTERY EX | L:780->450 This part replaces 33680-16A10.

33680-16A11

$6.78

6

BAND

09462-00020

Unavailable

7

WIRE, BATTERY PLUS LEAD (+) | Includes Item(s) 8 - 9

33820-053A0

Unavailable

8

CAP, STARTER RELAY

31861-10D00

Unavailable

9

CAP, BATTERY PLUS

33624-43500

$5.50

10

LEAD WIRE, BATTERY (-)

33860-05550

Unavailable

11

PLATE, BATTERY CAUTION

33690-05360

Unavailable

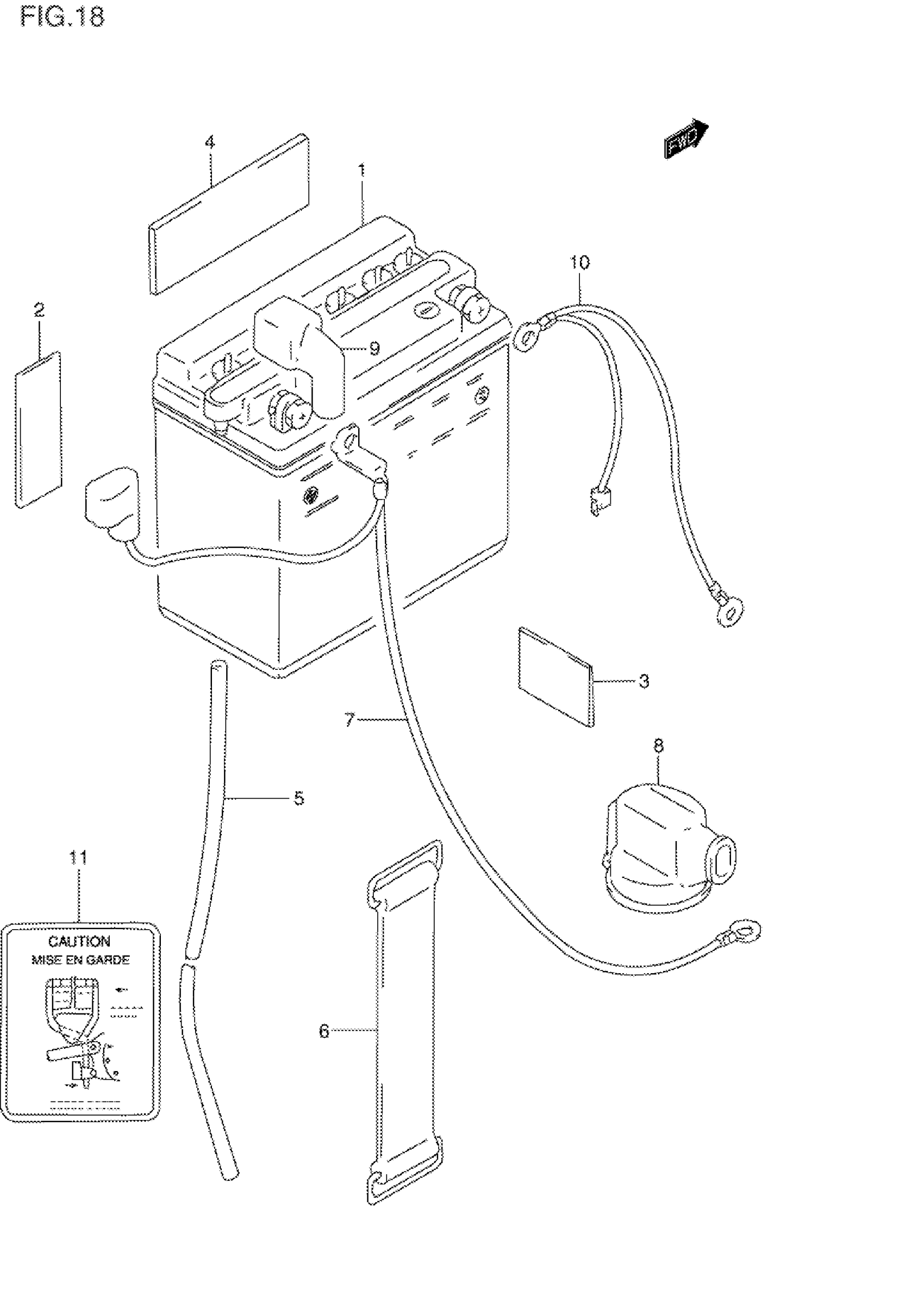

Suzuki GN125EV (1997) BATTERY Diagram

YB7-A BATTERY(Y This part replaces 33610-10360.

PROTECTOR | CUT AS REQUIRED PROFILE

PROTECTOR | CUT AS REQUIRED PROFILE

CUSHION, REAR FENDER REAR This part replaces 33652-28000.

HOSE,BATTERY EX | L:780->450 This part replaces 33680-16A10.

BAND

WIRE, BATTERY PLUS LEAD (+) | Includes Item(s) 8 - 9

CAP, STARTER RELAY

CAP, BATTERY PLUS

LEAD WIRE, BATTERY (-)

PLATE, BATTERY CAUTION
